Basic Explanation And Regulations For Marine Navigation Light

The marine navigation light, also known as a marine signal light, is used to show the state of ship sailing or parking, which can indicate the navigation direction at night and the size of the ships. It is an important basis for ships to adopt avoidance measures and effectively avoid collisions among ships, especially at night or in poor visibility.

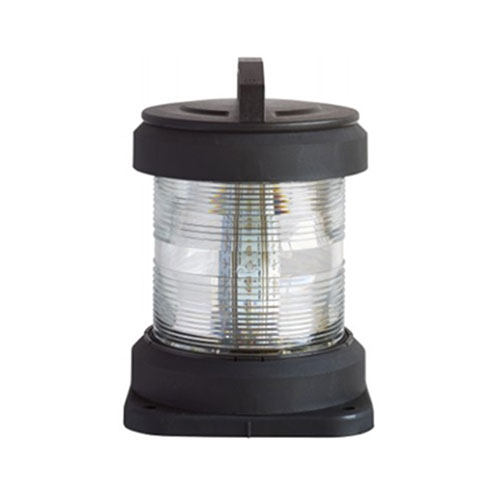

marine navigation light

The Categories Of Marine Navigation Light

The ship navigation signal system is an important part of the ship’s security and it’s an important lighting system to ensure the safety of night boating. According to the international regulations for preventing collisions at sea, the navigation signal equipment must be installed on the ship with ship navigation lights, ship signal lights and foghorn. The navigation lighting system includes headlight, sidelight, stern light, towing light, anchor light, yellow all-round flashing light, maneuvering signal light and flashing light.


The ship headlight is white light placed above the centerline of a ship, showing uninterrupted in the 180 degree horizontal arc.

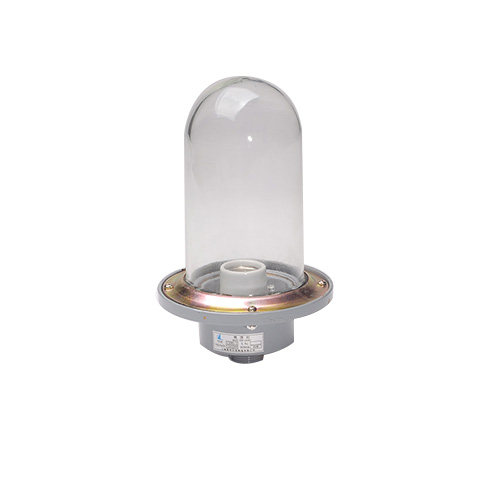

marine headlight


The sidelight generally refers to the green light on the starboard and the red light on the portside. Each light is showing uninterrupted in a 112. 5 degree horizontal arc.

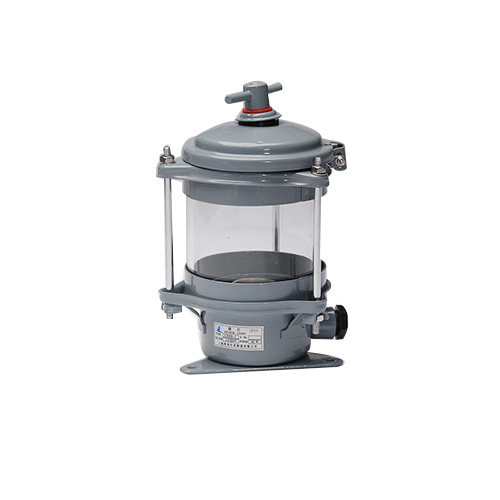

boat navigation light

Stern light

The marine stern light is the white light which is installed on the place as close to the stern as possible.

Towing light

The boat towing light refers to the yellow light placed as close as possible to the stern, showing uninterrupted in the 135 degree horizontal arc.

Anchor light

The anchor light is a type of boat signal light, which is displaying uninterrupted in a 360 degree horizontal arc.

anchor light

Flashing light

A marine flashing light is a signal light that is flashing with the frequency of 120 or above 120 per minute.

flashing signal light

Navigation light indicator

It is an indicator centralized control of the on-off of the navigation lights and a device that can give an alarm when the navigation lights fail.

The Installation Requirements Of Marine Navigation Light

The specific installation position, lighting angle and the brightness for the navigation light, all have special requirements. The irregular use or failure of the navigation light will transmit the error signal and caused huge obstacles for the collision prevention.

Masthead light

It is installed above on the mast of a ship or above on the centerline, showing uninterrupted in the 225 degree horizontal arc.


It is installed on the left and right sides of the highest boat deck. The screen of sidelight facing the light surface should be coated with the berlin black. The height of the screen is at least equal to the height of the lamp. The boat which has a length of more than 80 meters, should install red, green sidelight on the bow, stern.

Stern light

The boat stern light should be installed in the middle of the stern. The height of the light should be kept horizontally with the sidelight as possible, but can’t be higher than the height of the sidelight.


The marine headlight is placed in the bow of the pusher barge and the height can’t be higher than the headlight.

Red-green flashing light

It is the left red, right green flash lighting installed above the sidelight and its flashing frequency is 50 to 70 per minute. The boats with a length of less than 12 meters can also adopt a water torch instead of red and green flashing lights and should keep light bright with clear color.

Anchor light

The marine anchor light is installed on the top of the mast with all-around flashing.
Each provision concerning the navigation light must be observed from sunset to sunrise. The signal lights can also be displayed in the situation that the visibility is poor during the day. At the time of navigation light displaying, the lighting which confuses or weakens the display performance of the signal light, can’t be allowed to display.

LED marine navigation light

The Function Requirements Of Marine Navigation Light

  1. The navigation light should be waterproof and the lamp holder should have a structure that prevents its own loose. It should adopt a two-filament bulb. The control box should be in the cab and the switch of the control box should have an instruction to explain its use. The cable of the navigation light is fastened with the complete lampshade & bulb and the good & reliable ground.
  2. The switch should be set on the navigation light control box, used to convert the power supply. Each navigation light should be powered by a separate branch that is placed close to the control box installed in the cab and should adopt the switch and fuse which are installed in the control box for control and protection of each insulation of these branches.
  3. The navigation light control box should be powered directly from the main distribution board and emergency distribution board.
  4. There should be an automatic indicator that can make an auditory or a visual alarm signal at each navigation light and there should be some measurements which are adopted to prevent the navigation light go out due to the signal light failure. The auditory and visual alarms for the failure of the navigation light control box should be provided.
double-deck marine navigation light


The ship navigation light is an important indicator of the mutual identification for ship types and navigation status. The article has combed the key requirements and regulations for navigation lights and signal lights, giving an explanation for the various types and functions of the boat navigation light.
