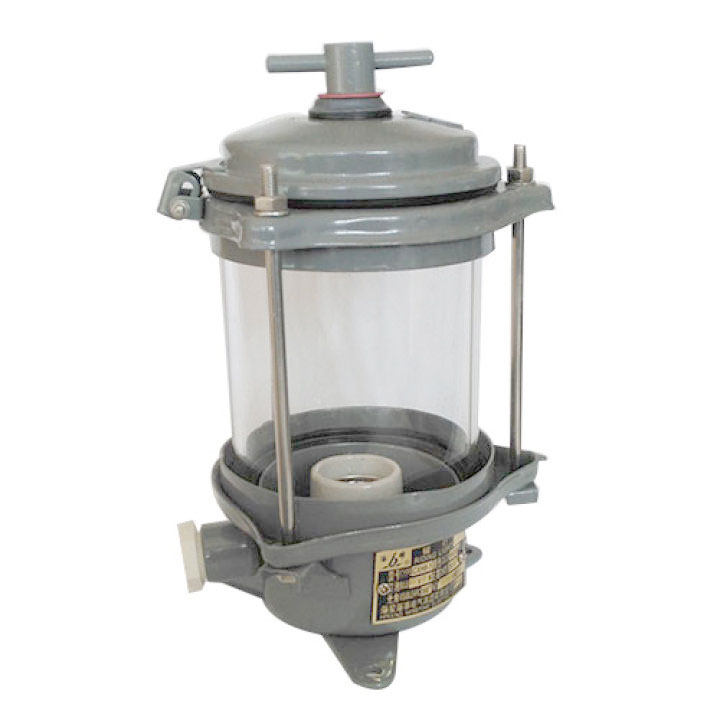

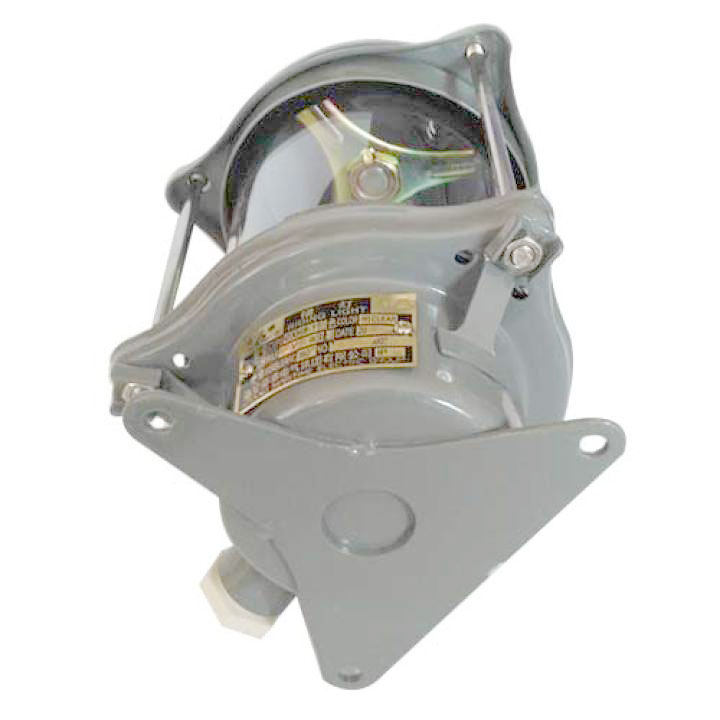

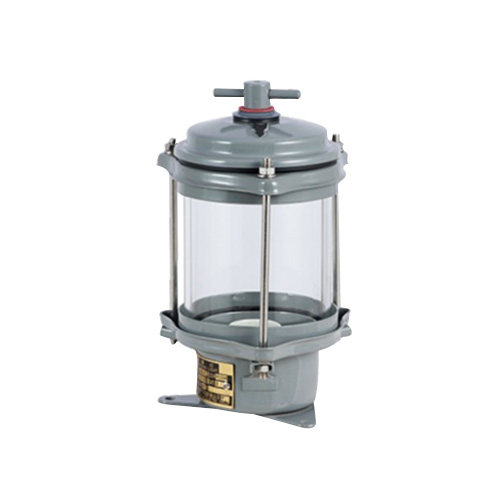

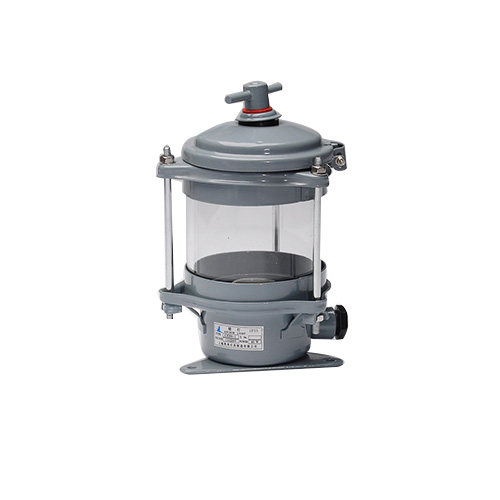

CXH8-1 Type Boat Anchor Light


  • With bulb 220V/40W, 110V/40W, 24V/15W, 24V/30W;
  • Level arc 360°, white color.
  • Suitable for cables with outside diameter of 10mm~12mm.
  • The marine anchor light’s shell is made of good quality steel, the lamp shade adopts good quality glass.

CXH8-1 Type Boat Anchor Light

This type of anchor light can be used as the marine signal light and take the ground as a lamp signal. The light is visible when a boat is anchored at night and is a key factor in making nighttime boating both easier and safer. The shell is made of good quality steel and the lampshade adopts good quality glass. The shell structure has fine seal performance and is convenient to install and remove. It is installed at the top of the mast for this purpose is increasingly in the form of LED light, which has less of a drain on the battery. No matter what size or type of boat, the anchor light is always necessary.

Adopt standard:

1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995.

Name

Anchor light

Anchor light

Type

CXH8-1

CXH8-2

Visibility

3n.m

2n.m

Level arc

360°

360°

Lamp Holder

E27

B15d

Bulb

220V/40W  110V/40W

24V/15W   24V/30W

Cable outside diameter

10~12mm

10~12mm

Protection class

IP55

IP55

Material

Steel

Aluminium

Color

White

White

Weight

1.7kg

0.75kg

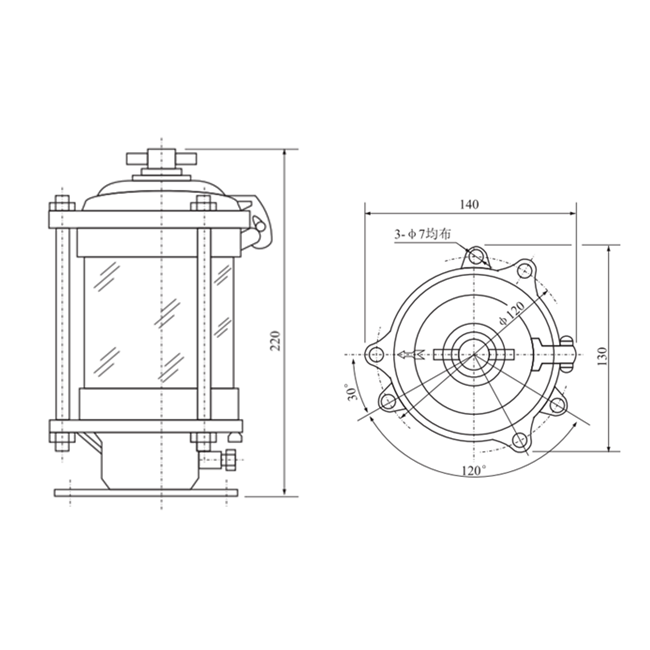

Drawings of CXH8-1 Type Boat Anchor Light
