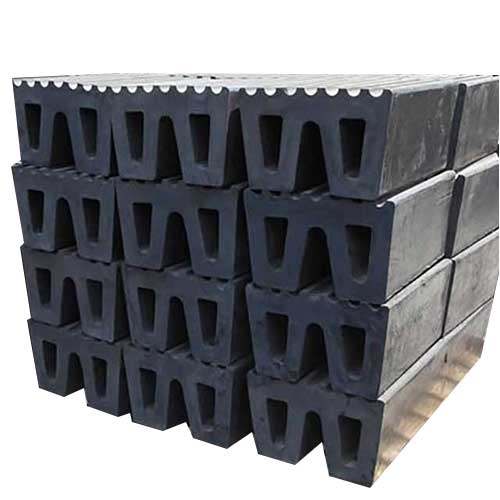

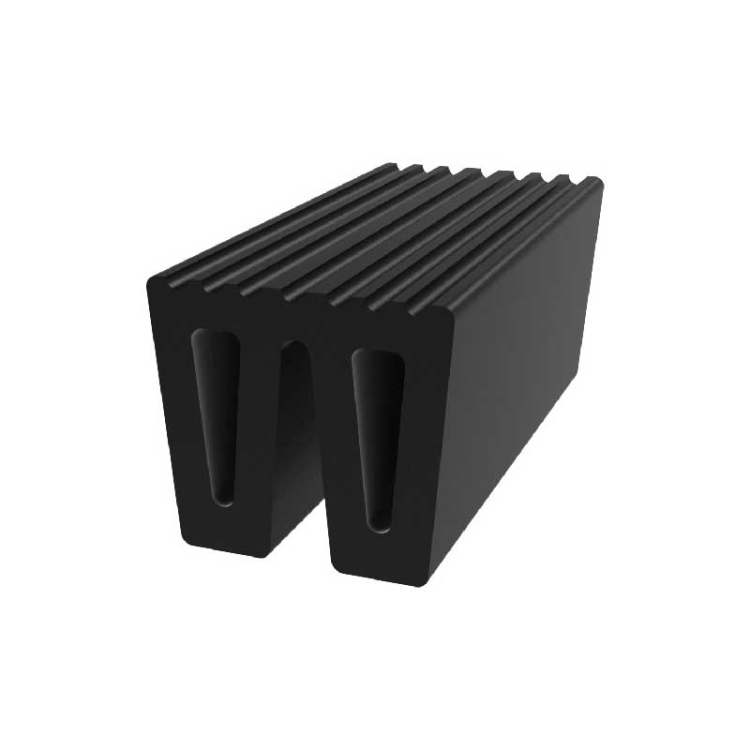

W Type Rubber Fender

W Type Rubber Fender

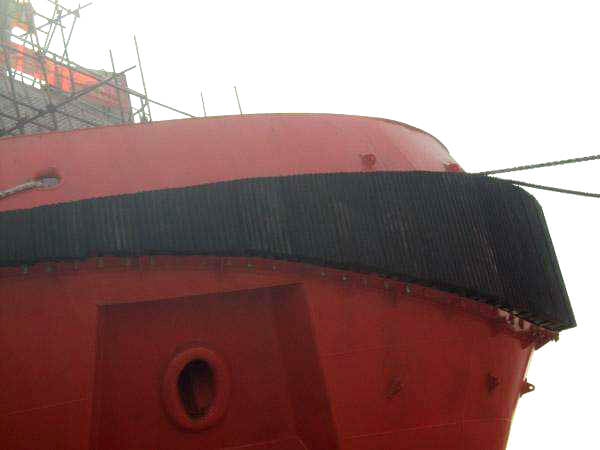

W fender is one of the most successful rubber fenders in the world nowadays. It has a unique ‘open bore’ design, which makes installation much more simple. The type of rubber fenders offers an excellent alternative to square fenders. A complete “ready to install” fender kit including connecting plugs, end plugs, drill holes as well as numbered stern and bow fender sets are available. The flexible legs allow the fender to be curved around most hull shapes. The fenders are designed for use in extreme conditions and to absorb excessive bumps and knocks. This type of fender is one of the most popular tug fender designs and is very suitable for application on the bow and stern of tugs, workboats and icebreakers. With two flexible legs also allow for easy installation of the fender with a large or small radius by means of guide rods.YSmarines provides W fender at the most competitive price.

Features Of W Type Rubber Fender

● Extreme-duty design
● Open bore for easy installation
● Twin-leg attachment
● Grooved for extra grip
● Fits around tight bends

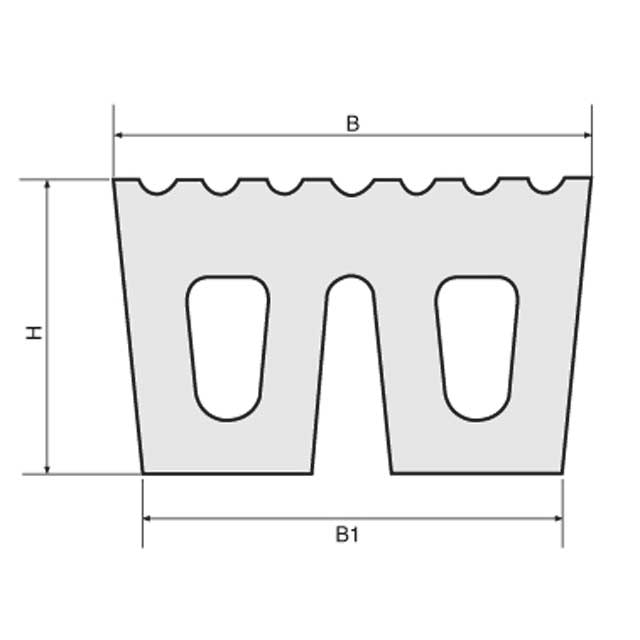

Specifications Of W Fender

Model	B(mm)	B1(mm)	H(mm)	L(mm)
W480	480	426	300	600-2400
W500	500	420	330	600-2000
W500	500	420	450	600-2400
W600	600	560	300	600-2000

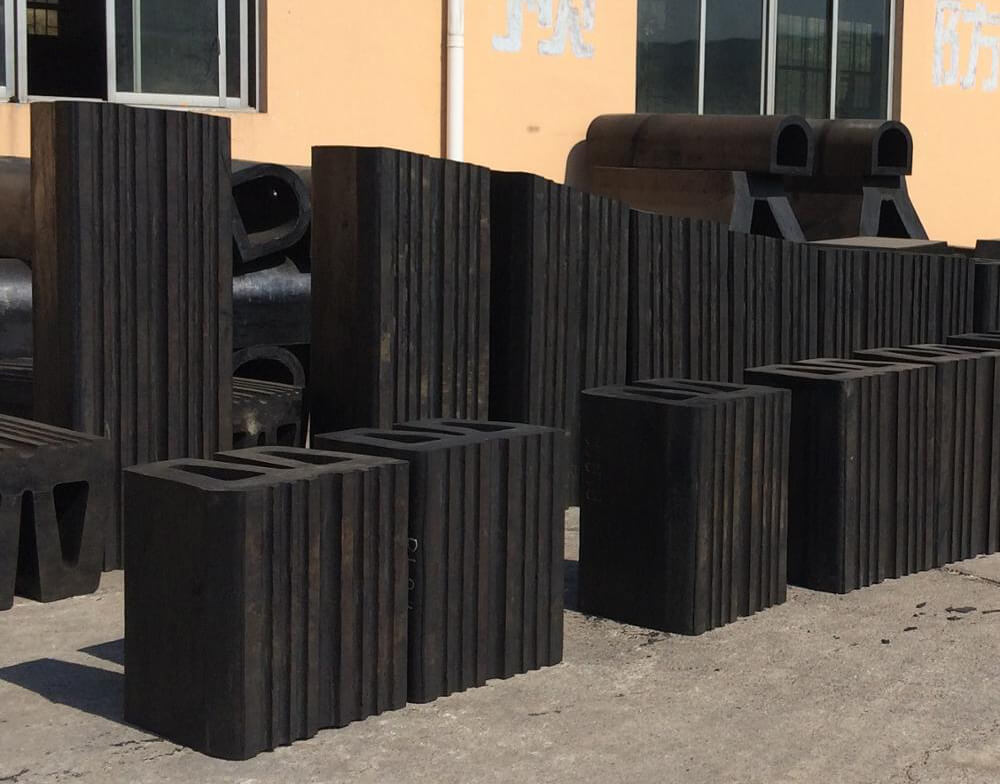

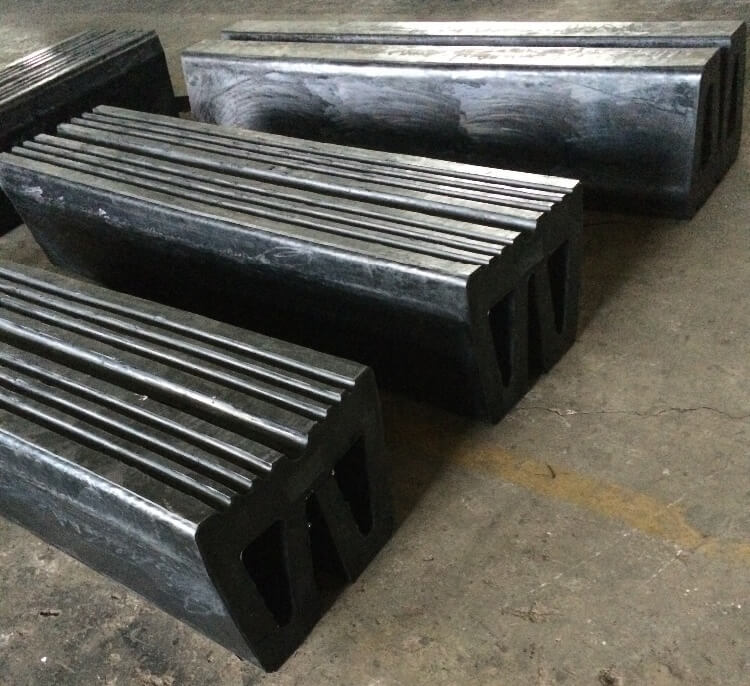

Workshop Of W Rubber Fender

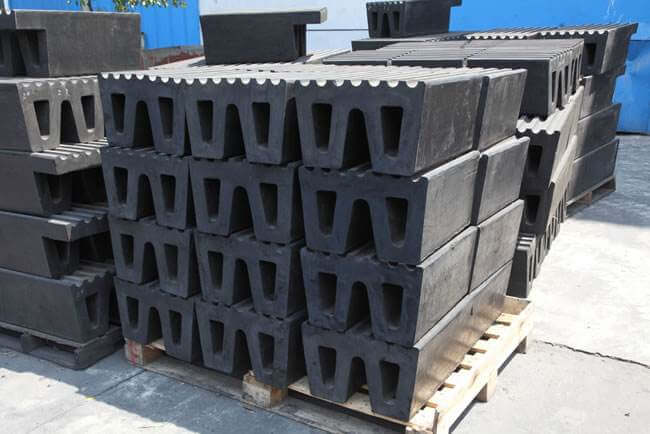

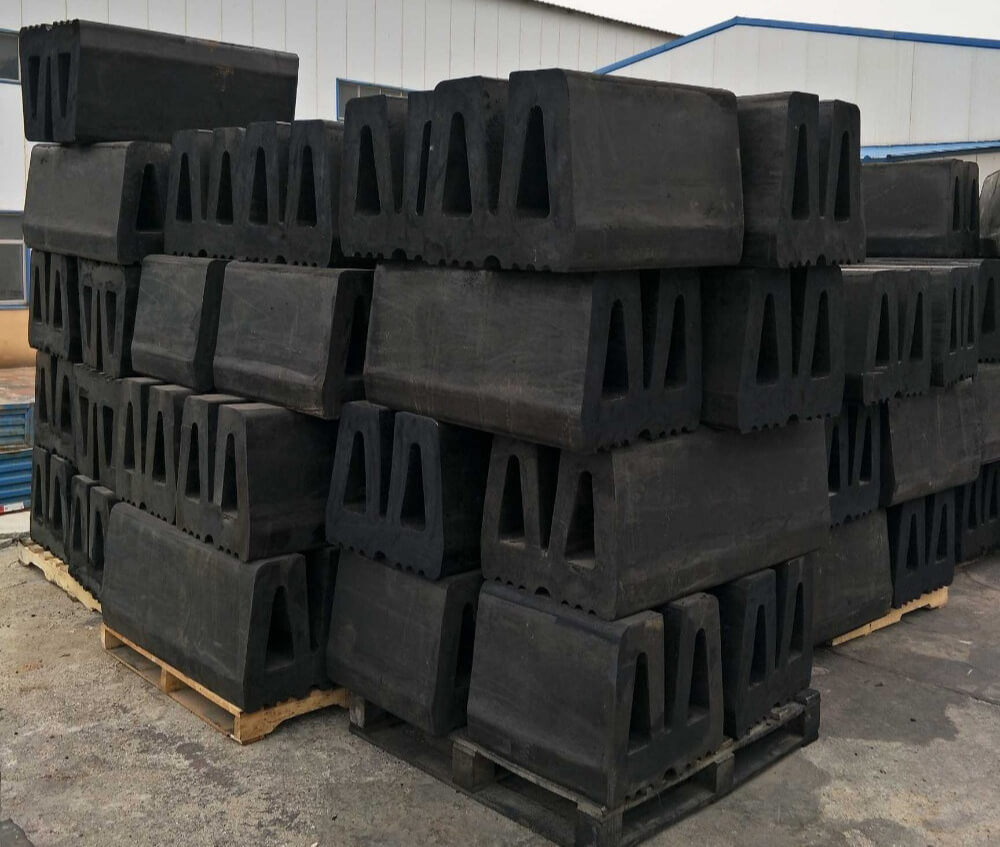

Packages Of W Fender

Packaged with a wooden case;
Packaged with wooden pallet;
Packaged with steel pallet;
Packaged in the container directly.

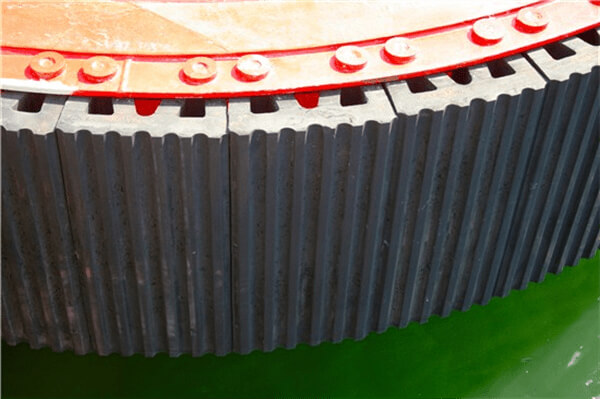

Applications Of W Type Marine Rubber Fender

•Sea-going tugboats & large harbors tugboats;
•Icebreakers;
•Workboats;
• Barges;
• Supply boats;
• Corners of quays;
• Pontoons;
• Bridge and pile protection;
• Angular constructions.
