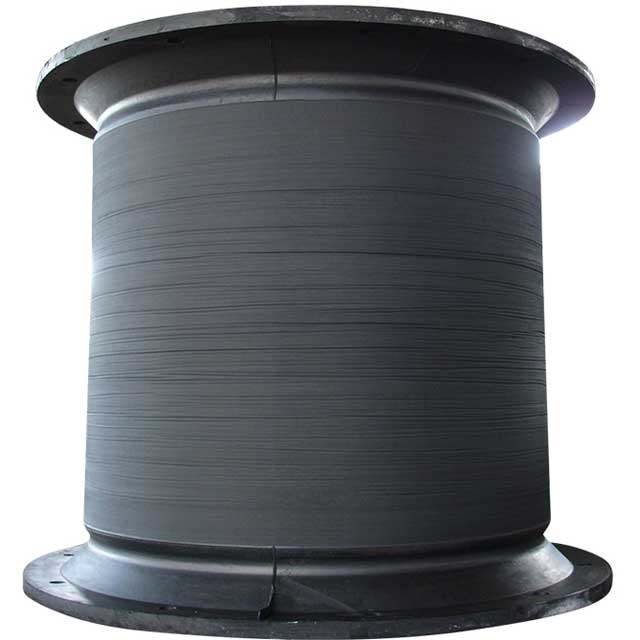

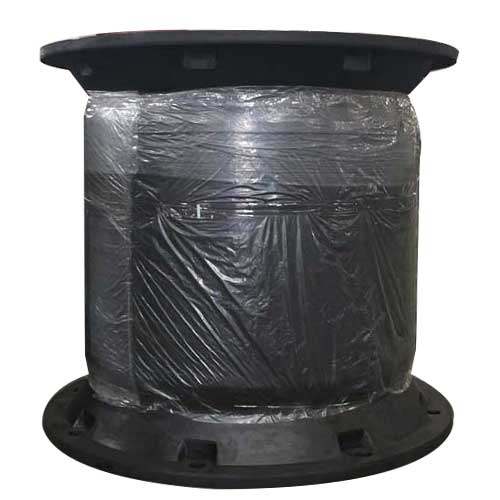

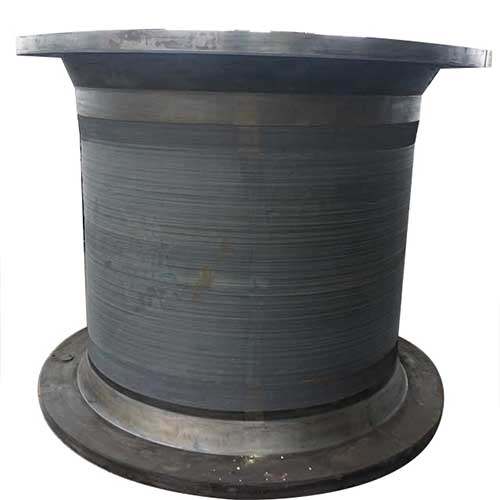

Super Cell Rubber Fender (SC Type)


  • Material: Natural Rubber
  • Type: Cylindrical Type
  • Diameter: 650mm to 3350mm
  • Height: 400mm to 3000mm

Super Cell Rubber Fender (SC Type)

The super cell rubber fender which is also called SC type rubber fender is a well-established rubber fender type. Super cell rubber fender is one of the most proven and reliable marine fender styles ever designed and historically has been the most commonly used fender in the industry. The fender originally is designed to replace the cylindrical fender which has more than 30 years of record of accomplishment with only some minor improvements over the years.
They are designed to absorb the collision energy between ship and dock at the time of berthing for berths, dolphin wharf, offshore docks, and terminals. Cell fender geometrical shape gives it sturdiness, shear resistance, compact structure and the capacity to absorb energy equally from all directions. The cylindrical-buckling column absorbs axial loads efficiently and buckles radially. To distribute the reaction force, they are typically supplied with large fender panels, which keep the hull pressure low.

The large mounting flanges serve to distribute the super cell rubber fender loading over the back of the fender panel frame and allow easy installation of the mounting bolts. It is designed to deflect in an axial direction. YSmarines is available in the widest range of sizes of any fender type and provides high-quality super cell rubber fender with the most competitive price.

Features Of Super Cell Rubber Fender (SC Type)

● Reasonable structure;
● High energy absorption and low reaction force;
● Excellent under berthing angle and shear;
● Suitable for a large wharf.

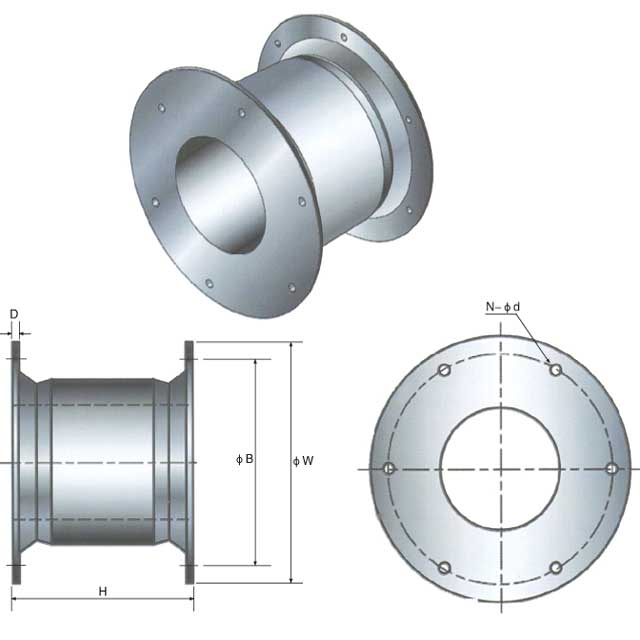

Drawings of Super Cell Rubber Fender (SC Type)

Specifications Of Cell Rubber Fender

Model

H(mm)

W(mm)

B(mm)

D(mm)

N*d(mm)

Weight(kg)

SC400H

400

650

550

25

4*30

76

SC500H

500

650

550

25

4*32

110

SC630H

630

840

700

25

4*39

230

SC800H

800

1050

900

30

6*40

410

SC1000H

1000

1300

1100

35

6*47

790

SC1150H

1150

1500

1300

37

6*50

1200

SC1250H

1250

1650

1450

40

6*53

1500

SC1450H

1450

1850

1650

42

6*61

2300

SC1600H

1600

2000

1800

45

8*61

3000

SC1700H

1700

2100

1900

50

8*66

3600

SC2000H

2000

2200

2000

50

8*74

5200

SC2250H

2250

2550

2300

57

10*74

7400

SC2500H

2500

2950

2700

70

10*74

10500

SC3000H

3000

3350

3150

75

12*90

18500

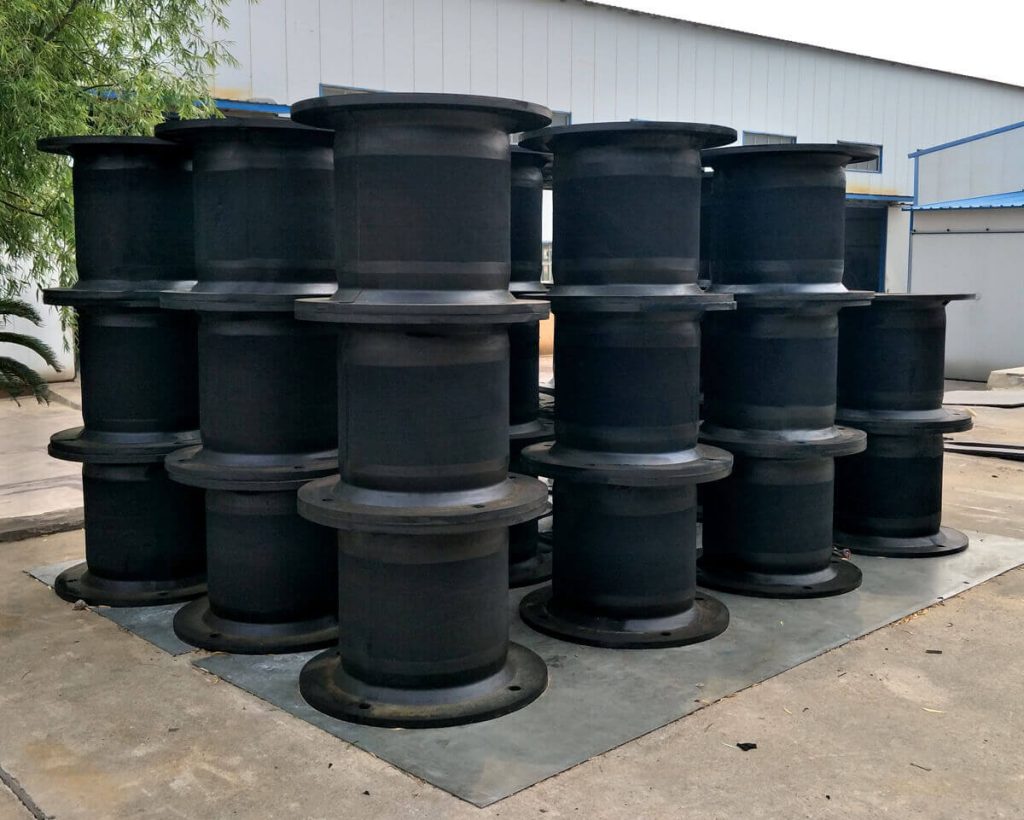

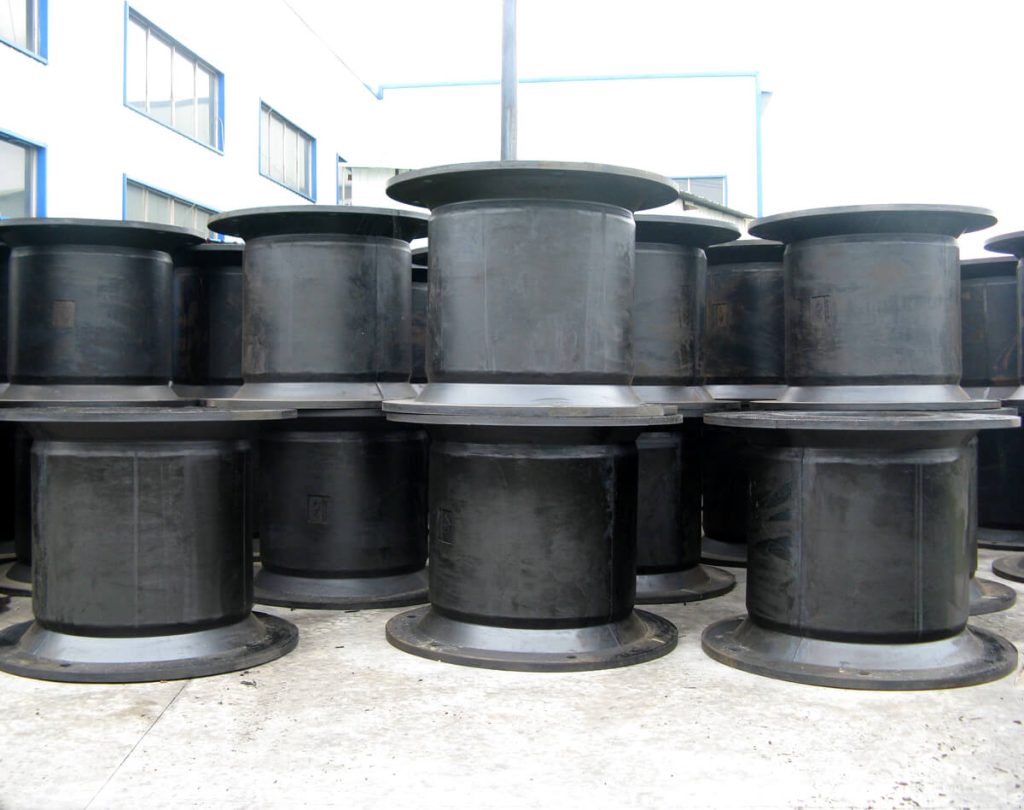

Workshop Of Cell Fender

 Workshop Of Cell Fender
 Workshop Of Cell Fender

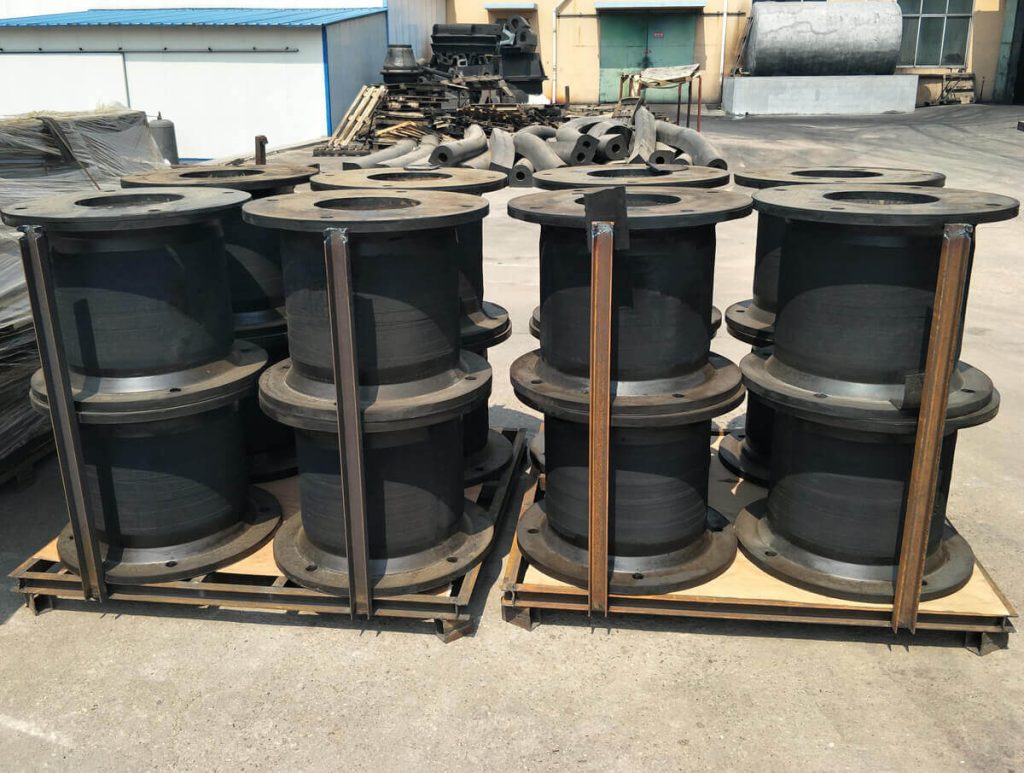

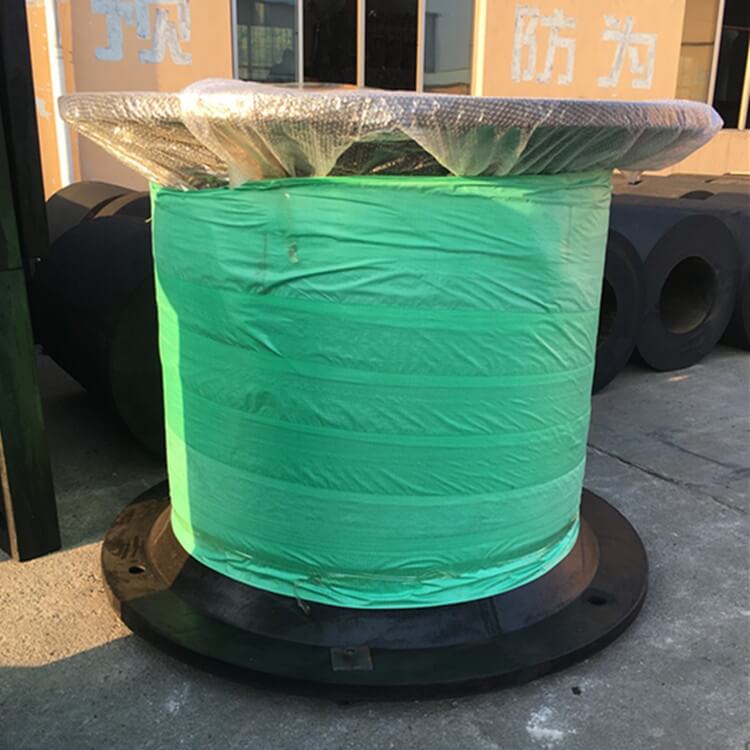

Packages Of Cell Rubber Fender

Packaged with the wooden case;
Packaged with wooden pallet;
Packaged with steel pallet;
Packaged in the container directly.

Packages Of Cell Rubber Fender
Packages Of Cell Rubber Fender

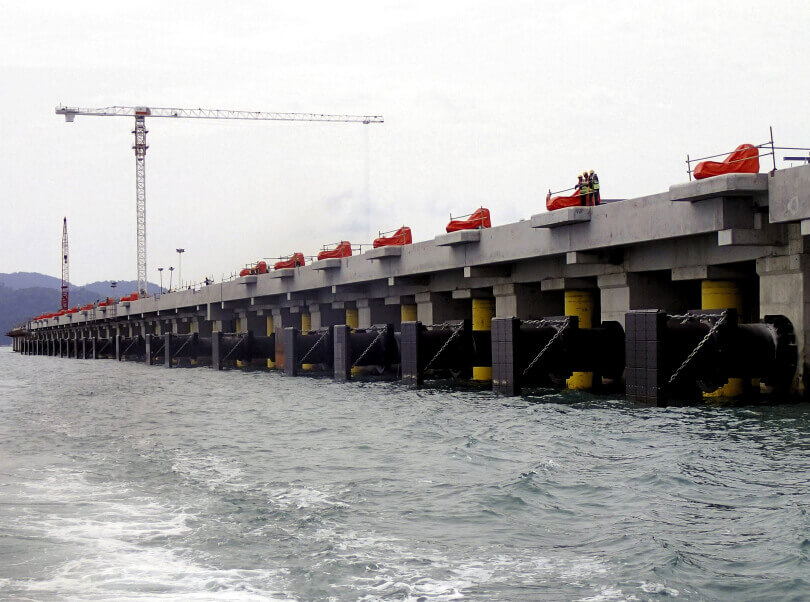

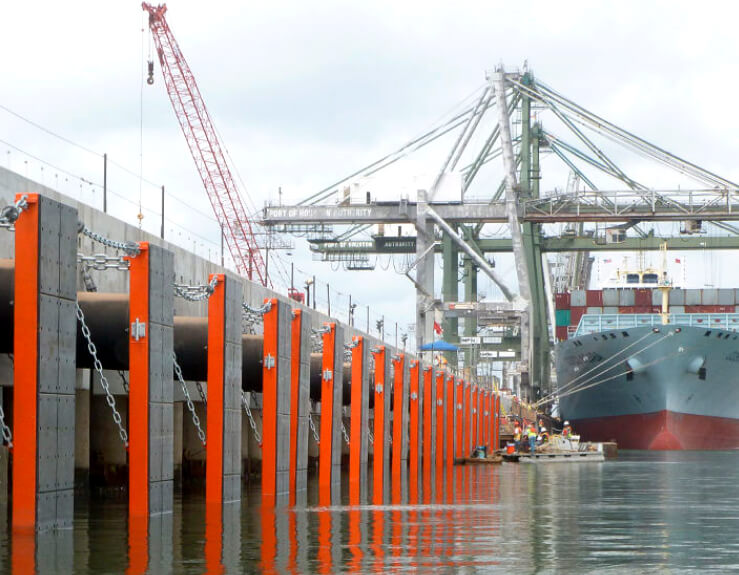

Applications Of Super Cell Fender

• Container & Bulk Terminals;
• Oil & Gas Terminals;
• General Cargo Terminals;
• Cruise Terminals;
• Ferry & RoRo Terminals;
• Navy.

Applications Of Super Cell Fender
Applications Of Super Cell Fender

FAQ Of YSmarines Super Cell Fender(SC Type)

1. Can you supply OEM or ODM service?
A: Yes, we have a great research & development team. The cylindrical rubber fender can be customized according to your requirements in different heightswidths and lengths
2. How to install the super cell rubber fender?
A: The super cell rubber fenders are always installed for kinds of terminals by chainsanchor bolts and the U-anchors. In the front of the super cell rubber fender, there is UHMW-PE panel installed by chains and U-anchors.
3. What is your term of delivery?
A: We accept EXW, FOB, CIF, DDU and DDP. You can choose the one that is the most convenient for you.
