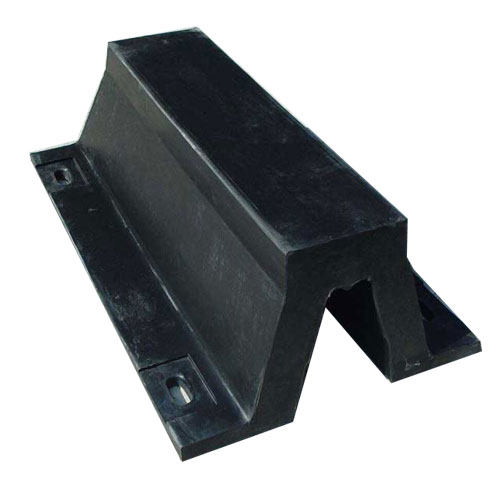

SA Type Super Arch Rubber Fender (V Type)

SA Type Super Arch Rubber Fender

The SA super arch fender is also known as V-type rubber fender is a kind of marine rubber fender, which can also embedded steel mount and nut on the top of the fender. It connects the front panel, UHMW-PE face pad installed outside of the front panel, which lowers the friction factor between vessel and fender to avoid the damage of vessel and raises the utility of fender life. The design of the SA fender is simple and durable, providing trouble-free service for a wide range of berths even under the toughest conditions. It has better stability and stronger attachment to the supporting structure than the traditional arch rubber fenders. It is made of quality natural rubber resistant to weather, seawater, cutting, abrasion, etc. The designs are simple and rugged, providing reliable and trouble-free service for a wide variety of ports. The rubber fenders are tough and reliable, simple and long-lasting, providing trouble-free service for a wide variety of berthing even under the most severe conditions.

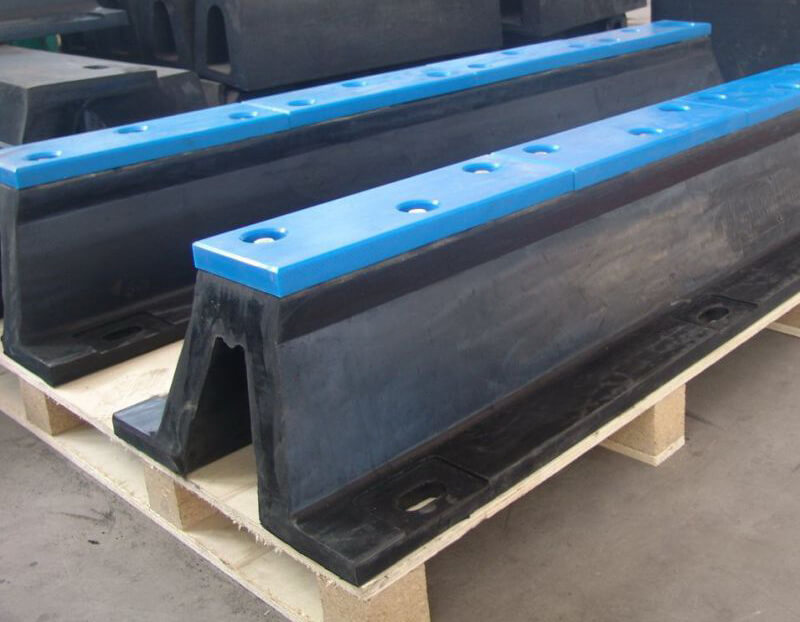

The super arch fender has better stability and stronger attachment to the supporting structure than the traditional arch /v rubber fenders. It connects the front panel. This design can reduce the torsion at the bottom of the fender dramatically, the prolong the life-span of the rubber fender body. The UHMW-PE face pads have various colors and can be replaced easily. The YSmarines super arch fenders are with IACS approvals including CCS, ABS, BV, LR, KR, DNV-GL, NK, RMRS and RINA.

Features Of Super Arch Rubber Fender

● Suitable for various applications;
● Very robust, durable and requires low maintenance;
● High shear resistance in the longitudinal direction;
● Can be installed both vertically and horizontally;
● Suitable for turning dolphins & pivot points.

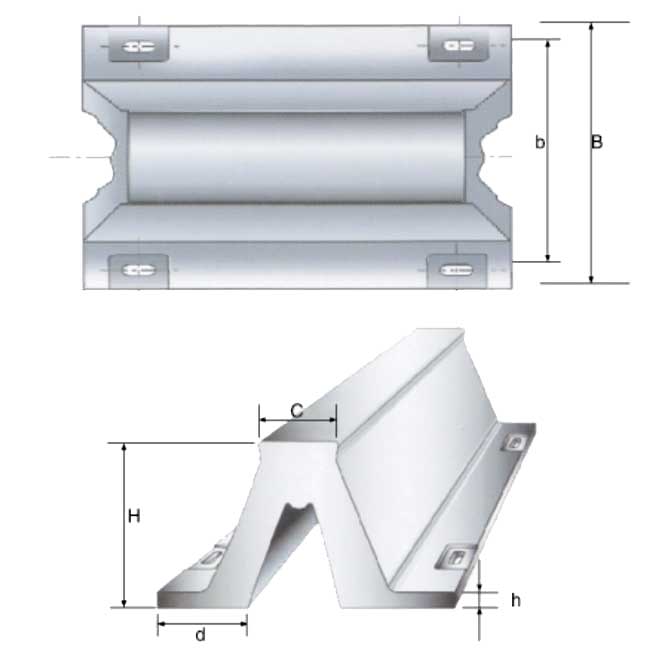

Specifications Of SA Type Rubber Fender

Model	B(mm)	b(mm)	c(mm)	d(mm)	H(mm)	h(mm)	L(mm)
SA-200H	400	320	145	128	200	30	1000L   1500L   2000L   2500L   3000L   3500L
SA-250H	500	410	175	160	250	33
SA-300H	600	490	225	196	300	33
SA-400H	800	670	300	260	400	40
SA-500H	1000	840	375	325	500	45
SA-600H	1200	1010	450	390	600	54
SA-800H	1600	1340	600	520	800	72
SA-1000H	2000	1680	750	650	1000	90

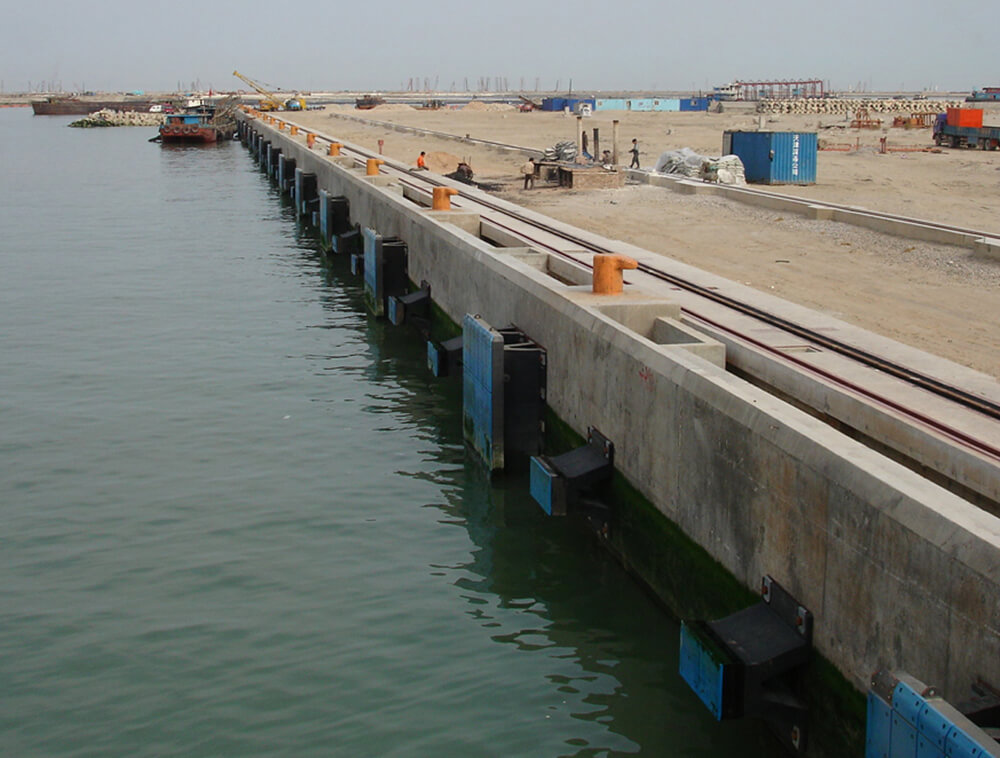

Applications Of Super Arch Fender

General cargo terminals;
Bulk terminals;
Berth for tug boats;
Multi-purpose terminals;
RoRo ramps;
Passenger vessel terminals;
Barge

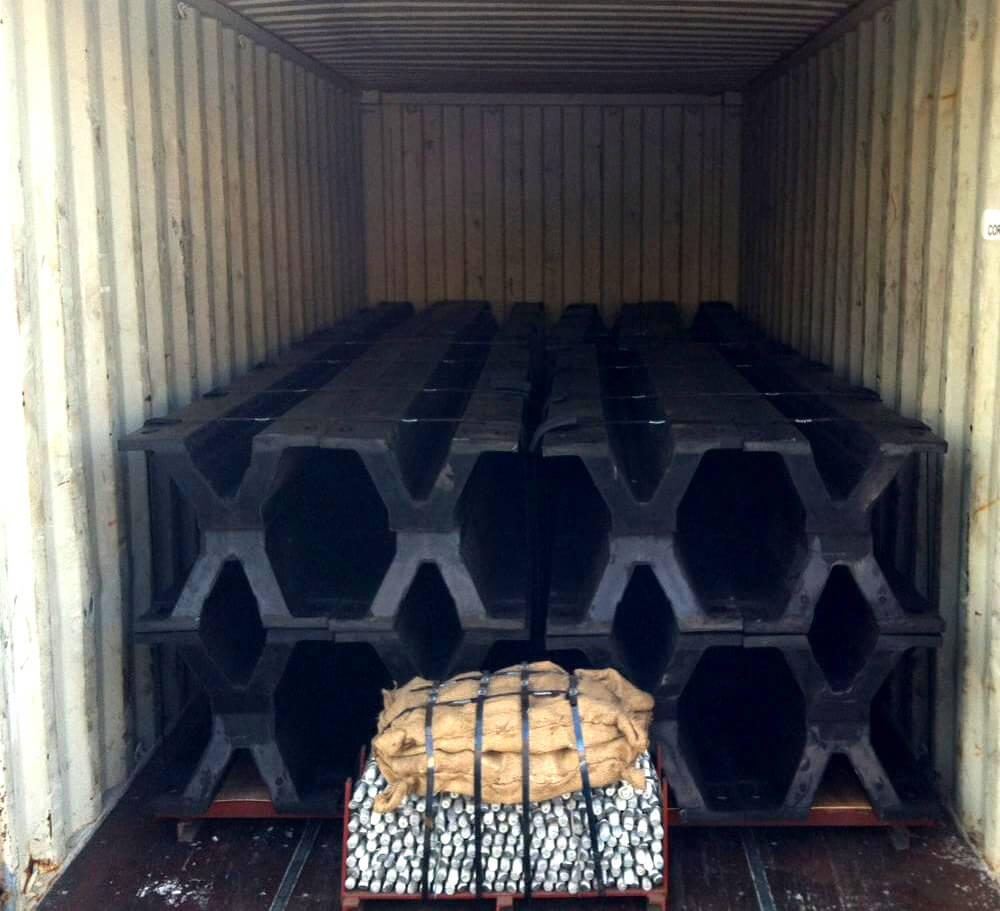

Package Of SA Type Marine Rubber Fender

Packaged with the wooden case;
Packaged with wooden pallet;
Packaged with steel pallet;
Packaged in the container directly.

FAQ Of YSmarines SA Type Fender

1. Can you supply OEM or ODM service?
A: Yes, we have a great research & development team. The super arch rubber fender (or v type rubber fender) can be customized according to your requirements in different heights, widths and lengths.
2. What kind of installation method we can choose?
A: The SA super arch rubber fender (or V type rubber fender) can be installed vertically or horizontally. Therefore, you can choose one of them to install according to your installation design.
3. What is your term of delivery?
A: We accept EXW, FOB, CIF, DDU and DDP. You can choose the one that is the most convenient for you.
