GD Type Marine Rubber Fender

GD Type Marine Rubber Fender

GD marine fender is a new type of rubber fender and is an innovation on the basis of D type fender. The fender enlarges the fender bottom width and pre-built-in steel plate mount. It can be fixed with double bolts. The strength, installation and utility life is much more improved than D type fender. It has high energy absorption and low reaction force. It is widely used for jetty and wharves for small craft, workboat harbors and frame dock. YSmarines is a professional manufacturer for marine products and can provide superior quality GD marine fenders at the best price.

The GD rubber fenders (or wing D rubber fenders) are used as an alternative to other profiles as beltings for tugs and workboats. Instead of drilling the fender, the wings are retained by steel angles. They are forcibly jacked into the angles during installation and joints between adjacent sections are plugged to achieve a smooth and continuous contact face. Once fitted, the wings sit tightly within the angles making this arrangement very resistant to longitudinal and transverse shear- ideal for tugs performing escort duties and similar applications.
​​
The marine rubber fender could be used at the small ports, also can be used at the top front of the harbor as the second protection fendering system. This design can protect the ships that berth abnormally. They can also be produced vulcanized with a specific radius to ensure that it fits properly around a bow or stern of a ship. Most wing fenders can be provided in specified lengths and the ends can be beveled.

Features Of GD Type Marine Rubber Fender

● Easy to break away;
● Better anchoring capacity;
● Workable for angle place and any length;
● Easy to install and replace when necessary

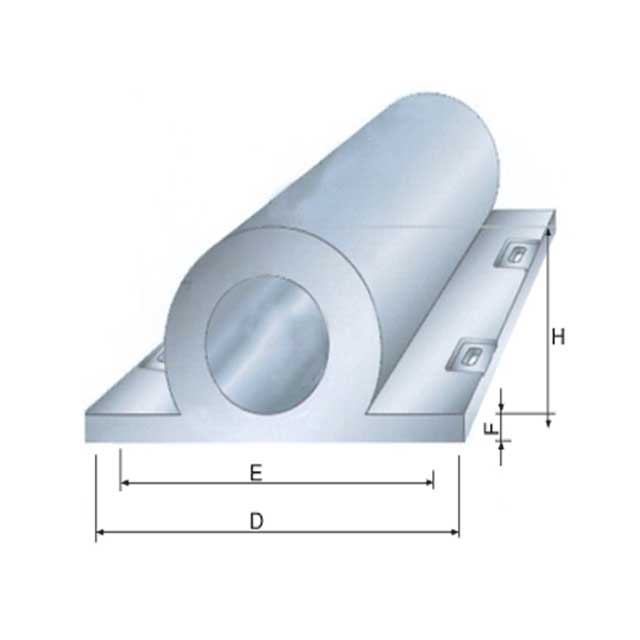

Specifications Of GD Rubber Fender

	D(mm)	E(mm)	F(mm)	H(mm)	Bolts
GD280H*1000L	540	430	40	280	M30
GD280H*1500L	540	430	40	280	M30
GD280H*2000L	540	430	40	280	M30
GD280H*2500L	540	430	40	280	M30
GD280H*3000L	540	430	40	280	M30
GD300H*1000L	600	490	40	300	M36
GD300H*1500L	600	490	40	300	M36
GD300H*2000L	600	490	40	300	M36
GD300H*2500L	600	490	40	300	M36
GD300H*3000L	600	490	40	300	M36

Workshop

Packages

Packaged with the wooden case;

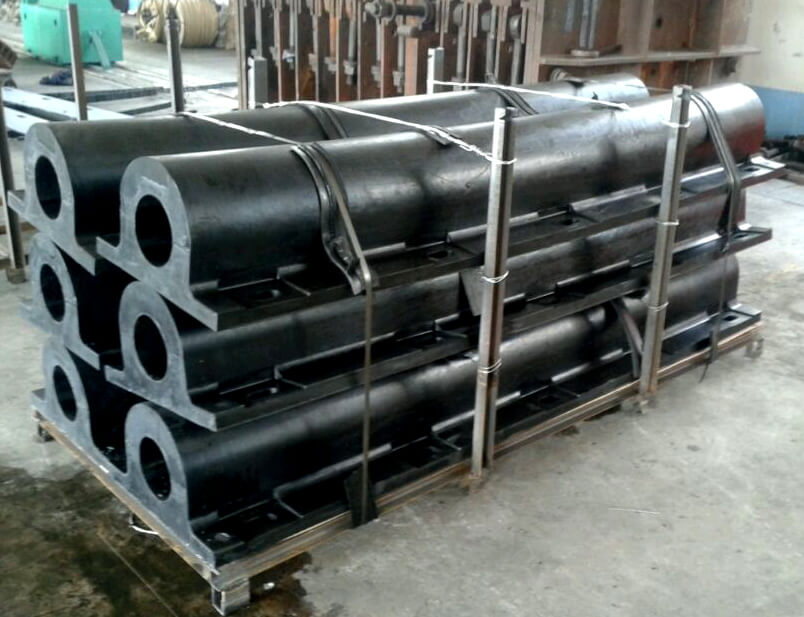

Packaged with wooden pallet;
Packaged with steel pallet;

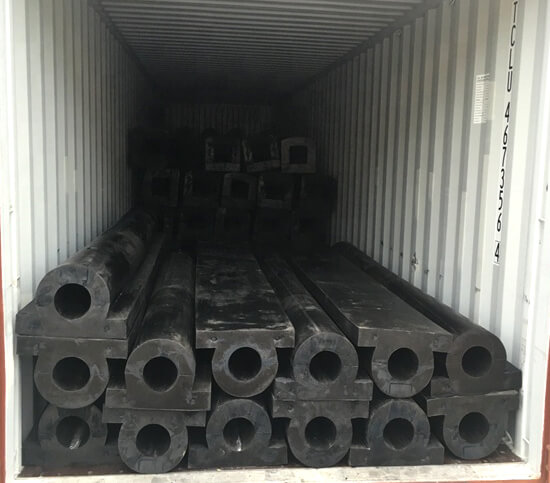

Packaged in the container directly

Applications:

Workboats & tugboats;
Pilot boats;

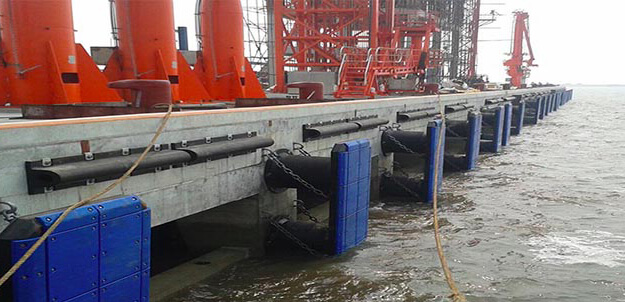

Quays & piers & harbors;
Small crafts;
Warehouses & frame docks.
