D Type Super Arch Rubber Fender (DD & DO)

D Type Super Arch Rubber Fender (DD & DO)

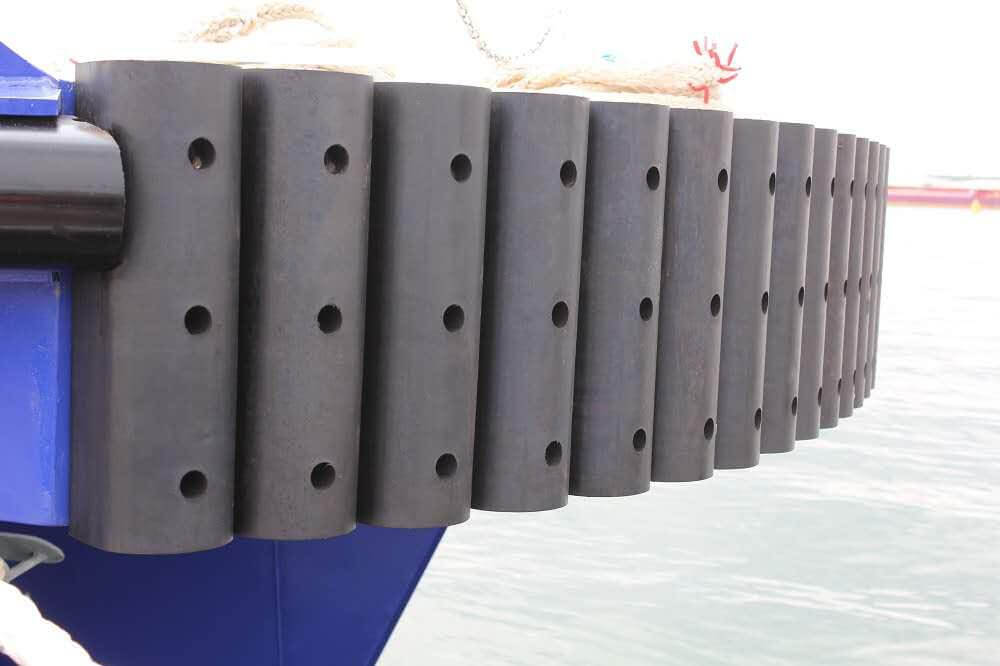

The rubber D fender can be pre-curved, chamfered and drilled to aid installation at a relatively low cost and can also be cut to the length required. The D-type fender provided by YSmarines which is one of the leading suppliers for marine products in China with the best price guaranteed offers an excellent barrier against damage from all sizes and shapes of vessels. It is one kind of profile rubber fenders they have D shape outer profile widely be used as beltings and protective fenders on many tugs workboats and small jetties with long-term durability for applications where repeated compression cycles are encountered in pushing service.

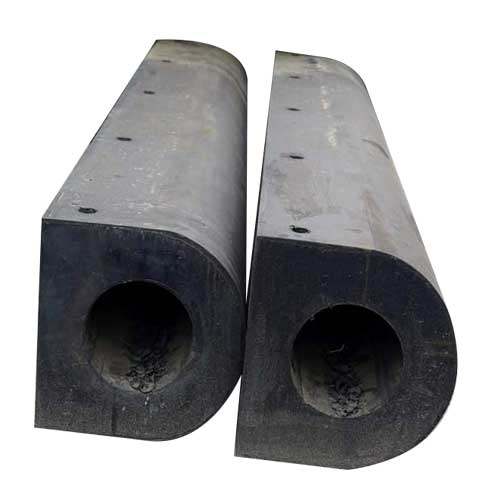

There are three types of D type rubber fenders. One is with a cylindrical bore inside, which is known as DO type rubber fender, one is with a “D” shaped bore inside, which is known as DD type rubber fender, and the last one is with a solid bore, therefore, it is known as solid d type rubber fender. Both DO type and DD type share the same flat rear face which makes them easy to install between parallel flat bars and bolt fixings. They can be supplied in long sections with maximum length restricted only by transport and handling limitations, they can be cut to length, angle cut at the end drilled or pre-carved as required for each application.

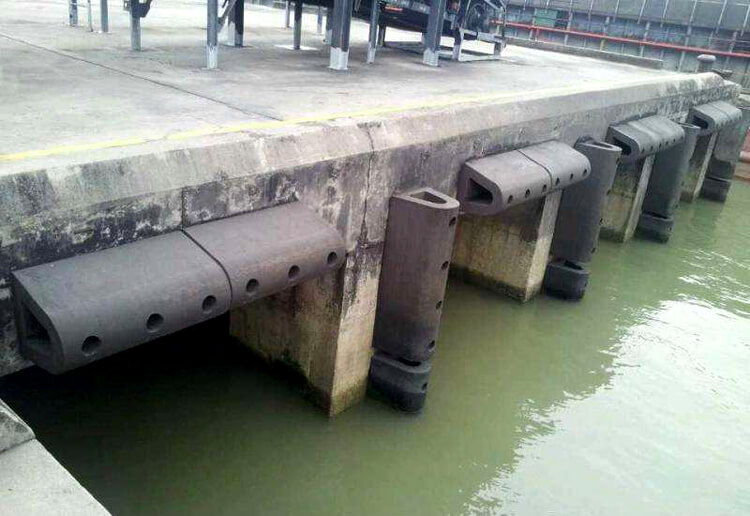

D type fender offers the excellent physical characteristics needed to handle the high loading, which occurs both on initial contact, and throughout the service cycle. The rubber fender could be equipped both at the smaller and at the top front of the harbor as the second defense line together with the other fenders. Normally, It should be equipped continuously so as to avoid the direct impact of the ships when abnormal harboring happens.

Features Of Rubber D Fender

● Excellent physical characteristics;
● Good adaptability of transverse of eongituaind shake of ships during mooring;
● Applicable for frame dock due to the smaller bottom width
● Available for curved shaped type rubber fender in any angle

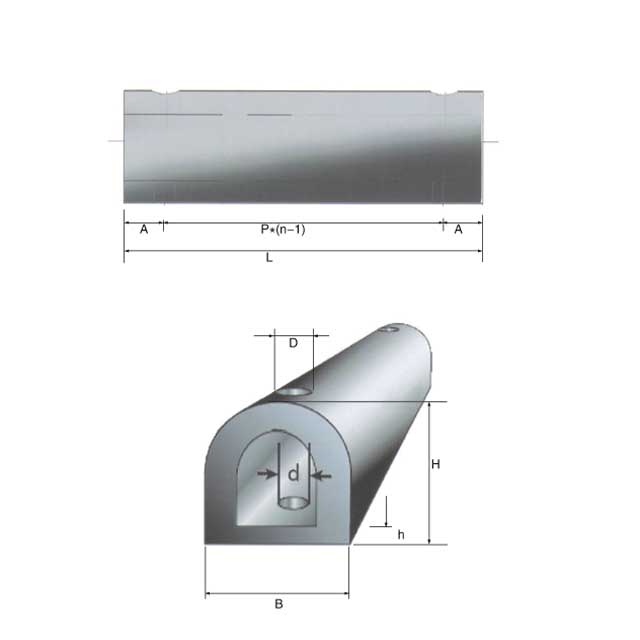

Specifications Of D Type Fender

Model	L(mm)	A(mm)	D(mm)	d(mm)	B(mm)	H(mm)	h(mm)	P(mm)	n	Weight(kg)
D200H	1000	200	55	28	200	200	30	300	3	37
D200H	1500	150	55	28	200	200	30	600	3	56
D200H	2000	250	55	28	200	200	30	500	4	74
D300H	900	150	65	32	300	300	40	600	2	80
D300H	1000	200	65	32	300	300	40	600	2	67
D300H	1500	150	65	32	300	300	40	600	3	105
D300H	2000	250	65	32	300	300	40	500	4	134
D300H	1000	200	65	32	360	300	40	600	2	80
D300H	1500	150	65	32	360	300	40	600	3	120
D400H	1500	150	65	32	400	400	55	400	4	150
D400H	2000	200	65	32	400	400	55	400	5	200
D500H	1000	150	55	28	500	500	60	350	3*2	195
D500H	1500	150	55	28	500	500	60	400	4*2	298
D500H	2000	200	55	28	500	500	60	400	5*2	395

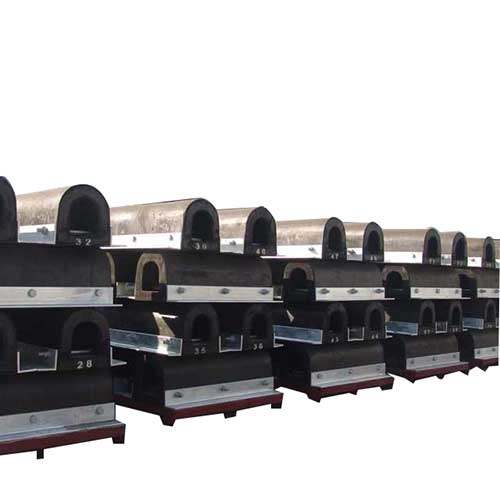

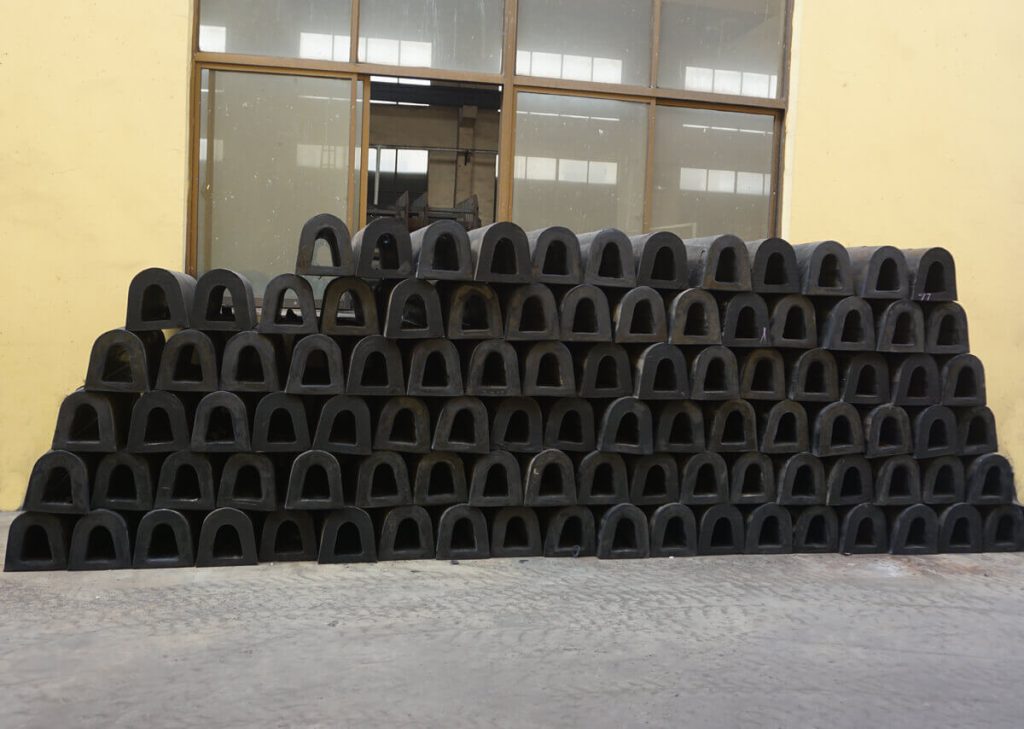

Workshop Of D Type Rubber Fender

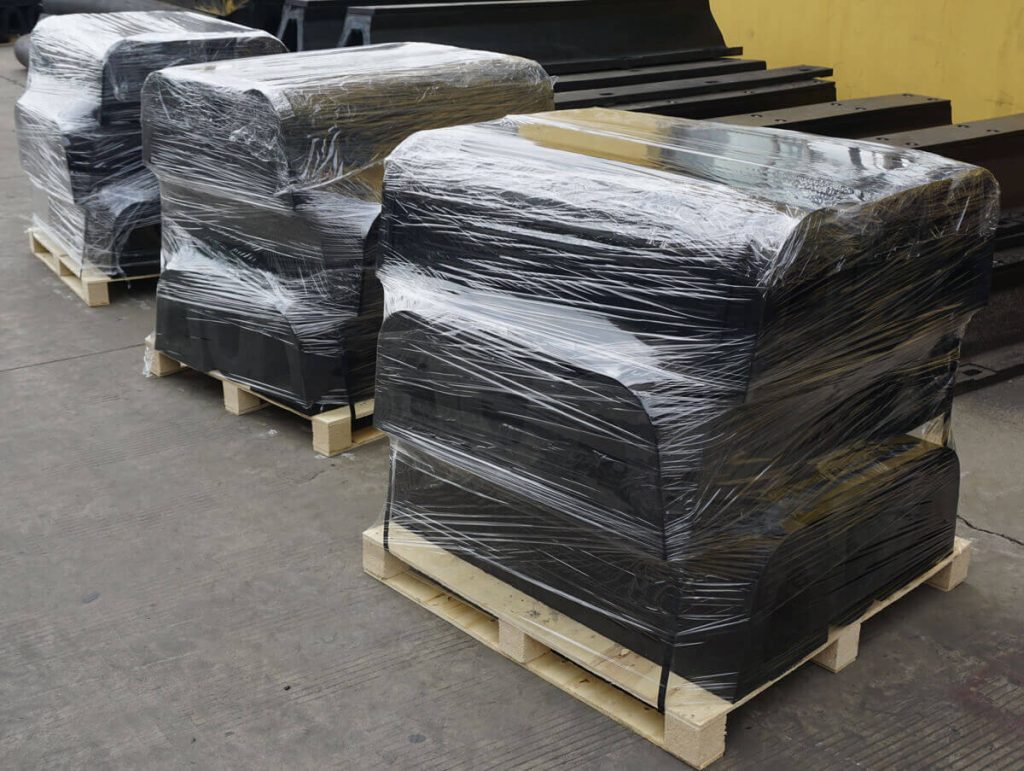

Packages Of Rubber D Fender

Packaged with the wooden case;
Packaged with wooden pallet;
Packaged with steel pallet;
Packaged in the container directly.
