Vertical Guide Sheave

Vertical Guide Sheave

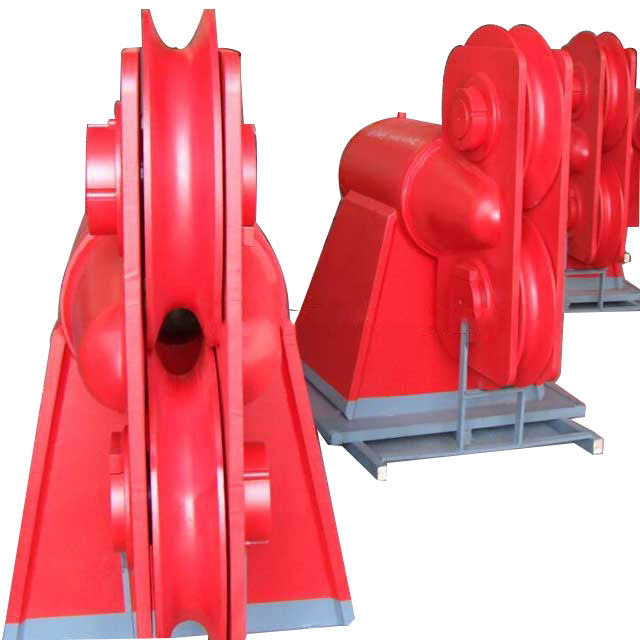

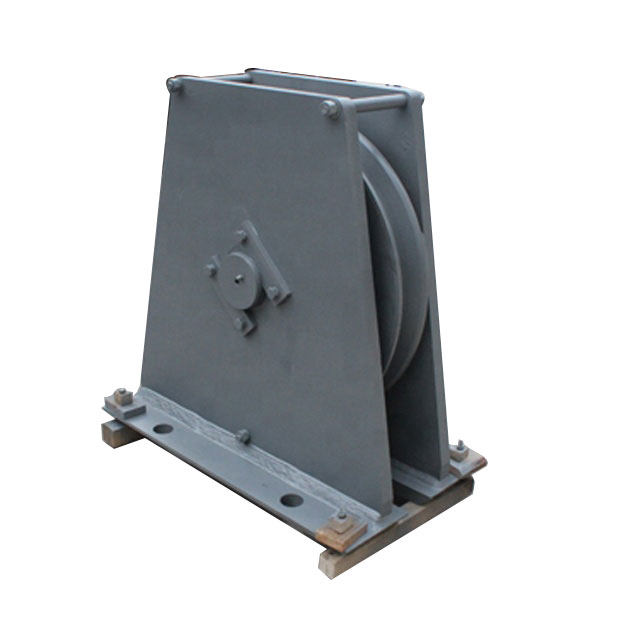

The vertical sheave is a type of mooring fittings to guide the mooring rope vertically on the deck. The fairlead is built to withstand the breaking strength of indicated rope at 90-degree sheave wrap on sheaves. It is made of cast steel with a hardened rope groove for longer life. There can be one sheave or two sheaves together. It is a removable guide roller with an epoxy primer coating. It is a special sheave for high-performance synthetic ropes. YSmarines can supply customized vertical sheave with the most competitive price and high quality.

Features:

● Flexible sheaves;
● Smooth surface coated externally with an anti-corrosion protective finish;
● Anti-seawater material;
● Customized weldable foundation.

Nominal Size	Dimensions (mm)						Wire Rope Dia.	SWL	Weight
(mm)	A	B	C	D	E	F	(mm)	(kN)	(kg)
400	460	270	528	406	258	20	25	234	198
500	550	310	643	508	323	25	32	355	240
600	711	407	781	610	381	30	38	500	300
650	700	416	820	660	420	30	45	671	430
750	903	517	890	762	432	40	52	935	680
900	940	560	1120	914	560	40	64	1414	1050
