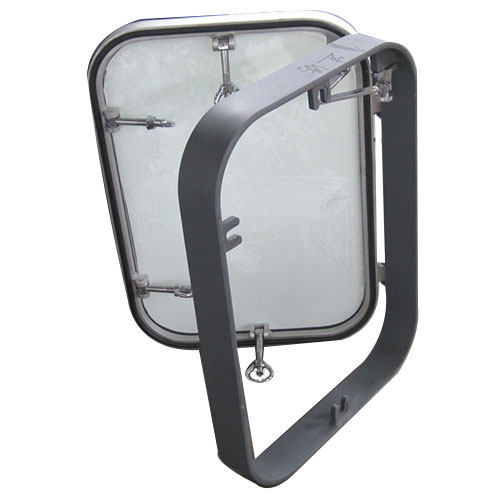

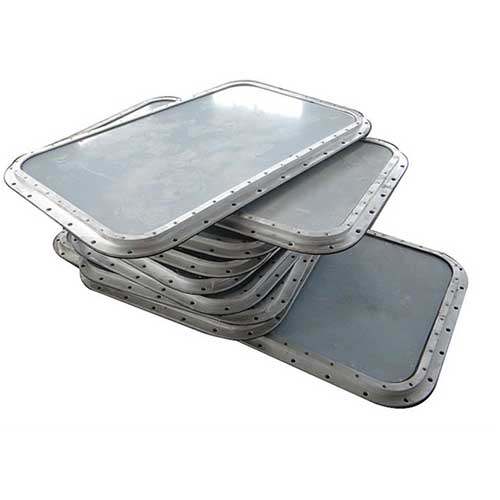

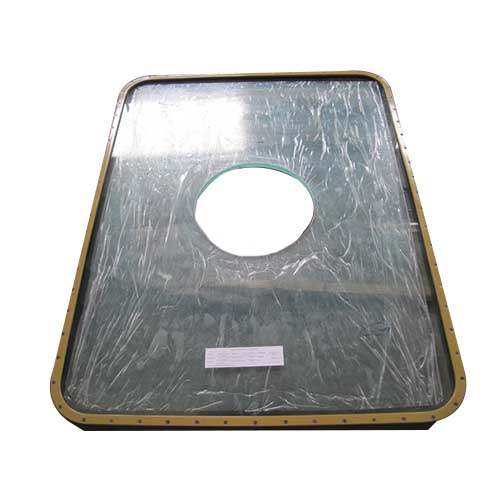

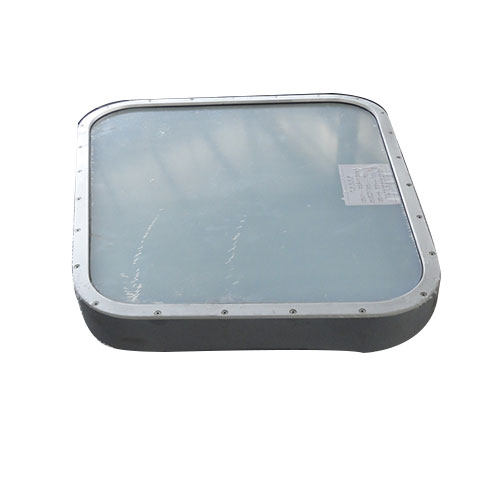

Marine Rectangular Window
- Material: Brass, aluminum, steel or combination of them
- Series: Common series(N), fire protection serious(P), heating serious(H)
- Opening Type: Oprning, Fixed
- Available Certificate: CCS, ABS, BV, LR, DNV-GL, KR,etc
- Installation: Bolted in or welded
- Sort: Heave(E), light(F)
- Option: Clear view screen
Marine Rectangular Window
The rectangular marine window is designed for marine and can be used for the windows of superstructure above the free-board deck and deck house. It is made of aluminum, steel and brass. It meets the standard of ISO3930-1993. The rectangular window is made by YSmarines which is a professional marine equipment supplier in china, also conforms to the GB/T 5746-2001 standard. Depending on the opening direction, the rectangular window has two types. One is an open type and another is a fixed type. And as per the installation method, it can be divided into two types including the bolted type and welded type.
| Nominal Size | Size of Opening | Window Seat | |
| W*H | W1*H1 | W2*H2 | R |
| 300*425 | 352*477 | 348*473 | 76 |
| 355*500 | 407*552 | 403*454 | 76 |
| 400*560 | 452*612 | 448*608 | 76 |
| 450*630 | 502*682 | 498*678 | 126 |
| 500*710 | 552*762 | 548*758 | 126 |
| 560*800 | 612*852 | 608*848 | 126 |
| 900*630 | 952*682 | 948*678 | 126 |
| 1000*710 | 1052*762 | 1048*758 | 126 |
| 1100*800 | 1152*852 | 1148*848 | 126 |

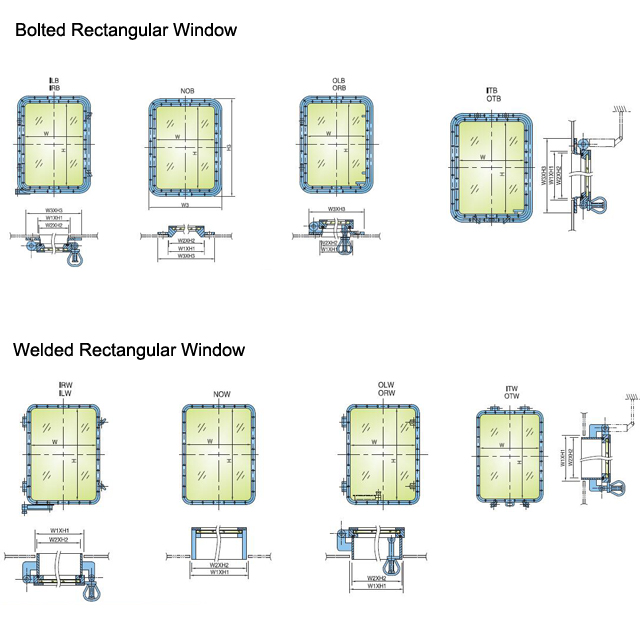

Drawings of Marine Rectangular Window
