Marine Aluminum Sliding Window
- Standard: CB/T 3765-1996
- Type: Aluminum single sliding window, Aluminum double sliding window
- Available certificate: CCS, BV, ABS, LR, DNV-GL, KR, etc
- Installation Method: Bolted in

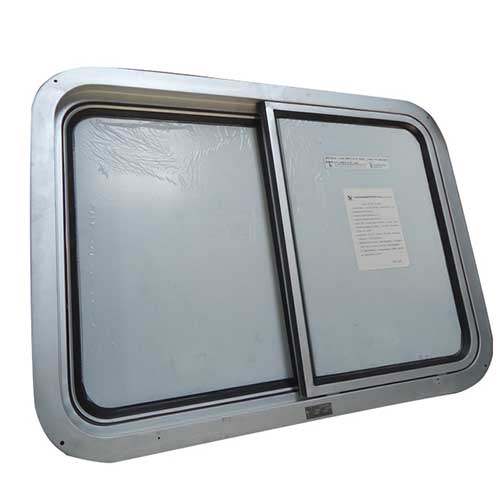

Marine Aluminum Sliding Window
The marine sliding window is made of aluminium and is suitable for the wheelhouse and superstructure above the freeboard deck of the vessels. It is sealed with a rubber gasket around the window and closed with bolts pressed to ensure weathertight. It has a welding or bolted installation. It can be divided into two types including square angle type and round angle type. YSmarines is one of the professional marine sliding window manufacturers & suppliers in China. All windows are made according to the standard of CB/T 3765-1996 with the certificate of CCS, BV, ABS, LR, DNV-GL, KR, etc, customized design available.

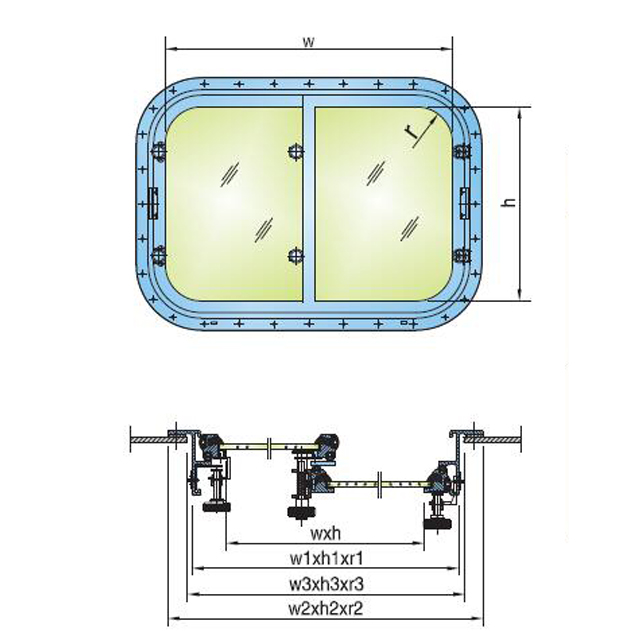

| Nominal Size | Single Light Size | Window Frame Size | Size of B.H.Opening | |
| w*h | w*h*r | w1*h1*r1 | w2*h2*r2 | w3*h3*r3 |
| 740*500 | 355*500*50 | 828*588*94 | 890*650*125 | 840*600*100 |
| 830*560 | 400*560*50 | 918*648*94 | 980*710*125 | 930*660*100 |
| 930*630 | 450*630*100 | 1018*718*144 | 1080*780*175 | 1030*730*150 |
| 1030*710 | 500*710*100 | 1118*798*144 | 1180*860*175 | 1130*810*150 |
| 500*630 | 235*630*50 | 588*718*94 | 650*780*125 | 600*730*100 |
| 600*710 | 285*710*50 | 688*798*94 | 750*860*125 | 700*810*100 |
| 750*800 | 360*800*50 | 838*888*94 | 900*950*125 | 850*900*100 |
