YS013 Type Passenger Seat


  • A fixed backrest or adjustable backrest angle is according to requirements.
  • The size of the seats could be customized.
  • The material of seating adopts fire-proof leather, PU/PVC leather, or fabric according to your requirements.
  • The anti-corrosion aluminum structure is durable.
  • Upholstery can be fabric or synthetic leather, or leather, upholstery material is approved flame retardant testing.
  • Economy class passenger boat seats with color combination design.
  • All sorts of colors fabric, vinyl, leather are available to meet clients’special preference.
  • Armrest could be flat open, curved open, flat closed arm rest and curved closed arm rest, folding arm rest.
  • Track or track bolt for choice.

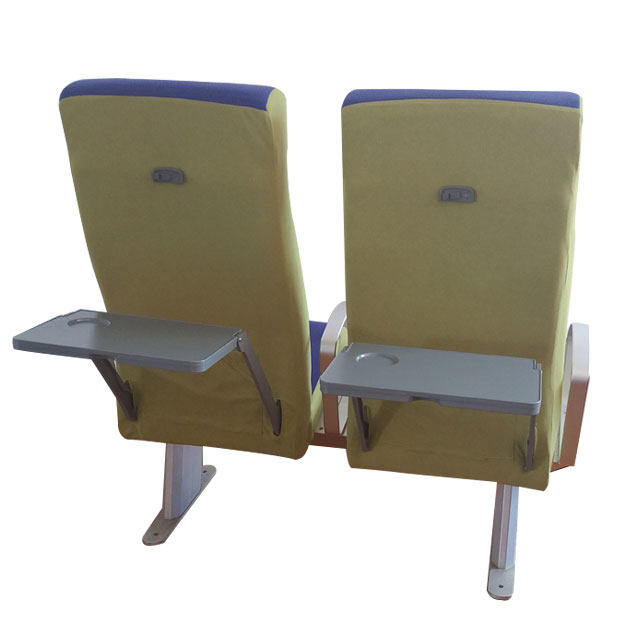

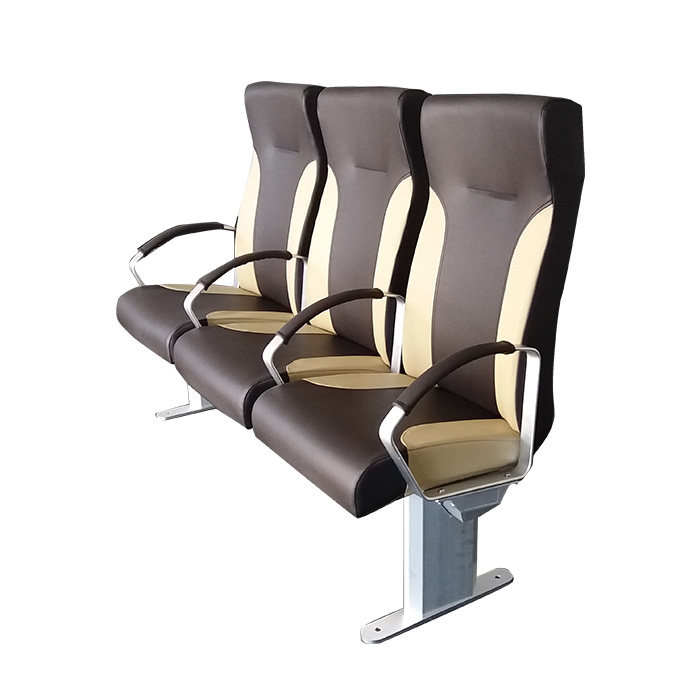

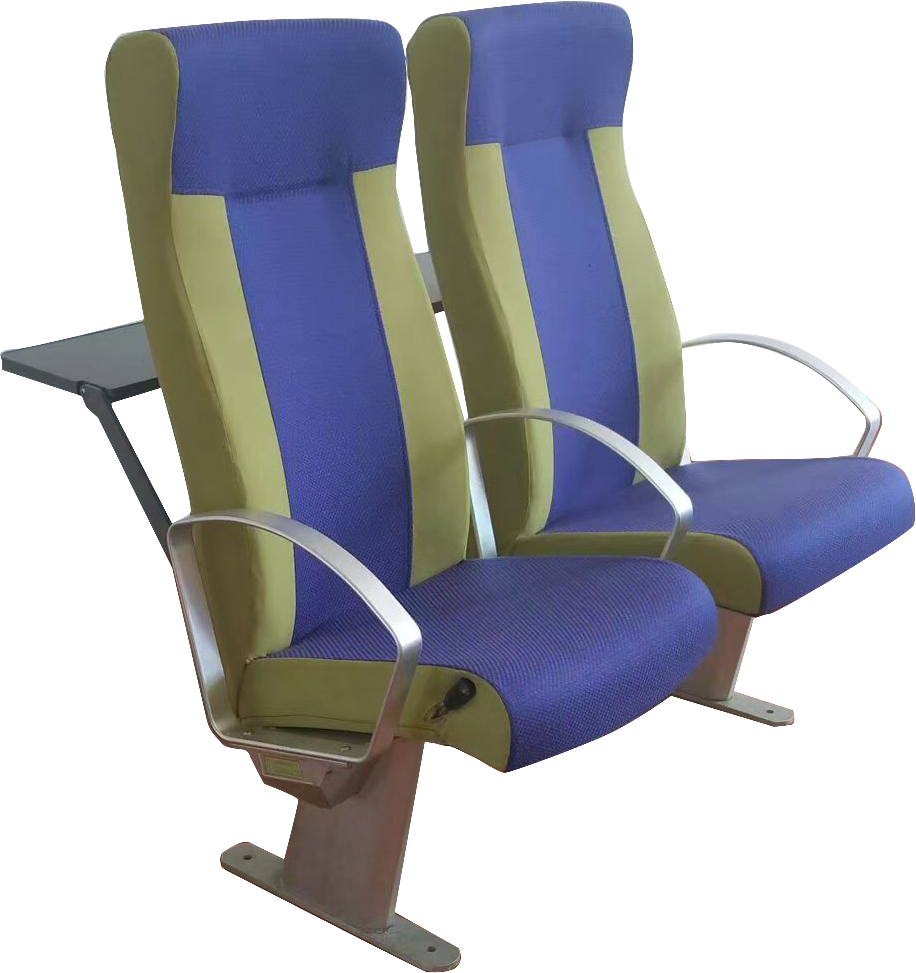

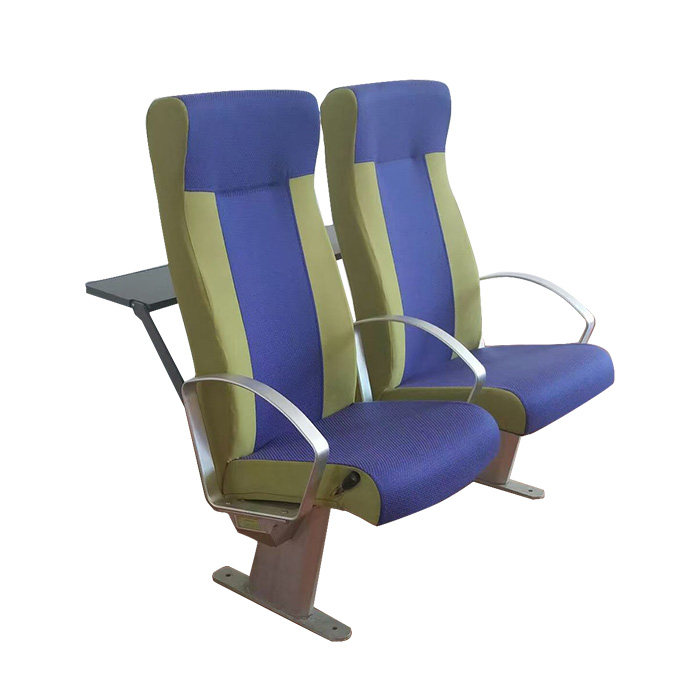

YS013 Type Passenger Seat

The boat chairs for passenger seating can be widely used for the ferry boat, high-speed passenger ship, yacht and other passenger ships. The rail and the structure of the seat adopt aluminum alloy. It is made of comfortable fabric or PVC or high imitation leather. It is available for marine seating arrangements. YSmarines is one of the leading manufacturers of marine and offshore equipment in china and can supply excellent quality boat passenger chairs at a cheap price. The design of the chair is totally in accordance with the ISO standard, IMO standard, and kinds of Classification Society’s requirements.

Specifications:

No.

Spec.

Width(mm)

Weight(KG)

1

Single

550

12

2

Double

1060

20

3

Triple

1570

28

4

Quadruple

2080

36

Basic configuration:

Seat cushion and the back of a chair(including magazine bag)
United and decorative head
Armrest
Chair foot
An adornment to install rails
Railhead
Rail decoration layering
Life-saving pocket
Installation accessories

Optional configuration:

Meal Trays
Fixed back/Reclining back
Headrest
Footrests
Life jacket bag
Seat belt
Document pocket
Antimacassar
Hand grip
USB

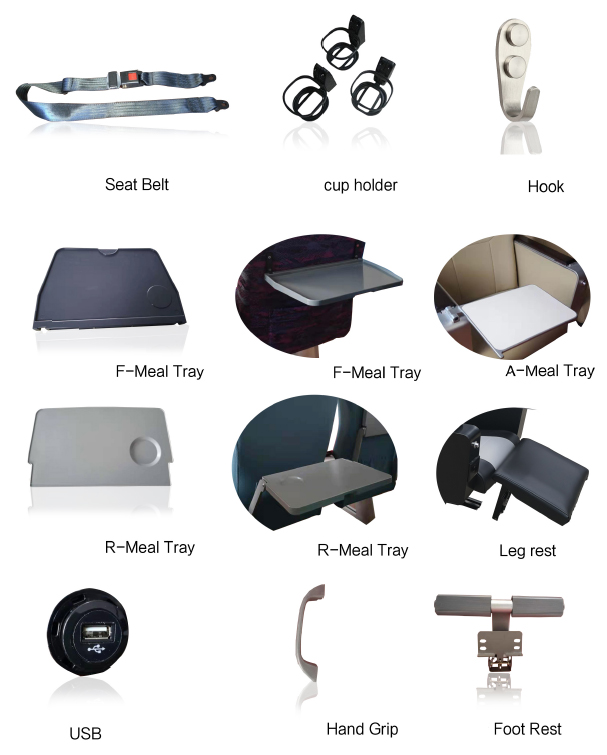

Drawings of Optional configuration

Material:

A. Chair surface is leather or fabric flame retardant;
B. Back for high-density polyester one-time forming high cold foam spring backfire sponge;
C. For high-density polyester one-time forming high cold foam cushion spring backfire sponge;
D.Seat beams, chair foot, armrest for high strength aluminum alloy 6063 oxides;
E.Rail for high strength aluminum alloy 6061 oxides;
F.Adornment to beams and railhead for PVC plastic resin materials;
G.Rail decoration layering for environmental protection rubber material;

Drawings of YS013 Type Passenger Seat
