YS010 Type Passenger Seat


  • High back marine passenger seats for economy class.
  • A fixed backrest or adjustable backrest angle is according to requirements.
  • The size of the seats could be customized
  • The material of seating adopts fire-proof leather, PU/PVC leather, or fabric according to your requirements.
  • The anti-corrosion aluminum structure is durable.
  • Upholstery can be fabric or synthetic leather, or leather, upholstery material is approved flame retardant testing
  • Foldable Armrest

YS010 Type Passenger Seat

This type of ferry chair will be suitable for the passenger seating of the yachts, hovercrafts and other passenger vessels. It is high back passenger seats and the high back design provides shoulder, neck, head full support giving passengers ultimate comfort. The average weight of triple seats is about 10kgs. TRA-03 selected by many ship owners for their economy class. The structure is as strong as to support 12G vessel acceleration. All ferry passenger chairs produced by YSmarines adopt high-quality corrosion-resistant aluminum for cushion and backrest frame, best prices guaranteed.

Specifications

No.

Spec.

Width(mm)

Weight(KG)

1

Single

550

12

2

Double

1060

20

3

Triple

1570

28

4

Quadruple

2080

36

Basic configuration:

Seat cushion and the back of a chair(including magazine bag)
United and decorative head
Foldable Armrest
Chair foot
An adornment to install rails
Railhead
Rail decoration layering
Life-saving pocket
Installation accessories

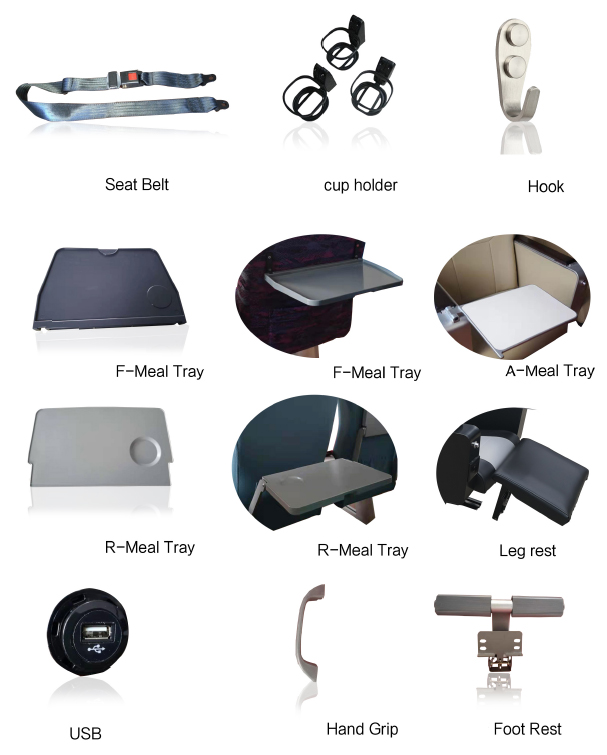

Optional configuration:

Meal Trays
Fixed back/Reclining back
Foldable Armrest
Headrest
Footrests
Life jacket bag
Seat belt
Document pocket
Antimacassar
Hand grip
USB

Optional configuration of YS010 Type Passenger Seat

Material:

A. Chair surface is leather or fabric flame retardant;
B. Back for high-density polyester one-time forming high cold foam spring backfire sponge;
C. For high-density polyester one-time forming high cold foam cushion spring backfire sponge;
D.Seat beams, chair foot, armrest for high strength aluminum alloy 6063 oxides;
E.Rail for high strength aluminum alloy 6061 oxides;
F.Adornment to beams and railhead for PVC plastic resin materials;
G.Rail decoration layering for environmental protection rubber material;

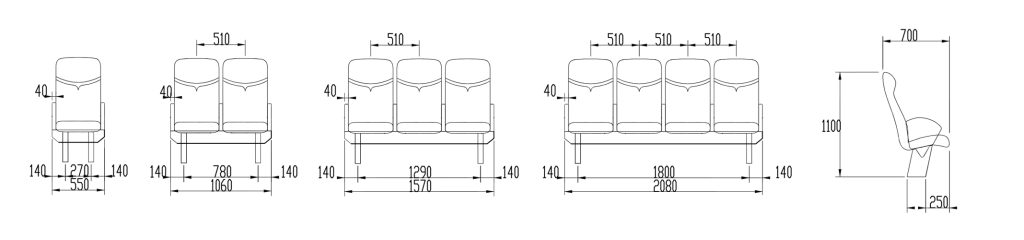

Drawings of YS010 Type Passenger Seat
