YS006 Type Passenger Seat

  • A fixed backrest or adjustable backrest angle is according to requirements.
  • The size of the seats could be customized.
  • The material of seating adopts fire-proof leather, PU/PVC leather, or fabric according to your requirements.
  • The anti-corrosion aluminum structure is durable.
  • Upholstery can be fabric or synthetic leather, or leather, Upholstery material is approved flame retardant testing
  • Luxury and comfortable ferry chairs for business class
  • Armrest could be flat open , curved open, flat closed arm rest and curved closed arm rest, folding arm rest.
  • Life jacket bag, life jack box, life jacket belt could be optional.

YS006 Type Passenger Seat

This type of marine seat will be suitable for the passenger seating of the passenger ships, yachts, hovercrafts, and so on. The back angle of the chair is freely wantonly regulated in 106 degrees to 124 degrees with an air spring and a teapoy is provided. The structure can support an acceleration of 12g. It is high back marine passenger seats for economy class. All marine seats which are manufactured by YSmarines are made from high-quality corrosion-resistant aluminum. Aluminum cushion and backrest frame, aluminum. Upholstery can be fabric or synthetic leather, or leather and the upholstery material is approved flame retardant testing.

Basic configuration:

Seat cushion and the back of a chair(including magazine bag), backrest angle adjustment ,with united and decorative head, armrest, chair foot, an adornment to install rails, railhead, beam, rail decoration layering, installation accessories;

Optional configuration:

Angle adjustable backrest, seat number scarf, life jacket bag, seat belt, color optional, front table tray, back table tray, meal trays, headrest, antimacassar, etc.


A. Chair surface is leather or fabric flame retardant;
B. Back for high-density polyester one-time forming high cold foam spring back fire sponge;
C. For high-density polyester one-time forming high cold foam cushion spring backfire sponge;
D. Seat beams, chair foot, armrest for high strength aluminum alloy 6063 oxides;
E. Rail for high strength aluminum alloy 6061 oxides;
F. Adornment to beams and railhead for PVC plastic resin materials;
G. Rail decoration layering for environmental protection rubber material;

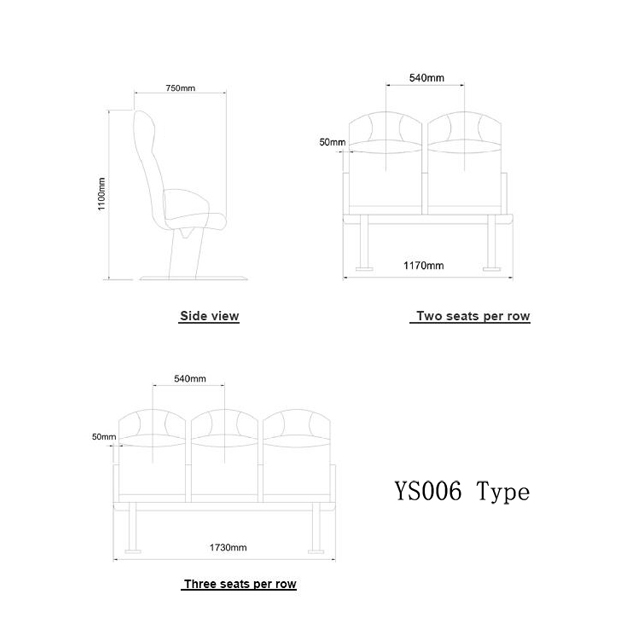

Drawings of YS006 Type Passenger Seat
