YS002 Type Passenger Seat

  • Simple design lightest weight ferry seats for economy class
  • Lower backrest seat popular model
  • The size of the seats could be customized
  • Fixed backrest or adjustable backrest angle
  • The anti-corrosion aluminum structure is durable
  • Upholstery can be fabric or synthetic leather, or leather, upholstery material is approved flame retardant testing
  • High-quality corrosion-resistant aluminum. Aluminum cushion and backrest frame, aluminum beams, legs, armrests, tracks
  • Armrest could be flat open , curved open, flat closed arm rest and curved closed arm rest, folding arm rest.
  • Life jacket bag, life jack box, life jacket belt could be optional

YS002 Type Passenger Seat

The ferry passenger seats have a life jacket storage box under the chair seat. Their surface is made from waterproof material. They adopt electrostatic spray technology after antirust treatment and sealing has been done on the surface of the seat frame. Back cushion with high resilience and the flame-retardant sponge is made by adopting a low-temperature foam molding technique. They all have beautiful appearance and special design which makes people more comfortable when seating. They are widely used for passenger ships and yacht. ABS, DNV, CCS, NKK, LR, GL, BV, RINA are available for the passenger seats manufactured by YSmarines

Basic configuration:

Seat cushion and the back of a chair(including magazine bag), backrest angle adjustment ,with united and decorative head, armrest, chair foot, an adornment to install rails, railhead, beam, rail decoration layering, installation accessories;

Optional configuration:

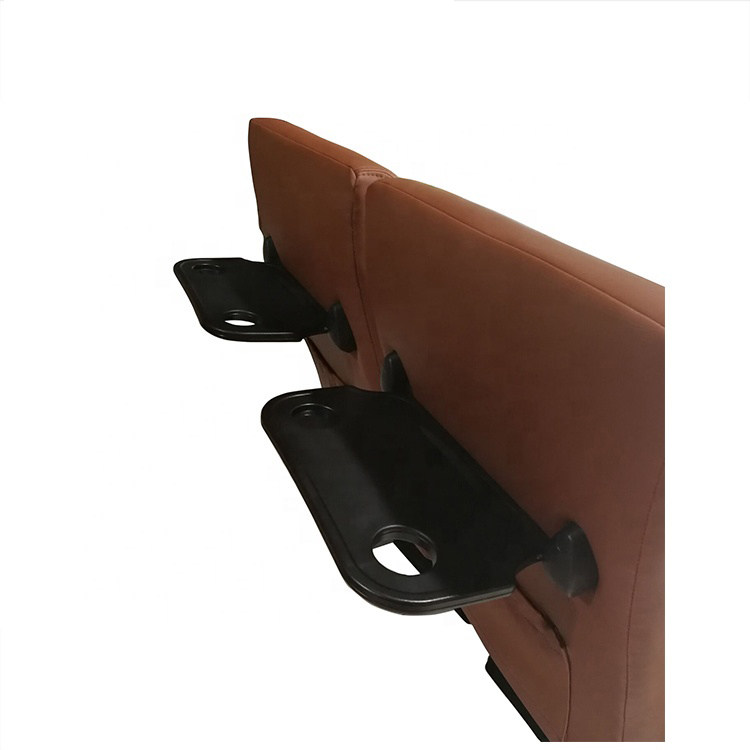

Angle adjustable backrest, seat number scarf, life jacket bag, seat belt, color optional, front table tray, back table tray, meal trays, headrest, antimacassar, etc.


  1. Chair surface is leather or fabric flame retardant;
  2. Back for high-density polyester one-time forming high cold foam spring back fire sponge;
  3. For high-density polyester one-time forming high cold foam cushion spring backfire sponge;
  4. Seat beams, chair foot, armrest for high strength aluminum alloy 6063 oxides;
  5. Rail for high strength aluminum alloy 6061 oxides;
  6. Adornment to beams and railhead for PVC plastic resin materials;
  7. Rail decoration layering for environmental protection rubber material;

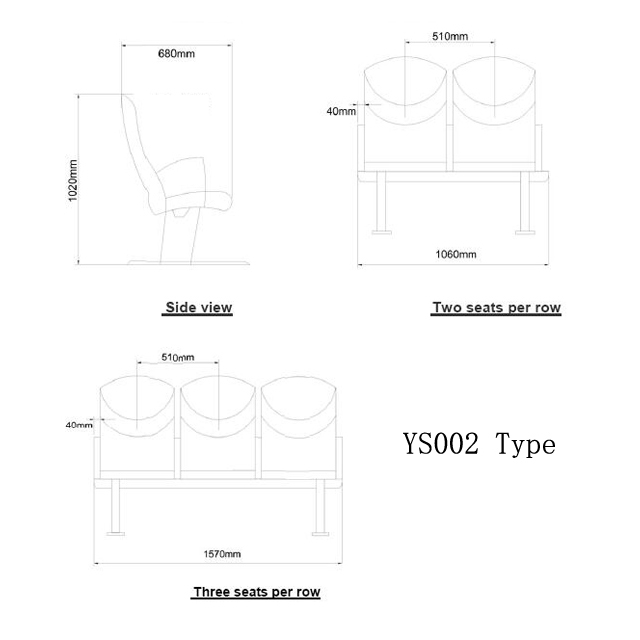

Drawings of YS002 Type Passenger Seat
