TR-008 Helmsman Chair


  • lifting column with Aluminum alloy structure;
  • Aluminum alloy structure is used for 360 degree dynamic rotation and cushion front and back sliding;
  • The seat back and the seat cushion adopts the Plastic inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather;
  • Aluminum alloy structure for the footrest;
  • Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;

Function data

  1. Upper part of the seat can be moved back and forth of 120mm;
  2. The seat of pneumatic lifting regulating range0-120mm;
  3. The seat can rotate 360°and locked ,4-point positioningcontrol;
  4. Seat pedal can rotate 90°and regression;
  5. Seat can bear more than 150FT.LBtorsion, reached AD grade standard

Function:

  1. Ergonomic design;
  2. Adjustable Leg support;
  3. Seat height may be adjusted;
  4. Seats can be moved back and forth;
  5. All-in-one seat design;
  6. Seat can rotated 360 degrees, multi-point positioning;
  7. Foot pedal height adjustable / folding;
  8. Column can be vertically lifting;

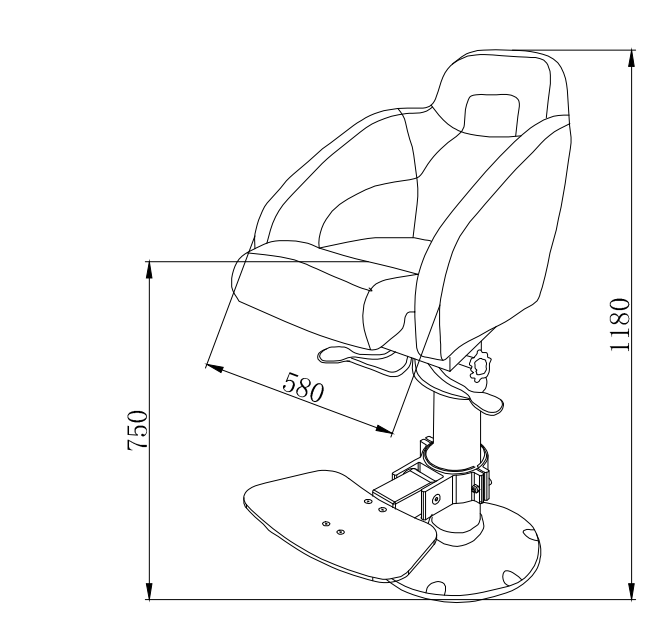

Drawings of TR-008 Helmsman Chair
