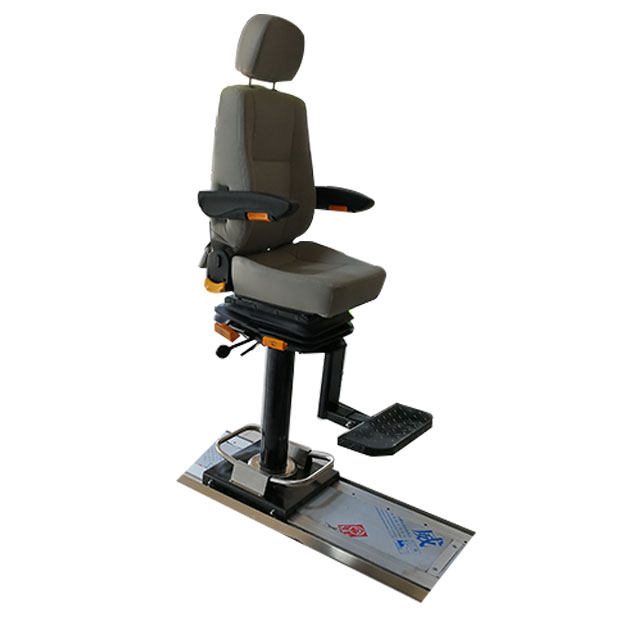

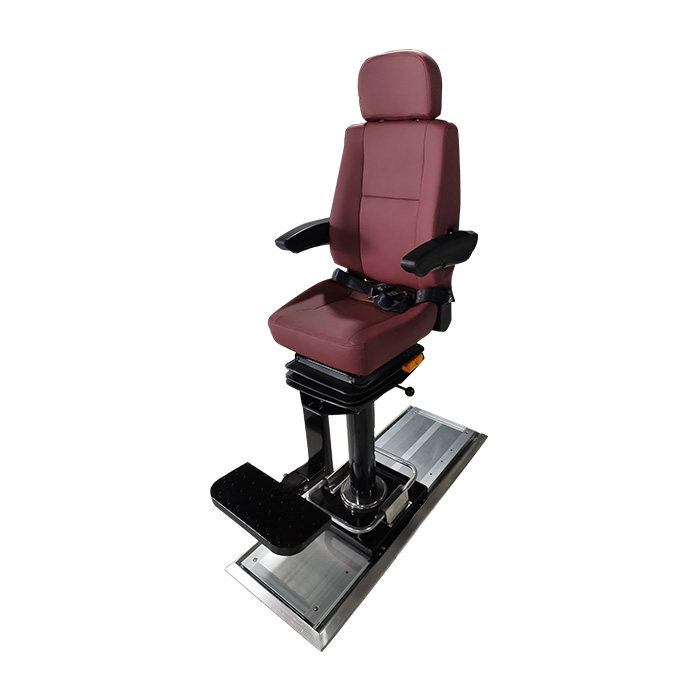

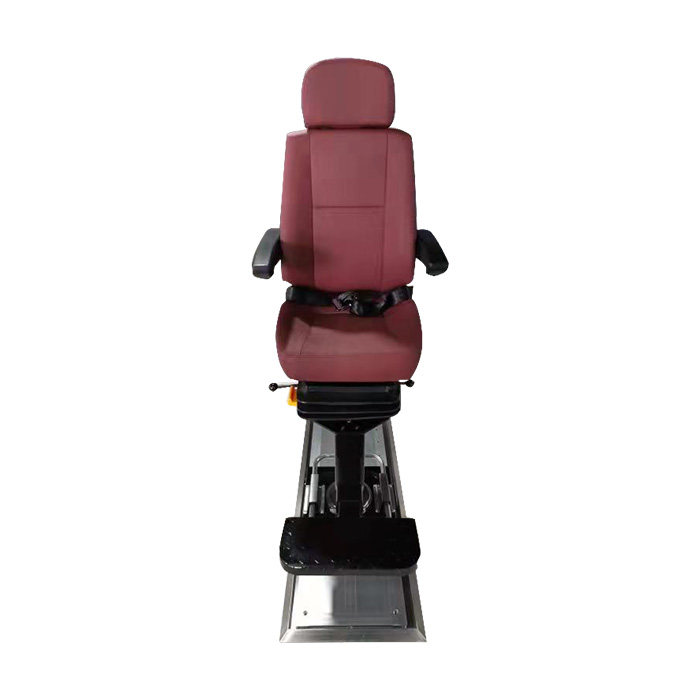

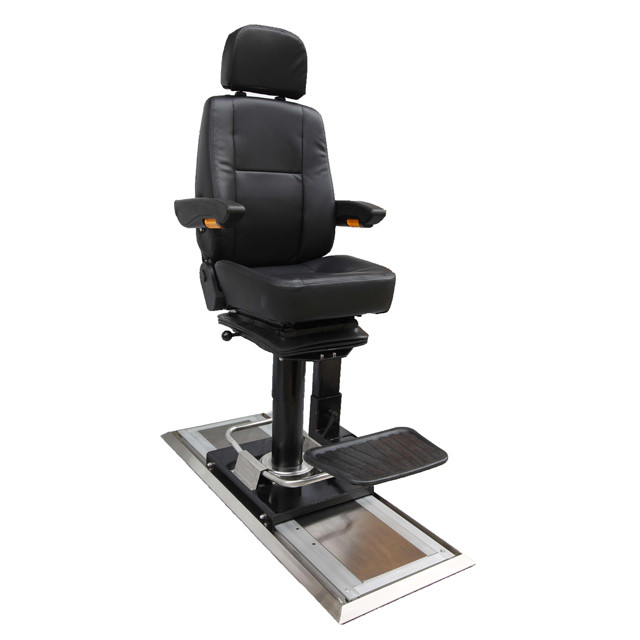

TR-006 Type Captain Seats

  • With 1.2M sliding rail, and the rail length could be also according to your requirements.
  • Steel column and pneumatic lifting.
  • The seat back and the seat cushion adopts the steel inner core and PU cold foam forming;
  • Disposable sponge synthesis, outsourcing leather or cloth;
  • Pedal steel plate inner core and environmentally friendly rubber synthetic;

TR-006 Type Captain Seats

They are marine captain seats with 1.2M sliding rail, steel column and pneumatic lifting. And the rail length could be customized. They have modern designs that are easy and comfortable to use fixed type. They have height adjustment with a sealed gas-powered cylinder. They are waterproof, moisture-proof function, surface a layer of fire prevention function. The customer can choose the material is genuine leather or artificial leather. The leather pilot captain’s chairs are for sale at YSmarines and they are totally in accordance with ISO standard, IMO standard

TR-006 Type Captain Seats

Characteristics Of TR-006 Type Captain Seats

1.Ergonomic design;
2.Adjustable backrest and headrest;
3. The seat height may be angle adjusted;
4. Seats can be moved back and forth;
5.Folding / angle-adjustable comfortable seat armrest;
6. The seat can rotate 360 degreesmulti-point positioning;
7.Foot pedal height-adjustable / folding;
8. The column can be vertically lifting;

TR-006 Type Captain Seats

Functions Of Captain Seats

1. The upper part of the seat can be moved back and forth of 120mm, height adjustment 60mm, seat inclination angle range of ±12°;
2. Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;
3.The seat of pneumatic lifting regulating range 0-150mm
4. The seat can rotate 360°and locked 4-point positioning control;
5. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;
6. Seat rail slide in 0-5000mm mobile,500mm rail width and depth 28mm ;
7. The seat can bear more than 150FT.LB torsion reached AD grade standard.

Drawings of TR-006 Type Captain Seats
Drawings of TR-006 Type Captain Seats

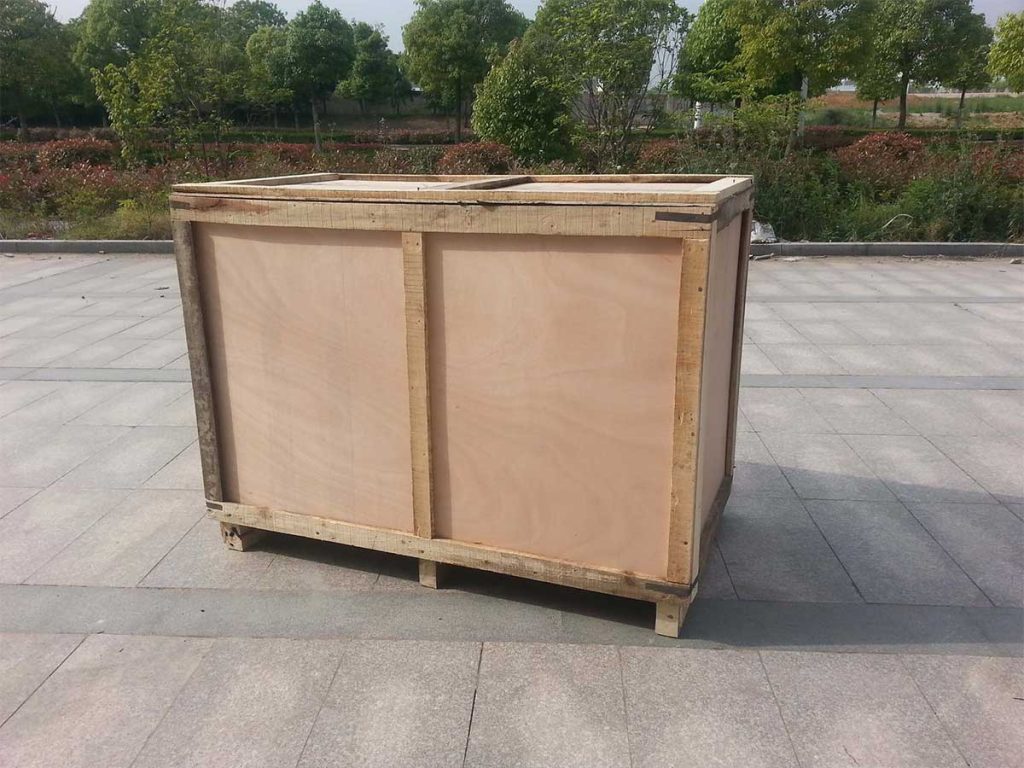

Packaging Of  YSmarines Captains Chair

1. Generally, we pack our goods in neutral brown cartons or wooden cases, The inside of the package is covered with multiple layers of bubble wrap, At the bottom of the package, it is fixed by a bracket. On the outside of the box, the shipping mark will be marked to facilitate the customer to receive the goods.

2. We can also customize the packaging according to the customer’s requirements.

Packaging Of  YSmarines Captains Chair
Packaging Of  YSmarines Captains Chair

Applications Of Captain Seats

Applications Of Captain Seats
Applications Of Captain Seats

FAQ Of YSmarines Marine Captain Seats

Q1: How long can I get a reply to my inquiry?
A: We will reply to you for your inquiry in 24 hours.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
Q4. How about your delivery time?
A: Generally, it will take 5 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
