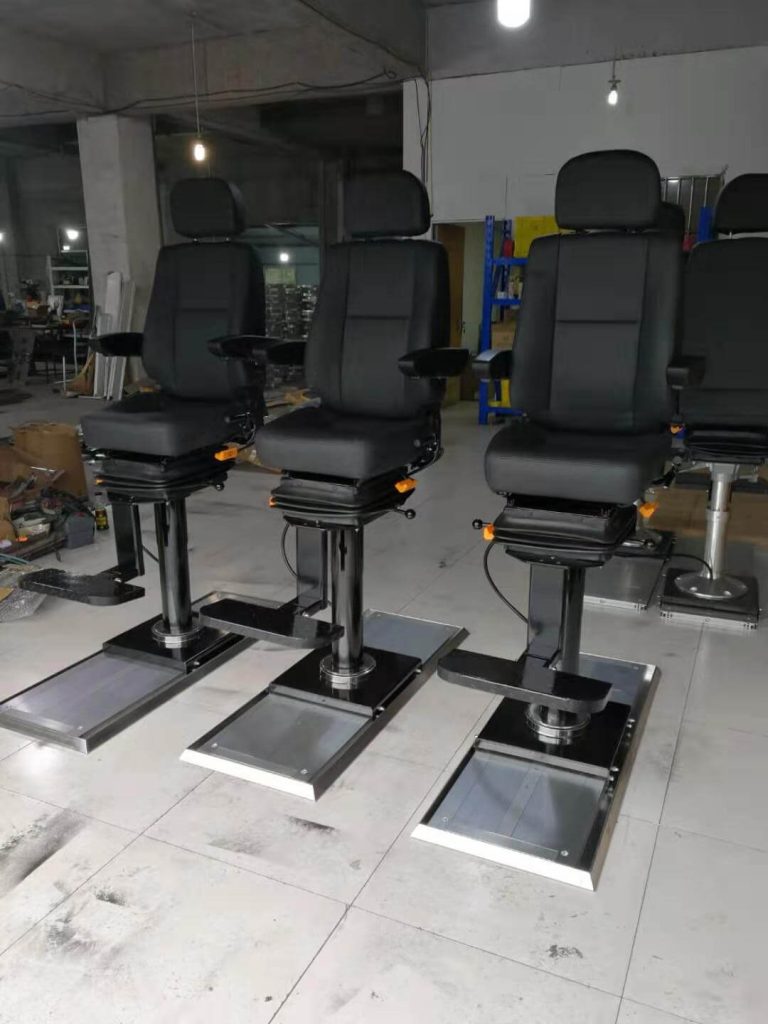

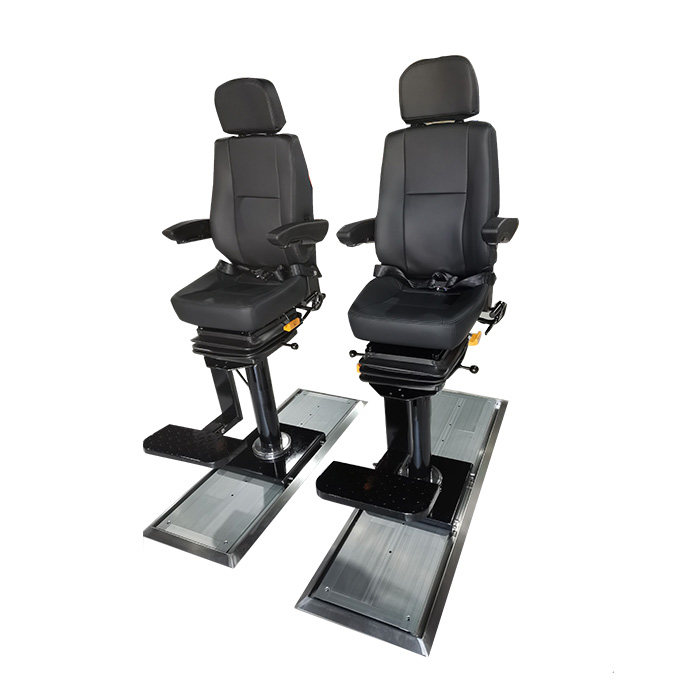

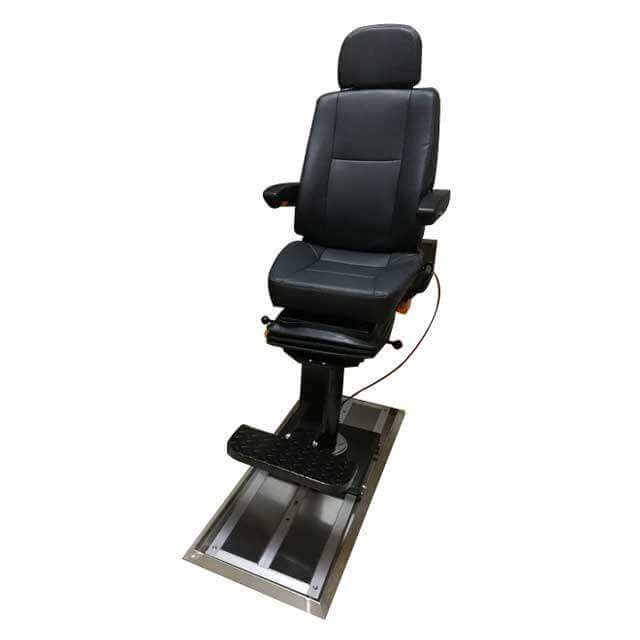

TR-003 Type Pilot Chair

  • With 1.2M sliding rail. And the rail length could be also according to your requirements.
  • Steel column and pneumatic lifting.
  • The seat cover is leather.
  • Seat can move in high strength double-slide rail;
  • Seat can rotated 360 degrees, multi-point positioning;

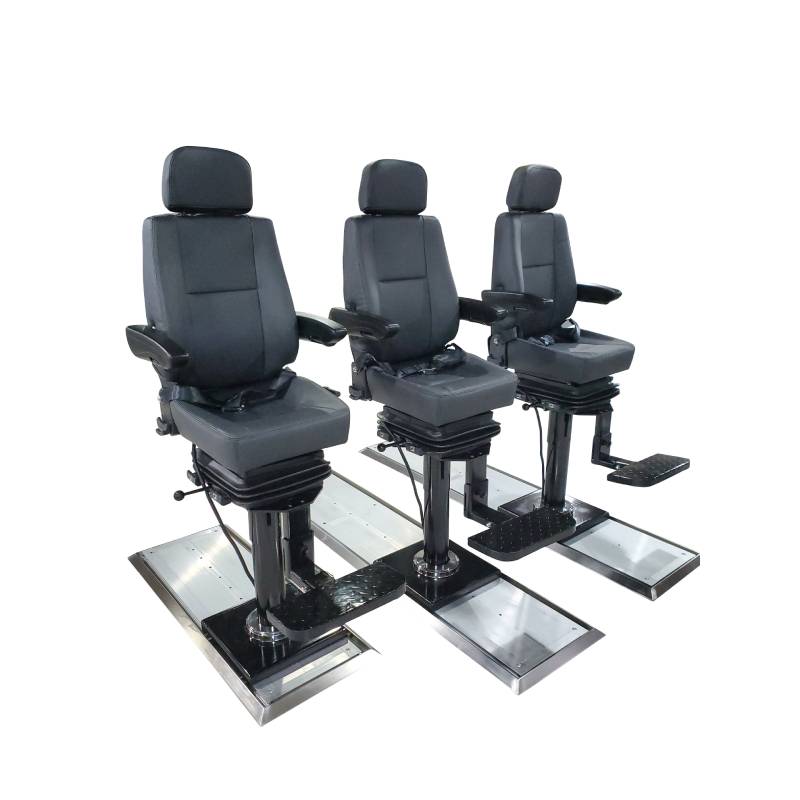

TR-003 Type Pilot Chair

The marine pilot chair is an excellent high back chair, 6″ fore/aft seat slide and 6″ quick touch height adjustment. Precision stainless steel roller bearings ensure easy chair movement along with floor slide. The chair is made of real leather or man-made leather. The pedal is made of rubber and steel core. Seat design delivers bottomless ride comfort via its integral serpentine-spring platform. All captains chair provided by YSmarines features a marinized finish to deliver superior protection against corrosion, abrasion, and impact.

TR-003 Type Pilot Chair

Characteristics Of Marine Pilot Chair

1. Ergonomic design;
2. The seat can move in high strength double-slide rail;
3. Adjustable backrest and headrest;
4. The seat height may be angle adjusted;
5. Seats can be moved back and forth;
6.Folding / angle-adjustable comfortable seat armrest;
7. The seat can rotate 360 degreesmulti-point positioning;
8.Foot pedal height-adjustable / folding;
9. The column can be vertically lifting.

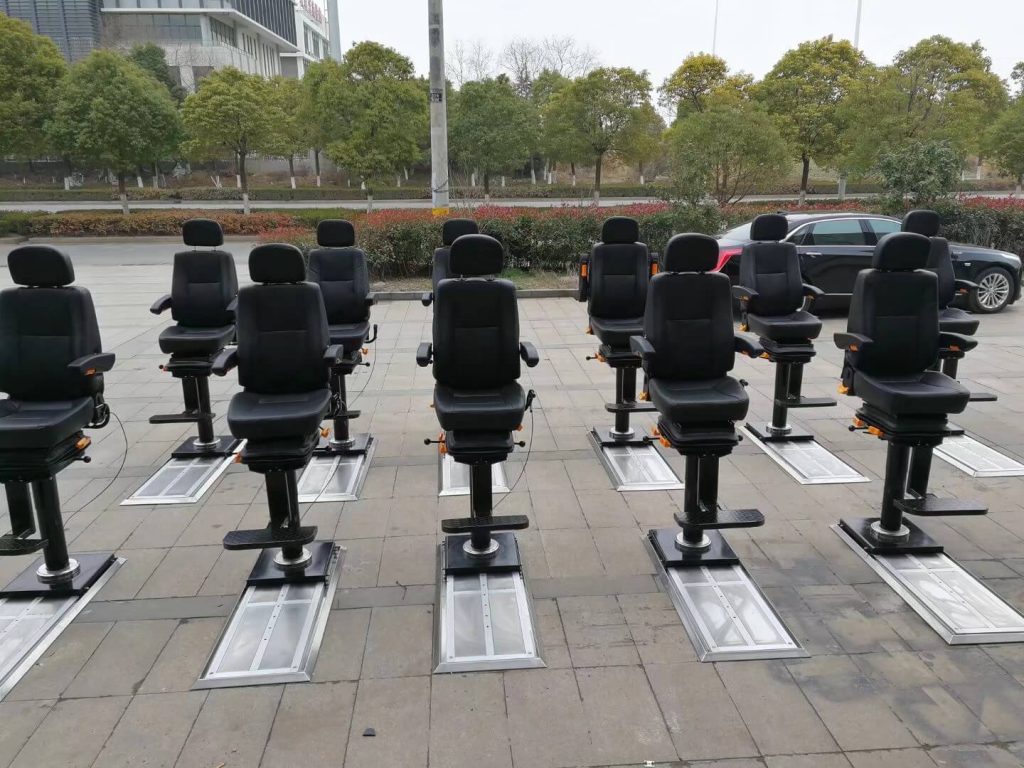

Marine Pilot Chair

Materials Of Marine Pilot Chair

1. Slide rail and positioning base uses the high strength aluminum alloy, inside and outside decorative mosaic made of stainless steel;
2.Lifting column with steel, stainless steel synthesis;
3. The seat lifting and tilting, move back and forth, back angle adjusting is used in steel structure;
4. The seat back and the seat cushion adopts the steel inner core and PU cold foam-forming disposable sponge synthesis, outsourcing leather or cloth;
5. Pedal steel plate inner core and environmentally-friendly rubber synthetic;
6. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;
7. The chair surface is made of black high-quality PU imitation leather, which can be customized into leather or cloth according to the requirements;
8. Chair shape and color can be customized according to customer requirements;
9. The standard track length of the sliding rail driving chair is 1.2 meters. If it needs to be extended, it can be customized according to the requirements.

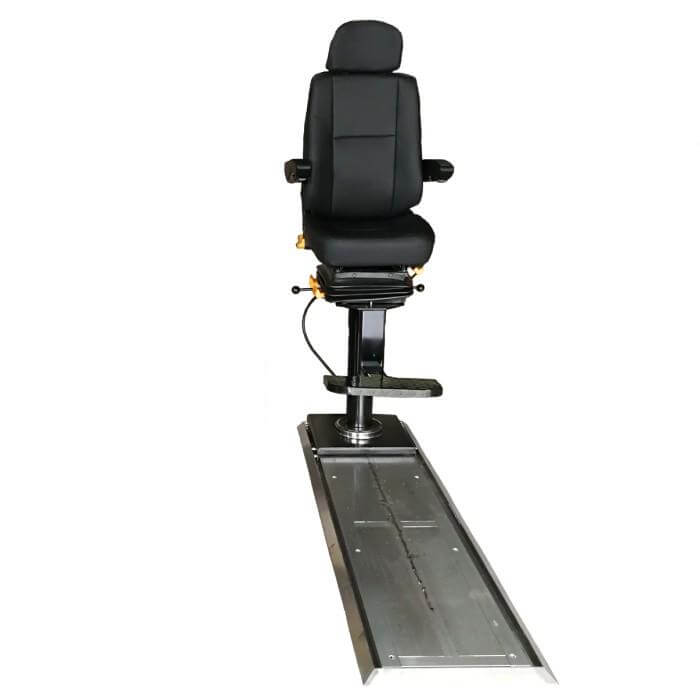

Marine Pilot Chair

Functions Of TR-003 Type Marine Pilot Chair

1. The upper part of the seat can be moved back and forth of 120mm, height adjustment 60mm, seat inclination angle range of ±12°;
2.Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;
3.The seat of pneumatic lifting regulating range 0-150mm
4. The seat can rotate 360°and locked 4-point positioning control;
5. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;
6. The seat can bear more than 150FT.LB torsion reached AD grade standard.

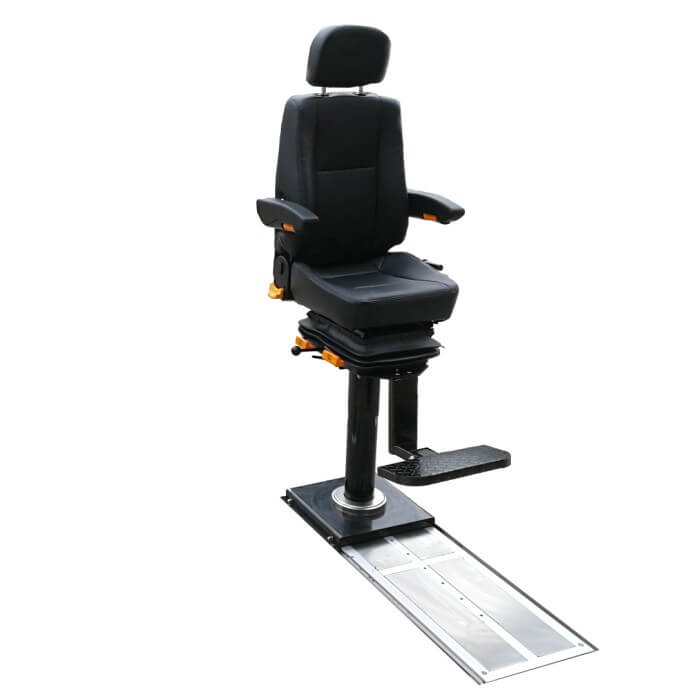

TR-003 Type Marine Pilot Chair

Technical Parameters Of TR-003 Type Marine Pilot Chair

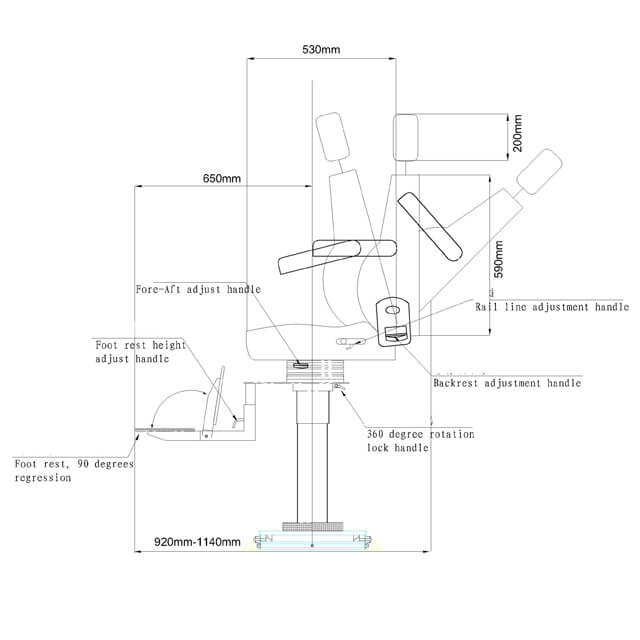

Drawings of TR-003 Type Marine Pilot Chair

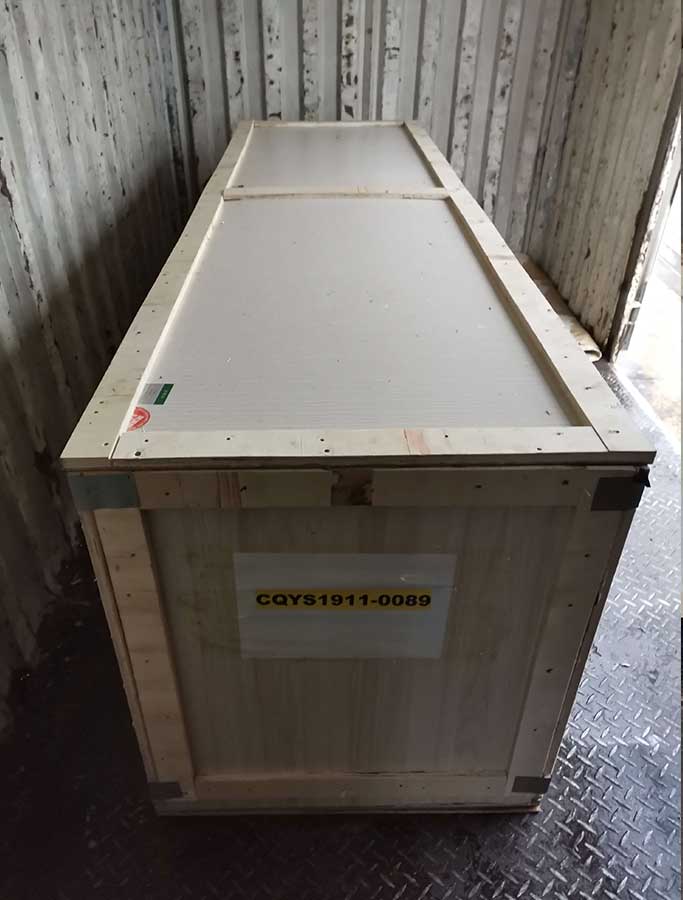

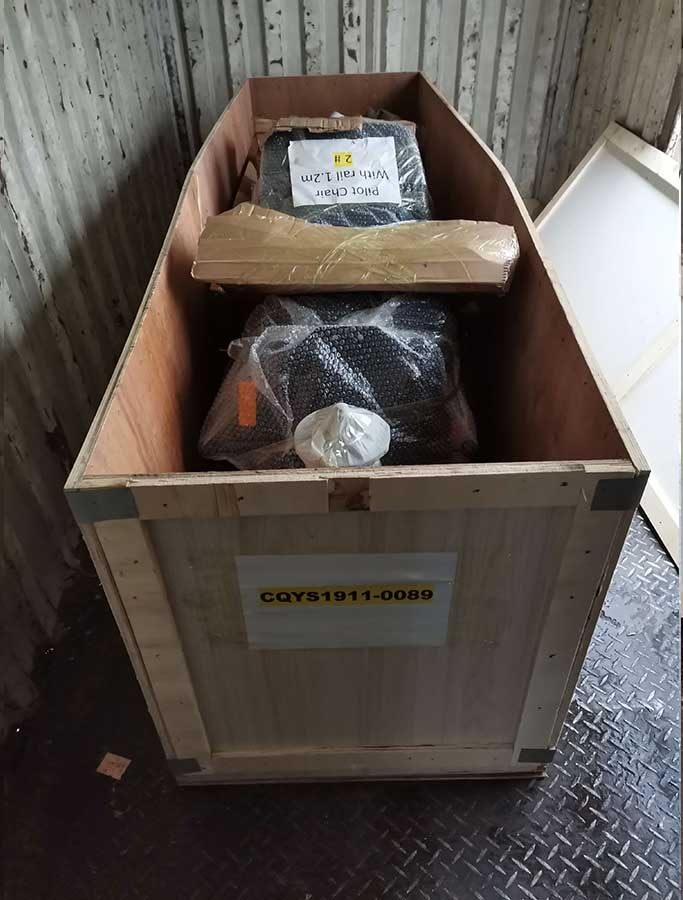

Packaging Of  YSmarines Marine Pilot Chair

1. Generally, we pack our goods in neutral brown cartons or wooden cases, The inside of the package is covered with multiple layers of bubble wrap, At the bottom of the package, it is fixed by a bracket. On the outside of the box, the shipping mark will be marked to facilitate the customer to receive the goods.

2. We can also customize the packaging according to the customer’s requirements.

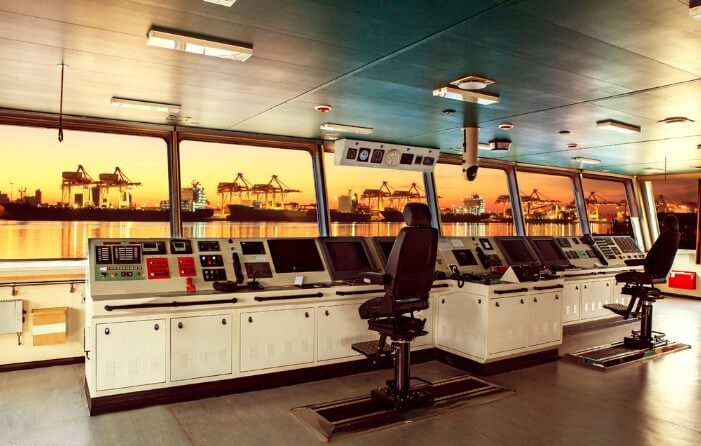

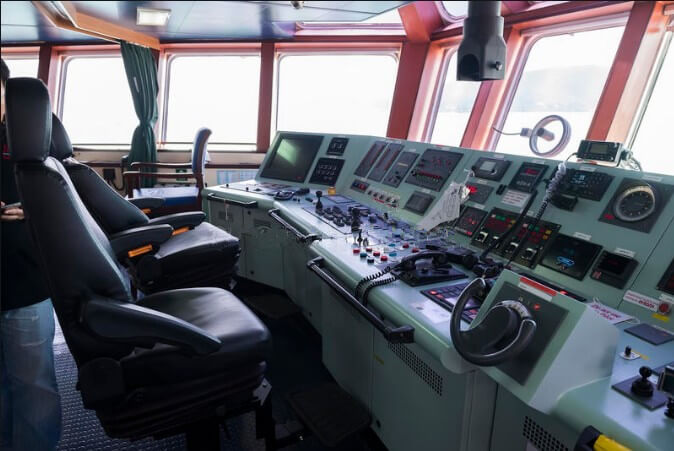

Applications Of Marine Pilot Chair

Recommended Transportation Selections Of Marine Pilot Chair

By Express

By Air Transportation

By Sea Transportation

Suitable for sample order or <50kg goods

Fast 3~10 days

High shipping cost

Door to door service

Suitable for >50kg goods

Fast 3~7days

Lower than the express cost

Airport to airport service

Professional broker needed

Suitable for >300kg goods

Fast 7~45days

Lowest cost

Port to port service

Professional broker needed

FAQ Of YSmarines Marine Pilot Chair

Q1: How long can I get a reply to my inquiry?
A: We will reply to you for your inquiry in 24 hours.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
Q4. How about your delivery time?
A: Generally, it will take 5 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
