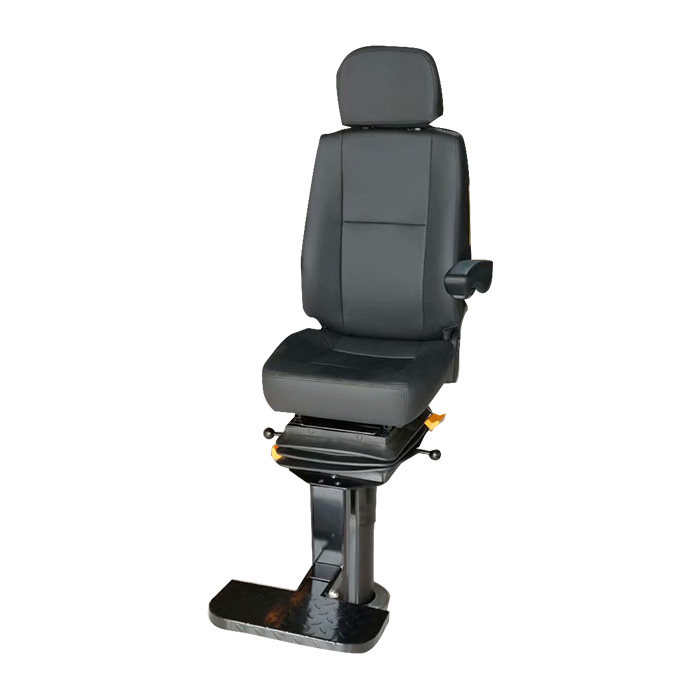

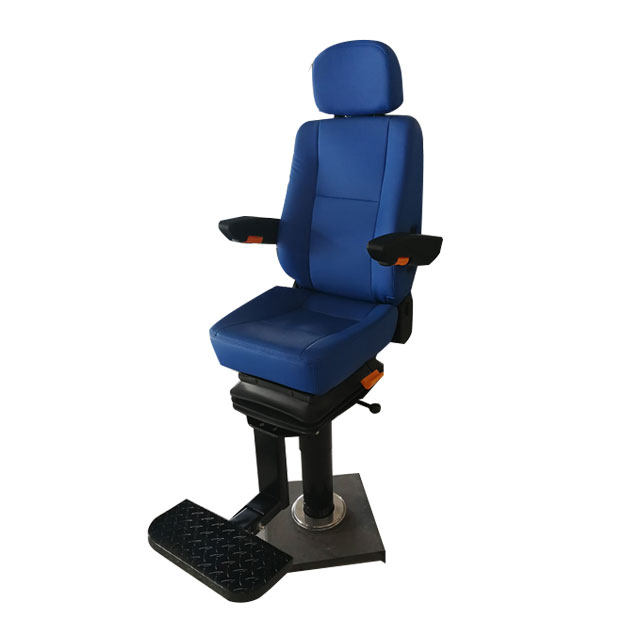

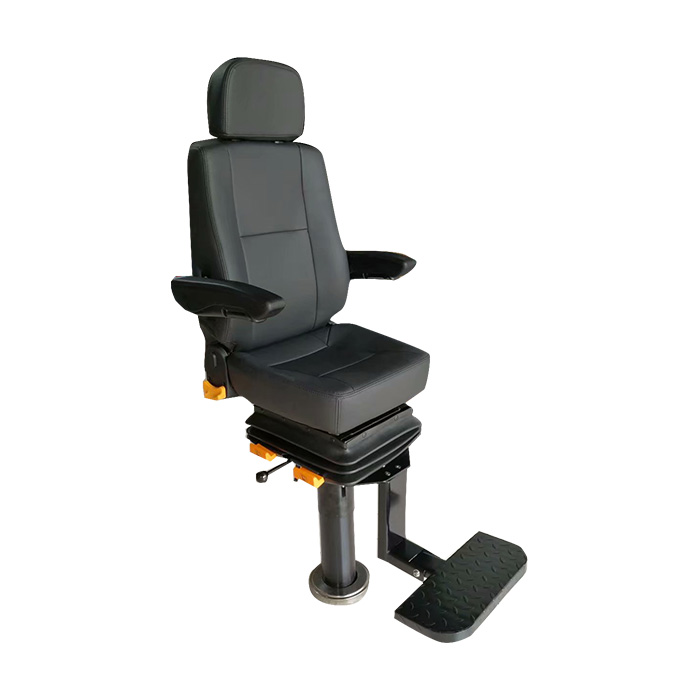

TR-001 Type Captain Seats

  • The seat cover is leather and it has an aluminium frame.
  • Adjustable backrest and headrest;
  • Seats can be moved back and forth;
  • Folding / angle-adjustable comfortable seat armrest;
  • Seat can rotated 360 degrees, multi-point positioning;
  • Foot pedal height adjustable / folding;

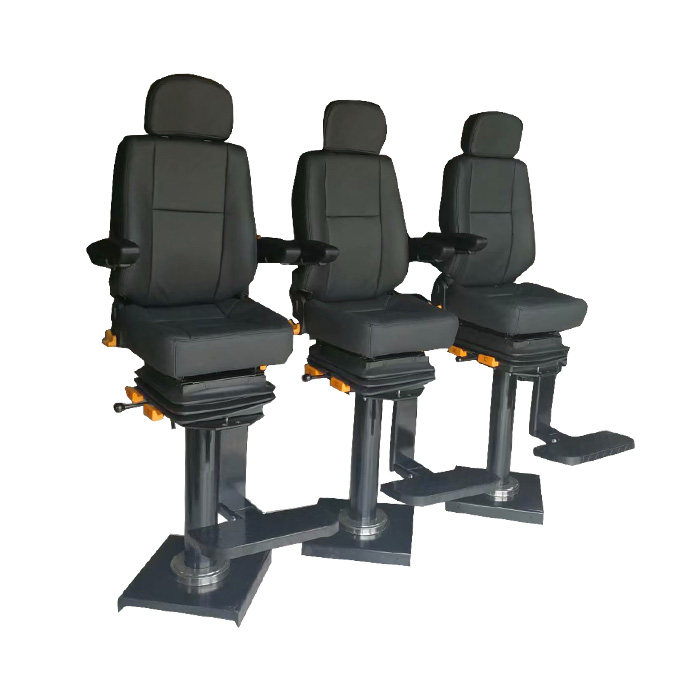

TR-001 Type Captain Seats

The leather captain seats are fixed types, good stability. It doesn’t take up much space and is easy to install. Lifting system adopts pneumatic lifting, imported from Germany stainless steel cylinder, chair surface height from the ground lifting stroke is 700mm-870mm, lifting the handle to adjust, lifting column for aluminum alloy material. The armrest can be required through the knob on the angle adjustment, the head pillow with adjustable height. Steel core and environmental protection rubber product synthesis by the pedal.

TR-001 Type Captain Seats

YSamarins is a professional marine product manufacturer and can supply various kinds of captain, pilot seats, best prices guaranteed. Every chair made by YSmarines is designed to be both comfortable and as ergonomically correct as possible. The structural strength and materials of the chair are all selected according to the requirements of IMO and HSC. The fabric and sponge meet the flame retardant requirements of IMO FTPC PART8. At the same time, we can provide a CCS or MED certificate for you.

TR-001 Type Captain Seats

Characteristics Of Leather Captain Seats

1. Ergonomic design;
2. Adjustable backrest and headrest;
3. The seat height may be angle adjusted;
4. Seats can be moved back and forth;
5.Folding / angle-adjustable comfortable seat armrest;
6. The seat can rotate 360 degreesmulti-point positioning;
7.Foot pedal height-adjustable / folding;
8. The column can be vertically lifting.

 Leather Captain Seats

Materials Of Captain Seats

1.lifting column with steel、stainless steel synthesis;
2. The seat lifting and tilting, move back and forth, back angle adjusting is used in steel structure;
3. The seat back and the seat cushion adopts the steel inner core and PU cold foam-forming disposable sponge synthesis, outsourcing leather or cloth;
4. Pedal steel plate inner core and environmentally-friendly rubber synthetic;
5. Pneumatic lifting core components pneumatic bar the use of German imports of Stabilus;
6. The chair surface is made of black high-quality PU imitation leather, which can be customized into leather or cloth according to the requirements;
7. Chair shape and color can be customized according to customer requirements;

TR-001 Type Captain Seats

Functions Of TR-001 Type Captain Seats

1. The upper part of the seat can be moved back and forth of 120mm, height adjustment 60mm, seat inclination angle range of ±12°;
2.Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down 50mm, handrest multi-point positioning control;
3.The seat of pneumatic lifting regulating range 0-150mm
4. The seat can rotate 360°and locked 4-point positioning control;
5. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;
6. The seat can bear more than 150FT.LB torsion reached AD grade standard.

TR-001 Type Captain Seats

Technical Parameters Of TR-001 Type Captain Seats

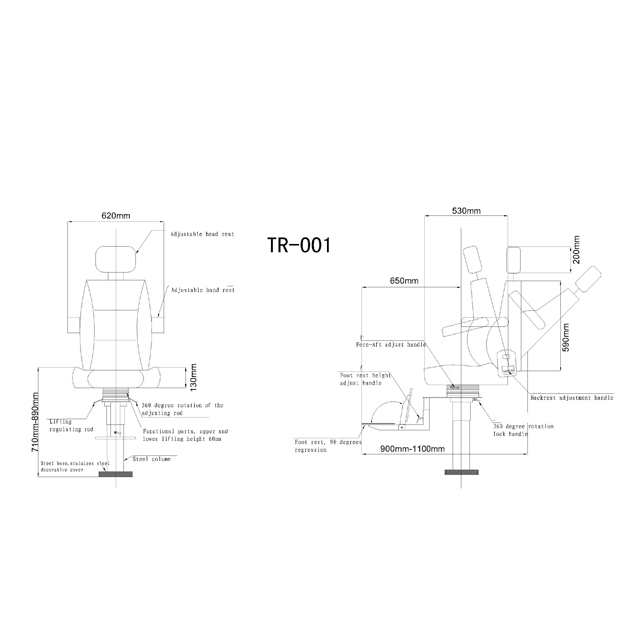

Drawings of TR-001 Type Captain Seats

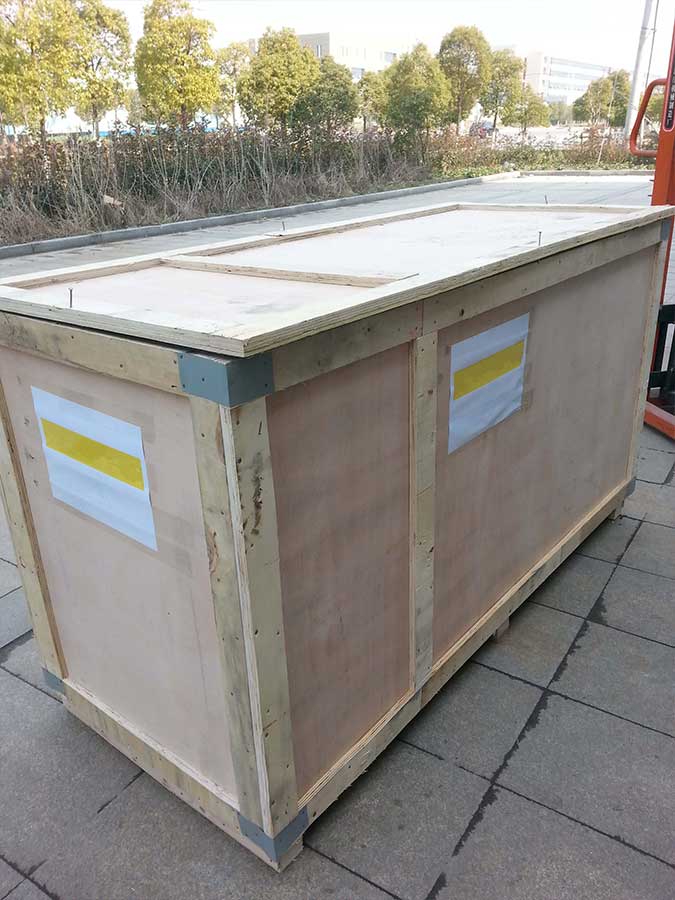

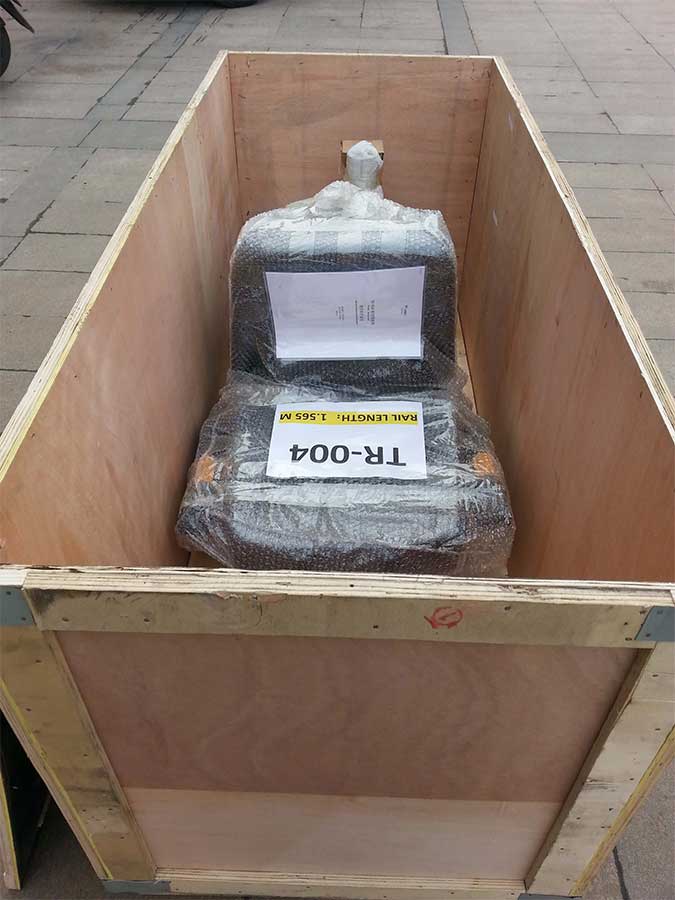

Packaging Of  YSmarines Captain Seats

1. Generally, we pack our goods in neutral brown cartons or wooden cases, The inside of the package is covered with multiple layers of bubble wrap, At the bottom of the package, it is fixed by a bracket. On the outside of the box, the shipping mark will be marked to facilitate the customer to receive the goods.

2. We can also customize the packaging according to the customer’s requirements.

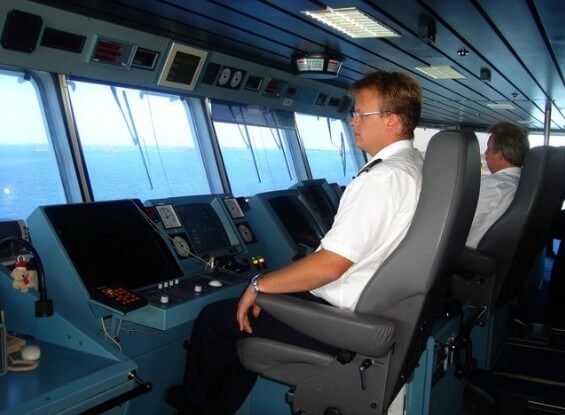

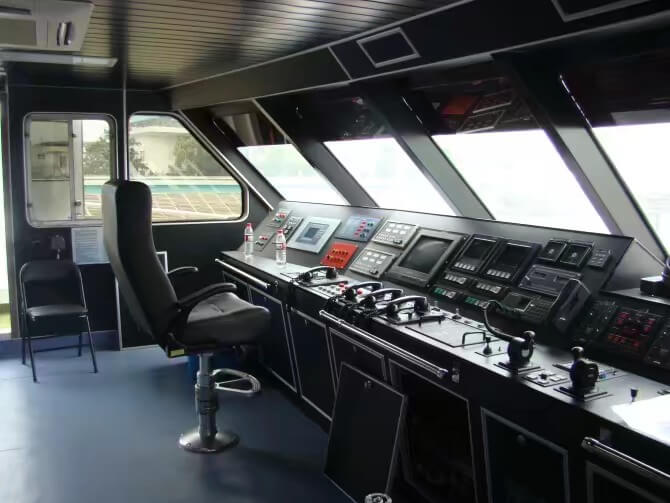

Applications Of Captain Seats

Recommended Transportation Selections Of Captain Seats

By Express

By Air Transportation

By Sea Transportation

Suitable for sample order or <50kg goods

Fast 3~10 days

High shipping cost

Door to door service

Suitable for >50kg goods

Fast 3~7days

Lower than express cost

Airport to airport service

Professional broker needed

Suitable for >300kg goods

Fast 7~45days

Lowest cost

Port to port service

Professional broker needed
