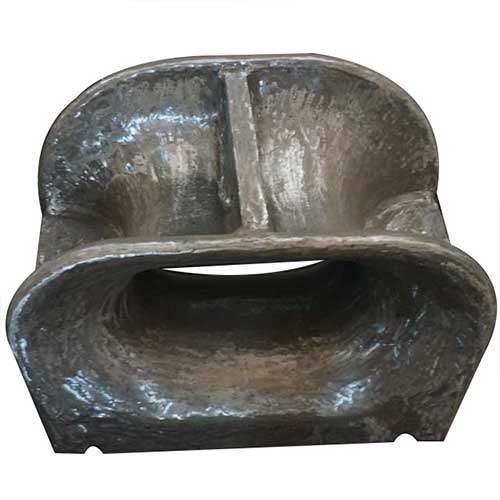

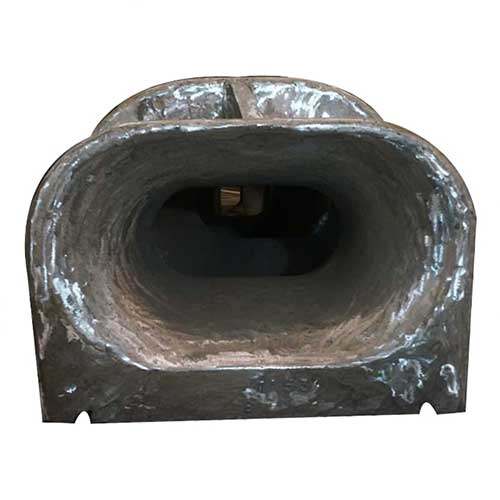

JIS F 2005-1975 Closed Chock

JIS F 2005-1975 Closed Chock

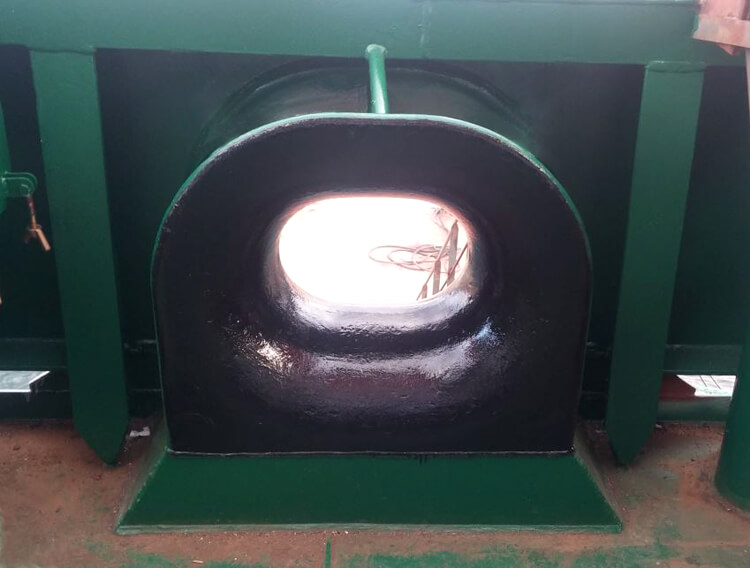

The closed chock is made according to the JIS F 2005-1975 standard of the Japanese Standard Association. The JIS F 2005 closed chock is one of the commonest mooring closed chocks used on vessels. The marine chocks are used for temporary mooring to guide rope from inboard to outboard a large vessel and applied at the vessel’s bow bulwarks to prevent wear and tear of the mooring line. The nominal size of 100mm to 200mm closed chocks are made of common cast steel and there are four stiffeners around the chock. The nominal size of 250mm to 500mm closed chocks are made of cast steel according to the requirement of standard JIS G 5101, and there are five stiffeners around the chock. The surface should be polished, galvanized and painted smoothly without any visual flaws, edges and burrs, which can reduce the friction of the mooring and towing ropes. The chocks can be supplied with foundation, which can be designed and manufactured according to the requirement on the vessel. The chocks are welded at a bow ship. YSmarines provides a high quality closed chock with the certificate of CCS, BV, ABS, etc.

Features Of JIS F 2005 Closed Chock

High quality marine used cast steel;
Finishing: the closed chocks shall be coated externally with an anti-corrosion protective finish;
Various kinds of the foundation for easy installation on the deck.

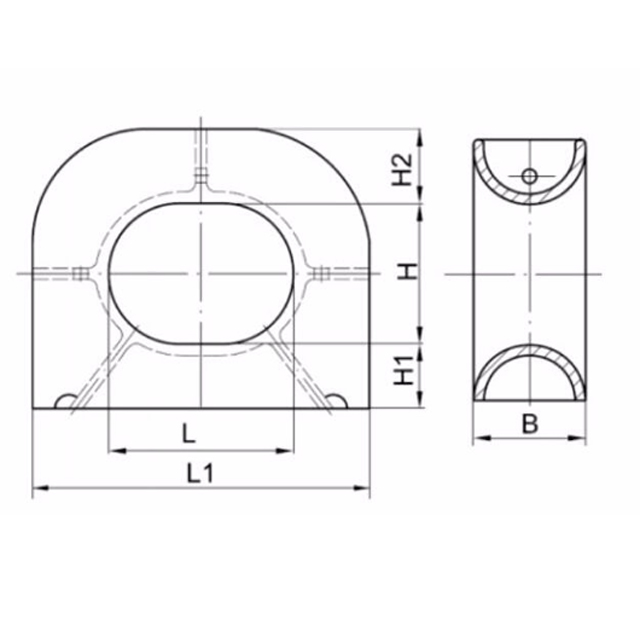

JIS F 2005-1975 Closed Chock
Nominal Size (mm)	Dimensions(mm)						Weight (kg)
	L	L1	H	H1	H2	B
100	100	170	76	30	35	60	3.7
150	150	250	110	45	50	90	10.5
200	200	340	150	60	70	120	24
250	250	434	200	80	92	160	48
300	300	528	250	100	114	200	83
350	350	600	250	110	125	220	103
400	400	672	250	120	136	240	136
450	450	746	250	130	148	260	184
500	500	820	250	140	160	280	232

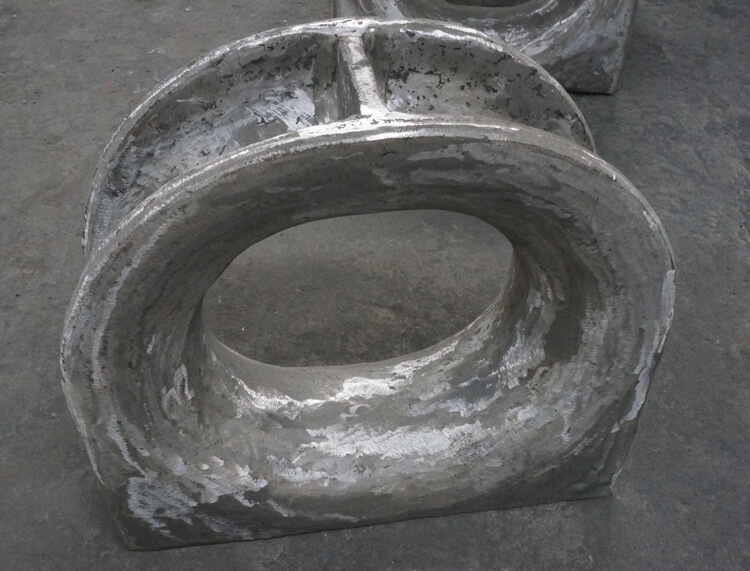

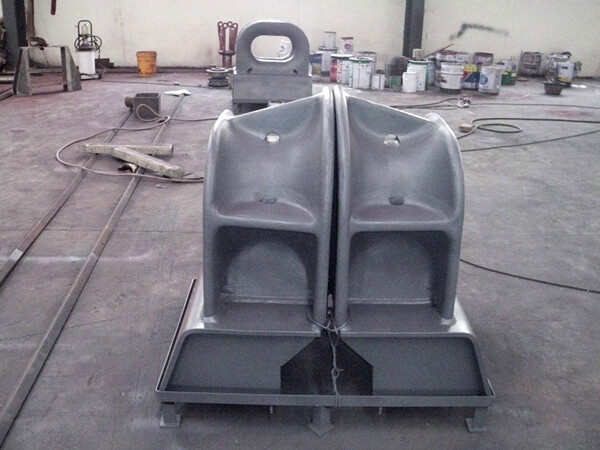

Workshop Of JIS F 2005-1975 Mooring Closed Chock

Package Of  JIS F 2005-1975 Marine Closed Chock

Packaged by wooden pallets;
Packaged by steel pallets;
Packaged within containers directly.

Applications Of Closed Chock

Tugboats;
Bulk carriers;
Containers;
Oil tankers;
LNG tankers;
Other ships or boats.
