ISO13713 Mooring Chock

ISO13713 Mooring Chock

The mooring chock is made according to the ISO 13713 standard and is a type of ship’s mooring and towing fitting installed on the shipside to lead the mooring and towing rope from the ship’s inboard to outboard. The mooring chocks are normally adopted for ships that use nylon or other synthetic ropes rather than wire ropes considering the small bending ratio  (for wire rope see ISO13729 closed chocks). The tensile strength of the rope is reduced depending on the bend radius through the chock in accordance with the rope manufacture’s guidelines. All surfaces, including welding, shall be free from any visible flaws or imperfections and in contact with the ropes, shall be free from surface roughness or irregularities likely to cause damage to the ropes by abrasion. The chock should be coated externally with an anti-corrosion protective finish.

The ISO13713 chock has two types depend on its installation including deck mounted one and bulwark mounted one. YSmarines is your trustworthy manufacturer for high-quality ISO13713 mooring chock.

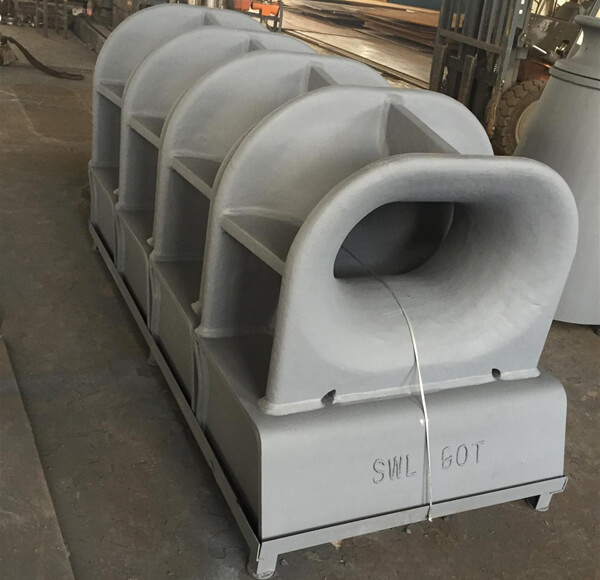

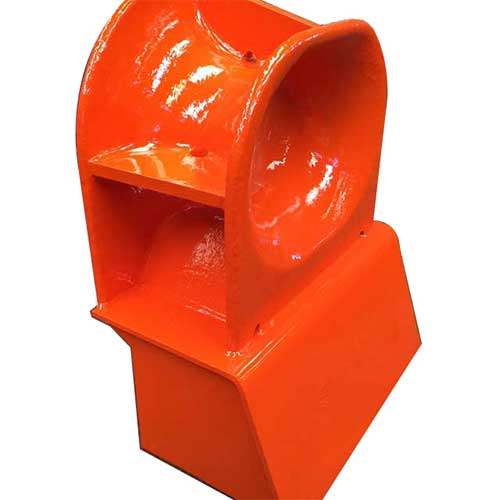

ISO13713 Deck Mounted Mooring Chock (Type A)

Material: Cast steel
SWL: 353KN to 1373KN
Finishing: the mooring chocks shall be coated externally with an anti-corrosion protective finish.
Installation site: on the deck

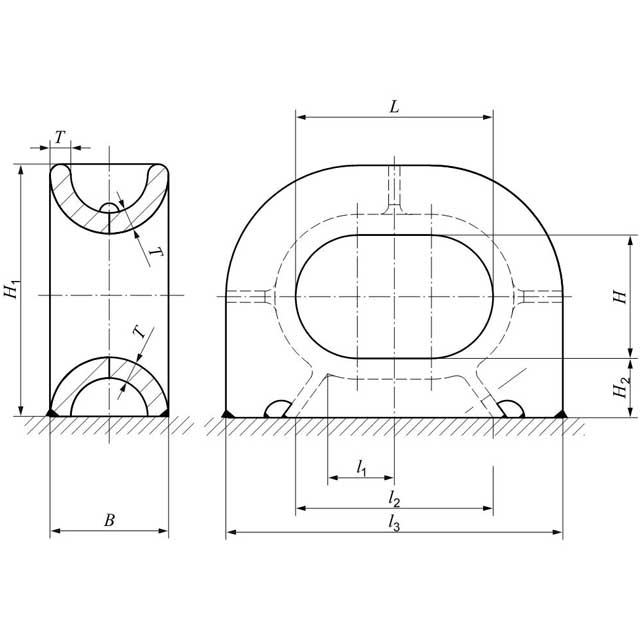

ISO13713 Deck Mounted Mooring Chock (Type A)
Nominal Size   L x H (mm)	l1	l2	l3	B	H1	H2	T	SWL		Weight (kg)
								(kN)	(t)
250×200	100	250	444	160	377	80	34	353	36	73
300×250	110	300	536	200	468	100	36	491	50	121
350×250	125	350	608	220	489	110	38	589	60	151
400×250	135	400	682	240	511	120	42	736	75	200
450×250	150	450	760	260	535	130	50	981	100	280
500x250A	175	500	832	280	556	140	52	1128	115	338
500x250B	175	500	840	280	560	140	60	1373	140	396

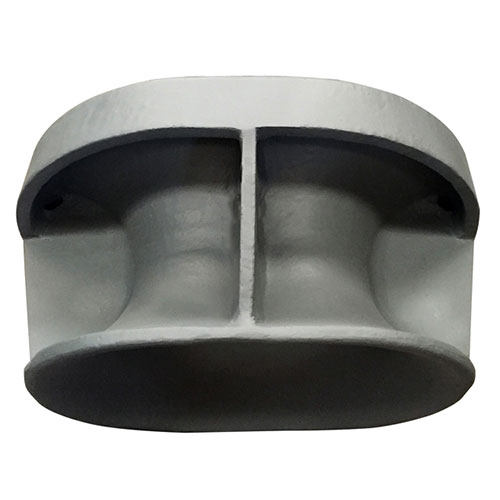

ISO13713 Bulwark Mounted Mooring Chock (Type B)

Material: Cast steel
SWL: 353KN to 1373KN
Finishing: the mooring chocks shall be coated externally with an anti-corrosion protective finish.
Installation site: on the bulwark

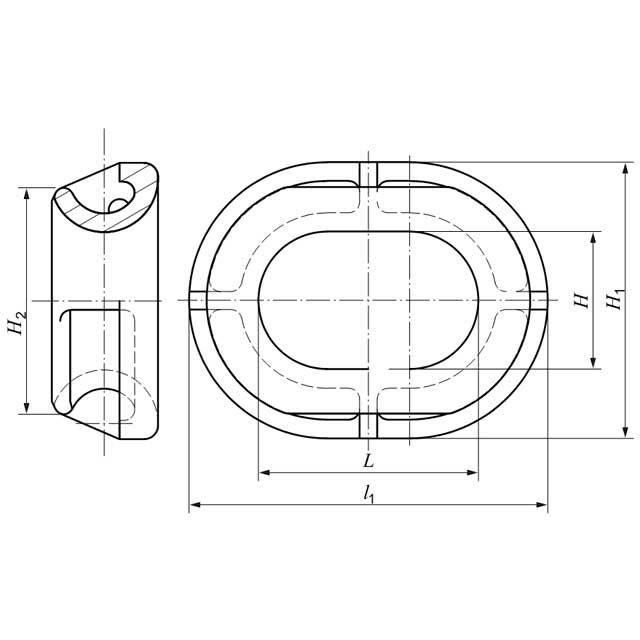

ISO13713 Bulwark Mounted Mooring Chock (Type B)
Nominal Size   L x H (mm)	l1	B	H1	H2	SWL		Weight (kg)
					(kN)	(t)
250×200	450	154	408	327	353	36	48
300×250	516	168	466	387	491	50	83
350×250	582	177	482	395	589	60	100
400×250	652	193	502	412	736	75	145
450×250	734	213	534	433	981	100	215
500x250A	812	237	562	447	1128	115	235
500x250B	828	253	578	466	1373	140	266

Package Of ISO13713 Mooring Chock

Packaged by wooden pallets;
Packaged by steel pallets;
Packaged within containers directly.

Applications Of ISO13713 Chock

Tugboats;

Bulk carriers;

Containers;

Oil tankers;

LNG tankers;

Other ships or boats.
