Bulwark (EU Type) Towing Chock


  • Material: Cast Steel
  • Nominal Size: 315*250mm to 1000*800mm
  • Weight:198KG to 1580KG

Bulwark Chock (EU Type) Towing Chock

The bulwark towing chock also known as EU type towing chock is installed on the bulwark. The bulwark towing chock is the towing fittings applied for the towing purpose by towing lines. It is made of cast steel, generally by ZG230-450 in Chinese standard. Both the material and types of marine chocks can be customized according to your requirements and design. The design mostly has high SWL. The surface of the towing chock is fine polished by a 2-layer of shop primer anti-rust painting after sandblasting 2.5 and well painted without any bur and the edge is to protect the towing ropes from broken during work. It is similar to NS 2589 chock, not often used in Asian ships. YSmarines design and manufacture the bulwark towing chock with the certificate of DNV-GL, BV, LRS, ABS, RINA, etc, best price guaranteed.

Material: Cast steel
Weight: 198kg to 1580kg
Finishing: the mooring chocks shall be coated externally with an anti-corrosion protective finish.
Installation site: on the bulwark

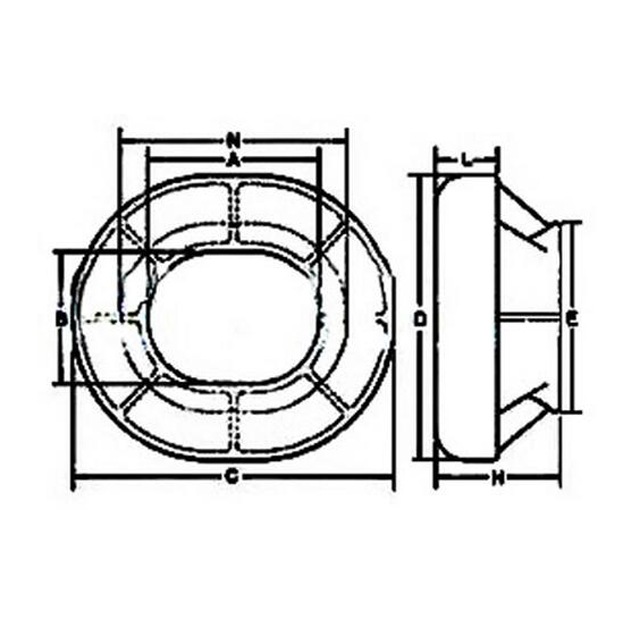

Drawings of Bulwark Chock (EU Type) Towing Chock

EU Type Towing Chock



Nominal size

(mm)



Weight

(kg)

Dimensions(mm)

A

B

C

D

E

H

L

N

315*250

198

315

250

695

630

432

342

168

497

425*280

358

425

280

925

780

516

450

224

661

600*315

547

600

315

1160

876

571

504

250

866

600*450

850

600

450

1160

1010

706

504

260

856

800*600

1200

800

600

1500

1300

860

580

290

1060

1000*800

1580

1000

800

1760

1560

1250

700

350

1450

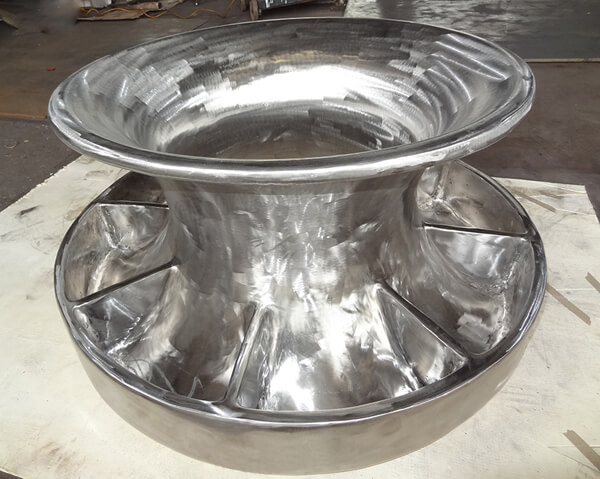

Workshop Of Bulwark Towing Chock

Workshop Of Bulwark Towing Chock

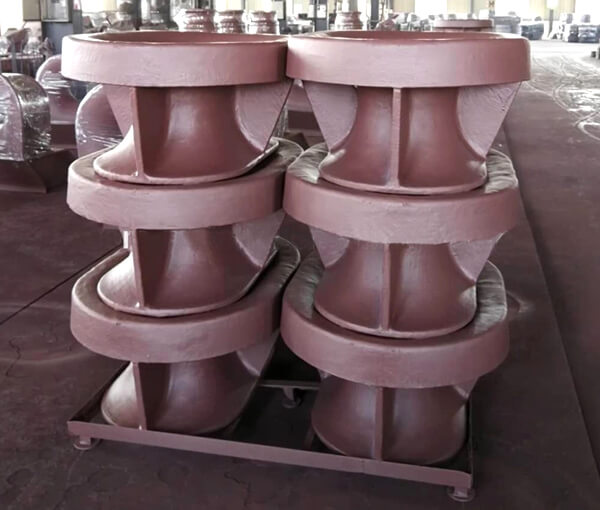

Package Of Bulwark Chock

Package Of Bulwark Chock

Packaged by wooden pallets;
Packaged by steel pallets;
Packaged within containers directly.
