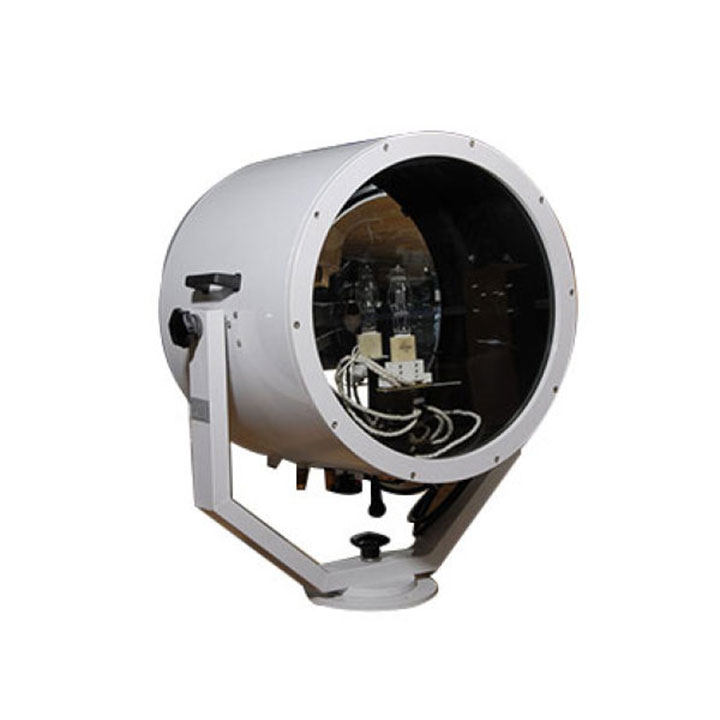

TZ5 Type SUZE canal Marine Searchlight
- The SUZE canal searchlight passes though the SUZE canal and the narrow sea-route.
- 220V/50HZ, 220V/60HZ, Power 2000W, 3000W. With a tungsten halogen lamp, GY 16 lamp holder.
- The light body adopts good quality aluminum alloy, good quality toughened glass lampshade.
- The light can bend for ±30°, adjust ±180°horizontally.
- Parallel light-beam, far illumination distance.
TZ5 Type SUZE canal Marine Searchlight
The marine searchlights are applied to the illuminations of ships over 3000. SC.G.T. pass though the SUZE Canal and the narrow sea-route for night navigation. They can search and illuminate the obstacle on the surface. The light body adopts good quality aluminum alloy and the weight is light. They adopt good quality toughened glass lampshade. The Illuminant adopts a tungsten halogen lamp. YSmarines is a leading marine equipment manufacturer in China and engaged in the production of marine searchlights with a professional team and advanced technology.
Product Characteristic:
1. Design with two bulbs structure can adjust the reflect effect between the ±5°horizontally on.
2. Equipped safe vent-valve under the lamp canister, can ensure the air pressure balance in and out the lamp canister.
3. The light can bend for ±30°, adjust ±180°horizontally.
4. Parallel light-beam, far illumination distance.
Production authentication:
1. Conform to GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to SUZE CANAL NAVIGATION RULES.
3. patent No. Is ZL 200630103646.9.
| Type | TZ5 |
| Voltage | 220V/50HZ, 220V/60HZ |
| Power | 2000W/3000W |
| Illuminant | Tungsten halogen lamp |
| Luminous flux | 53000lm/80000lm |
| Irradiation distance | ≥1800m |
| Lamp holder type | GY16 |
| Cable outside diameter | 12mm~14mm |
| Protection class | IP 56 |
| Material | Aluminum |
| Weight | 29kg |
| Ambient temperature | -30℃~+55℃. |
| Adjustment method | Horizontal rotation of 180°, pitch 30° |
| Installation | The base type |
