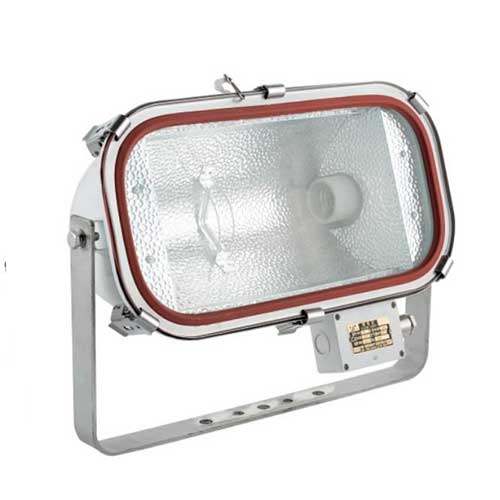

TG4, TG5, TG6 Type Marine Spotlight


  • AC220V, 50HZ/60HZ, Power 250W, 400W, 500W, 1000W.
  • With tungsten halogen lamp, High-pressure sodium lamp and Metal halide lamp illuminant. E40 lamp holder.
  • Compact structure and beauty appearance, good seal and anti-corrosive performance.

TG4, TG5, TG6 Type Marine Spotlight

The type of marine spotlight is applied to projecting illumination in outdoor places such as a boat, dock, port, store place, and petroleum platform, etc. It is made of high standard stainless steel. The lampshade adopts toughened glass and high-purify alumina m reflector with an excellent reflecting effect. It has a compact structure and a beautiful appearance with a good seal and anti-corrosive performance. The light can be adjusted upside 90°, down 45°angle. YSmarines can supply marine spotlights for sale, superior quality and cheap price guaranteed.

Production authentication:

1. Conform to international IEC Norm and international standard GN7000.7-2005.
2. Conform to GRADE ENTRY NORMS FOR STEEL SHIPS.

Type

TG4

TG5

TG6

Voltage

AC220V, 50HZ/60HZ

Power

500W/1000W

250W/400W

Illuminant

Tungsten halogen lamp

High-pressure sodium lamp

Metal halide lamp

Lamp holder

E40

Luminous flux

8500lm/22000lm

26000lm/47000lm

25000lm/36000lm

Cable outside diameter

10mm~12mm

Protection class

IP 67

Material

316 stainless steel

Weight

6kg

8kg

Ambient temperature

-30℃~+55℃.

Adjustment method

Up 90°, down45°





Annex

Illuminant type JTT

Ballast box
