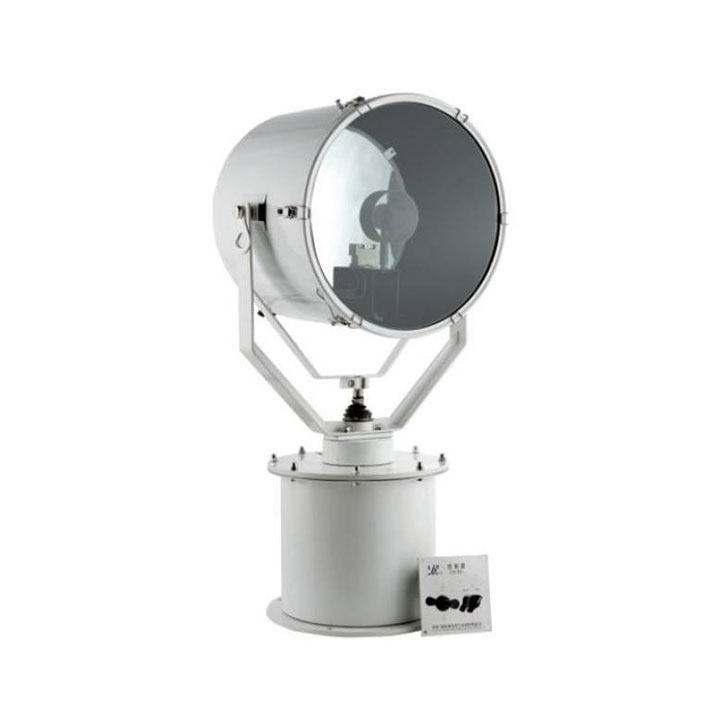

TG26,TG27, TG28 Type Marine Searchlight


  • The searchlight is applied to the far distance illumination and searching.
  • The lamp body and bracket are made of stainless steel, toughened glass-lampshade and aluminum base.
  • Parallel light -beam, far illumination distance, concentrated light.
  • TG26-A, TG27-A, TG28-A equipped with a special control box.

TG26, TG27, TG28 Type Marine Searchlight

The type of marine searchlight is suitable for the far distance illumination can be widely used for the various types of boats. It is featured with parallel light -beam with far illumination distance and is a concentrated light. The series of the searchlight has small measurement lightweight and long-distance illumination. It is built to be durable enough, there is no need to worry about it being damaged even if it gets accidentally dropped. This device is certified water safe. The marine search lights are supplied by YSmarines have super brilliant light, longer-lasting performance and durability, premium quality and the most competitive prices promised.

Product’s characteristic:

1. The lamp body and bracket are made of good quality stainless steel, a toughened glass-lampshade and an aluminum base.

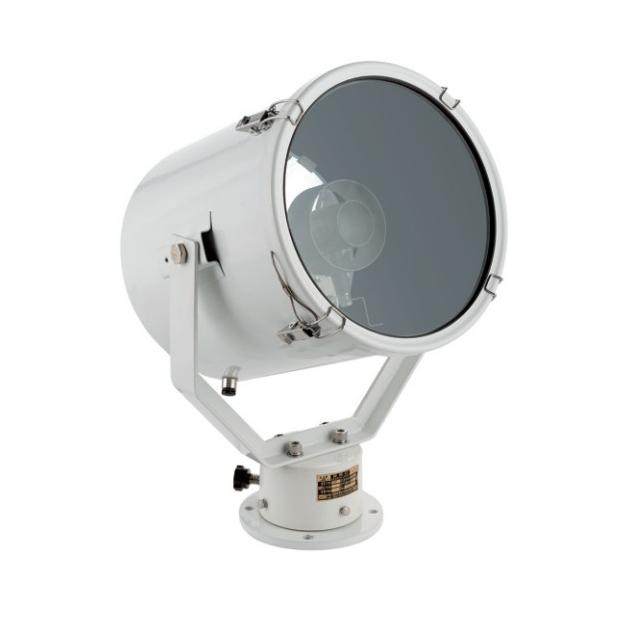

2. The lamp bend for ±30°by joystick, adjust 350°horizontally, equipped joystick.

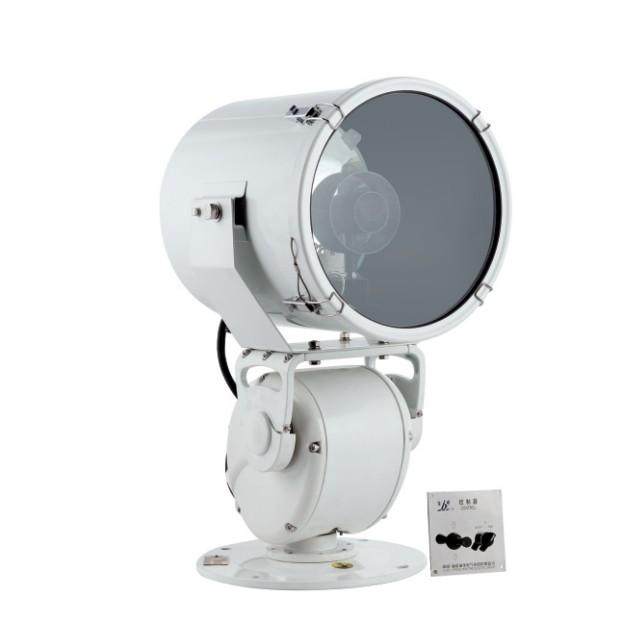

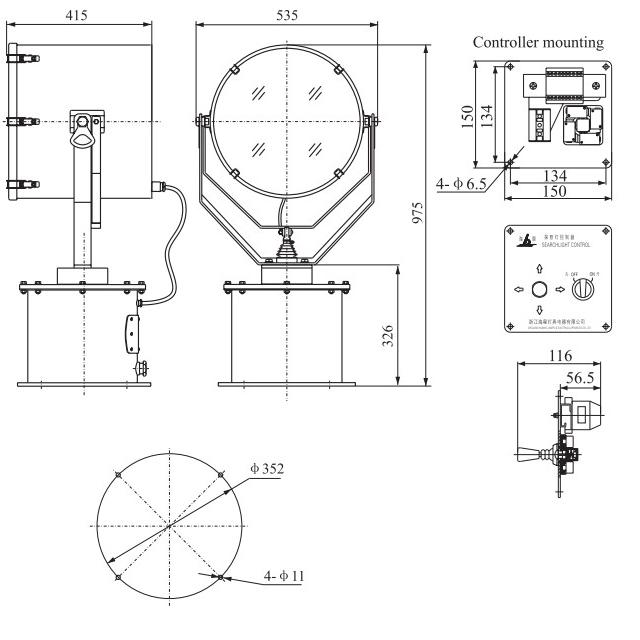

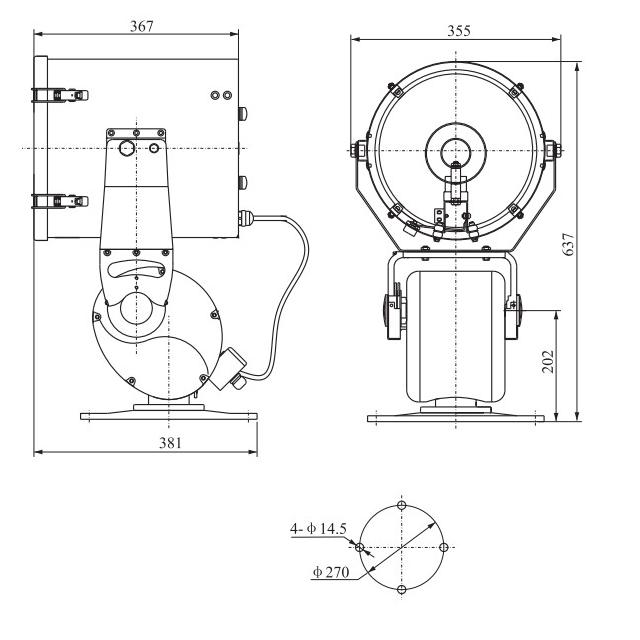

3. TG26-A, TG27-A, TG28-A adopts remote operation, cast aluminum alloy base, there are miniature gear motor in the body for controlling up and down, front and back, also equipped with a special control box which can operate the light on control table to horizontally bend for 20°~ 50°, bend velocity 3 degree/second.

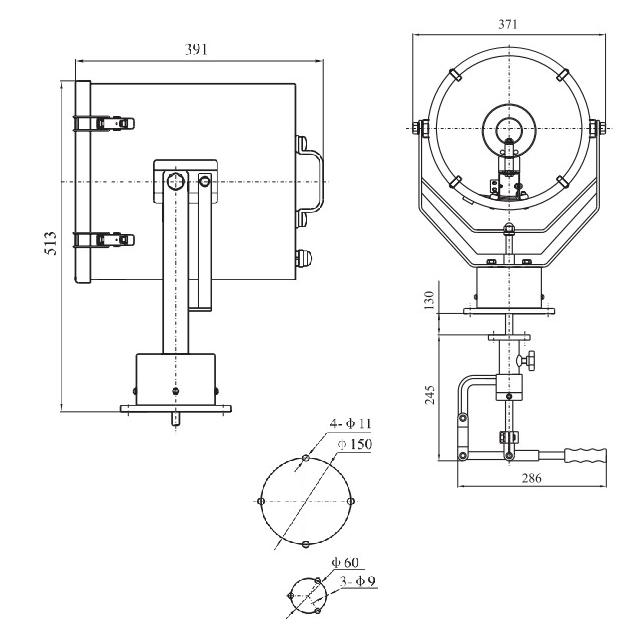

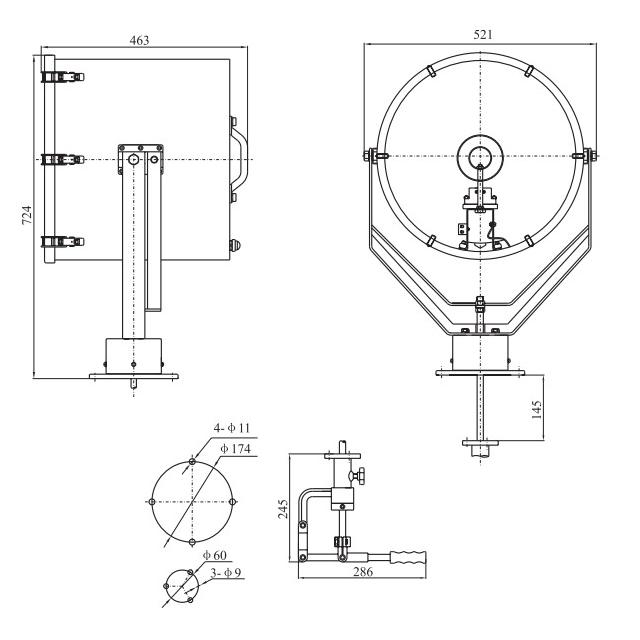

4. TG26-B, TG27-B, TG28-B adopt deck operation, it can control the body to rotate for 350°horizontally and bend for 30°, with flexible and convenient operation.

Production authentication:

1. Conform to GRADE ENTRY NORMS FOR STEEL SHIPS.



Type



Voltage



Power



Lamp holder



Illuminate

Cable outside diameter

Luminous flux



weight

Protection class







TG26



























220V 50HZ/60HZ

250W

G6.35



























Tungsten halogen light







10mm~12mm

5600







20.5kg



























IP56

300W



GY9.5

6900

500W

12500



TG26-A

300W



GY9.5



13mm~18mm

6900



24.5kg

500W

12500



TG26-B

300W

G6.35



10mm~12mm

6900



16.5kg

500W

GY9.5

12500

TG27

1000W

GX9.5

10mm~12mm

23000

20.5kg

TG27-A

1000W

GX9.5

13mm~18mm

23000

24.5kg

TG27-B

1000W

GX9.5

10mm~12mm

23000

16.5kg

TG28







2000W







GY16

10mm~12mm







53000

30kg

TG28-A

14mm~16mm

60.5kg

TG28-B

12mm~14mm

30kg
