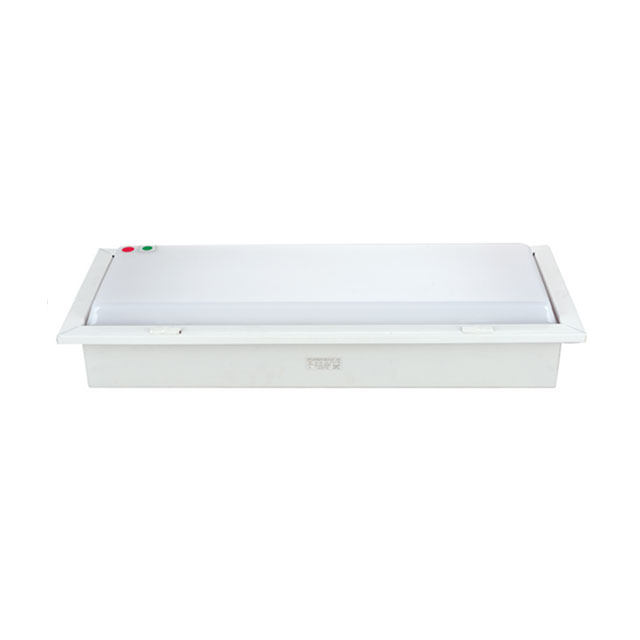

JPY201-2, JPY202-2 Type Marine Fluorescent Ceiling Light With Battery


  • Bulb emergency, lamp holder G13, Voltage: 24V, Power:8W~15W.
  • Tube emergency (Single tube), voltage: 220V, Power: 20W.
  • The time of automatic emergency illumination is not less than 180min.

JPY201-2, JPY202-2 Type Marine Fluorescent Ceiling Light With Battery

The fluorescent ceiling light has a battery. It is suitable for illumination for dry compartments of all types of vessels, such as living cabin crew and passengers, lounges, dining room, cab, telegraph room and other places. The lampshade adopts milky white polycarbonate by injection molding, non-dis-coloring, good toughness, softness rays and excellent transparency. The configured compensating capacitors are in inside of light to improve the power factor and reduce losses. YSmarines is one of the top marine equipment suppliers in China and will offer premium quality fluorescent ceiling light for sale, modest price guaranteed.

Product’s characteristic:

1. Bulb emergency, lamp holder G13, Voltage: 24V, Power:8W~15W.
2. Tube emergency (Single tube), voltage: 220V, Power: 20W.
3. The edge of the lampshade marks the marking, the time of automatic emergency illumination is not less than 180min.
4. The environmental temperature for work is -30℃~+55℃.

Production authentication:

1. Conform to the standard of GB7000.
2. The product approved by CCS (CHINA Classification Society)

Type

JPY201-2

JPY202-2

Power

2*20W

2*20W

Weight

7.3KG

7.3KG

Voltage

110V/60HZ, 220V/50HZ, 220V/60HZ

Power factor

0.85

Lamp holder

G13

Cable outside diameter

14mm~16mm

Protection class

IP44

Emergency way

Bulb Emergency

Tube Emergency

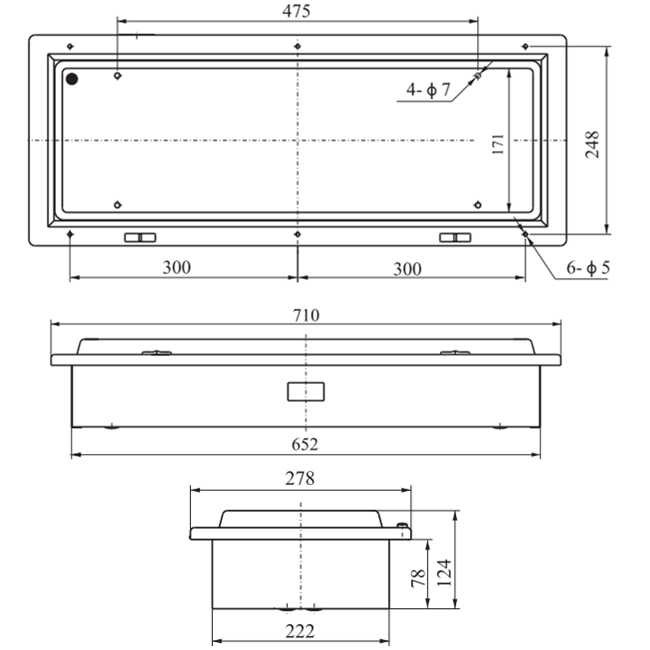

Drawings of JPY201-2, JPY202-2 Type Marine Fluorescent Ceiling Light With Battery
