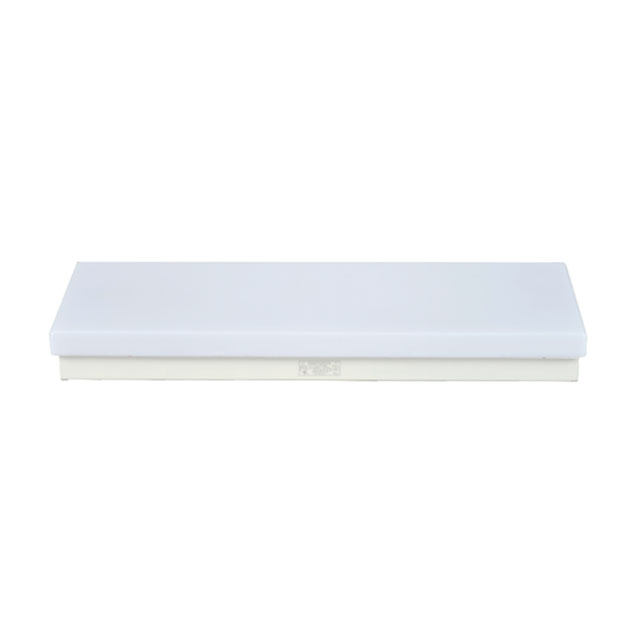

JPY20-2J, JPY40-2J Type Marine Fluorescent Ceiling Light


  • Equipped the shock absorb inside, shock-proof type.
  • The shell welded by the steel plate.
  • The lamp shade adopts PC, it has the features of non-discolor and fine softness etc.
  • The lamp equipped G13 lamp holder, used for 24V/15W emergency bulb.

JPY20-2J, JPY40-2J Type Marine Fluorescent Ceiling Light

The fluorescent ceiling light is equipped with the shock to absorb inside and is a shock-proof type. It is applied to dry cabins, such as the residence, restroom, dining room, cab, operator of the sailors and passengers. The shell adopts the steel plate tensioned. The installation way of the light is the recessed type with compact structure and delicacy appearance. It is equipped with compensating capacitance inside the lamp holder. YSmarines is one of the most professional marine lighting providers in china and can supply fluorescent ceiling light for sale, superb quality guaranteed.

Product’s characteristic:

1. The lampshade adopts PC, it has the features of non-discolor and fine softness, etc.
2. The lamp equipped G13 lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks the marking remark clear that needs the emergency device when order.
3. The environmental temperature for work is -30℃~+55℃.

Production authentication:

1. Conform to the National Army Standard (GJB 4000-2000 MARINE ELECTRIC NORMS 3 group power system and CB1246-94 MARINE ILLUMINANTE LIGHTS COMMONLY USED NORMS).

Type

JPY20-2J

JCY20-2EJ

JCY40-2J

JCY40-2EJ

Power

2*20W

2*40W

Weight

5.2KG

11.5KG

Voltage

110V/60HZ, 220V/50HZ, 220V/60HZ

Power factor

>0.85

Lamp holder

G13

Protection class

IP22

Remark



With guard



With guard

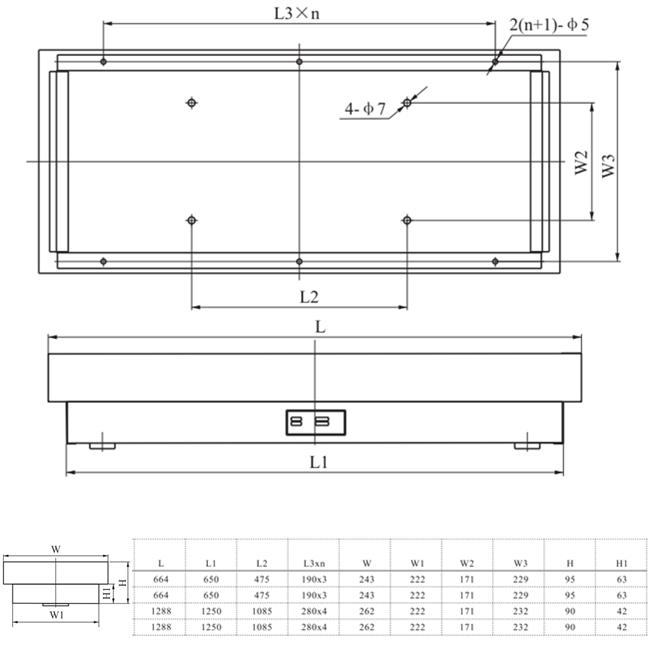

Drawings of JPY20-2J, JPY40-2J Type Marine Fluorescent Ceiling Light
