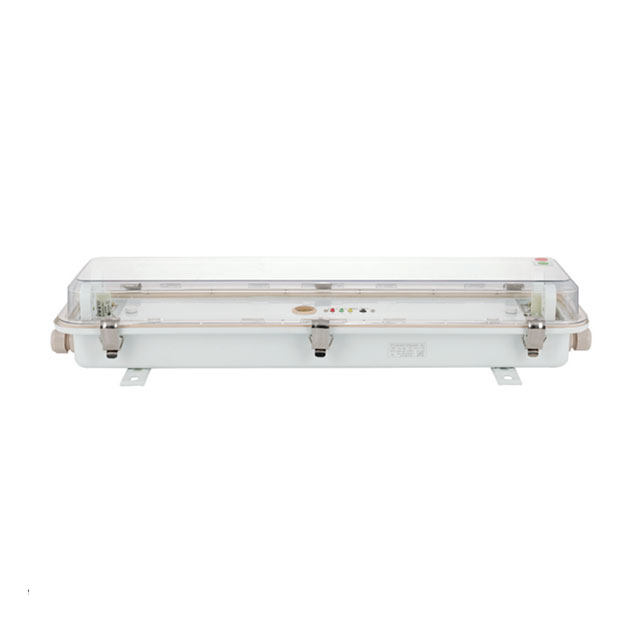

JCY201-2, JCY401-2 Type Fluorescent Pendant Light With Battery


  • Bulb emergency, lamp holder B15d, Voltage: 24V, Power:8W~15W.
  • Tube emergency (Single tube), voltage: 220V, Power: 20W/40W.
  • The edge of lamp shade marks the marking, the time of automatic emergency illumination is not less than 180min.

JCY201-2, JCY401-2 Type Fluorescent Pendant Light With Battery

The fluorescent pendant light has a battery and can be used for illumination of the wet places in boats, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc. The enclosure is stretching formed of high-quality steel plate or stainless steel and the lampshade is PC moulded. It has Junction box with buckle locking, easy to open and close. The electronic ballast can be installed on request with power factor is not less than 0.95. YSmarines provides marine fluorescent pendant light for sale, superior quality and competitive price promised.

Product’s characteristic:

1. Bulb emergency, lamp holder B15d, Voltage: 24V, Power:8W~15W.
2. Tube emergency (Single tube), voltage: 220V, Power: 20W/40W.
3. The edge of lamp shade marks the marking, the time of automatic emergency illumination is not less than 180min.
4. The environmental temperature for work is -30℃~+55℃.

Type

JCY201-2

JCY202-2

JCY401-2

JCY402-2

Power

2*20W

2*40W

Weight

7.5KG

11.3KG

Voltage

110V/60HZ, 220V/50HZ, 220V/60HZ

Power factor

0.85

Lamp holder

G13

Cable outside diameter

14mm~16mm

Protection class

IP56

Emergency way

Tube Emergency

Bulb Emergency

Tube Emergency

Bulb Emergency

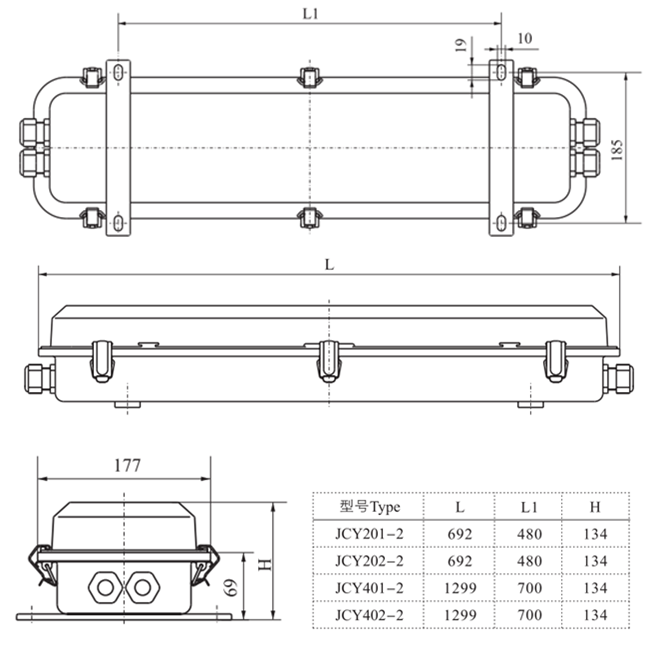

Drawings of JCY201-2, JCY401-2 Type Fluorescent Pendant Light With Battery
