HY-YJ Type LED EXIT Light

HY-YJ Type LED EXIT Light


  1. The LED exit light fits for exit and alleyway indication in ships for the passage and emergency exit.
  2. AC 220V~240V, 50HZ/60HZ, power 3W. With spare battery.
  3. The shell adopts good quality steel. leak proof structure with high waterproof.
  4. The time of automatic emergency illumination is not less than 180min.

HY-YJ Type LED EXIT Light

The type of  LED EXIT Light fits for exit and alleyway indication in ships for the passage and emergency exit. It is available for both normal lighting and emergency lighting. It can shaft to an emergency state automatically when normal lighting power failure. It is made of copper-free aluminium with a lightweight of 1.5kg. The shell adopts a leak-proof structure with high waterproof. The time of automatic emergency illumination is not less than 180min. YSamarines can supply high-quality marine LED EXIT light with reasonable price.

Product’s characteristic:

1. The LED starter has stabled components, to assure that the circuit has a long lifetime, and it has the protection for the short circuit and overload, to assure that the LED light works for the long term.
2. The environmental temperature for work is -30℃~+55℃.

Production authentication:

1. Conform to the standard of GB7000.1(IEC 60598-1), GB7000.2(IEC60598-2-22),GB17945, GD 01,GB4208(IEC60529), etc.

Type

HY-YJ

Power

3W

Weight

1.5KG

Voltage

AC 220V~240V, 50HZ/60HZ

Spare battery

Nickel-cadmium 3.6V/800mAh

Working type

Continuous type

environmental temperature

-30~+55

Illuminate

LED (green light)

Surface brightness

50cd/≤brightness≤300cd/

Charging time

≤24h

Emergency time

≥180min

Emergency transfer time

≤2s

Protection class

IP44

Installation way

Wall type, Ceiling type

Note

When place order, please write the needed sign diagram code in the purchased types, if sign design additionally needed, we can produce according to the requests.

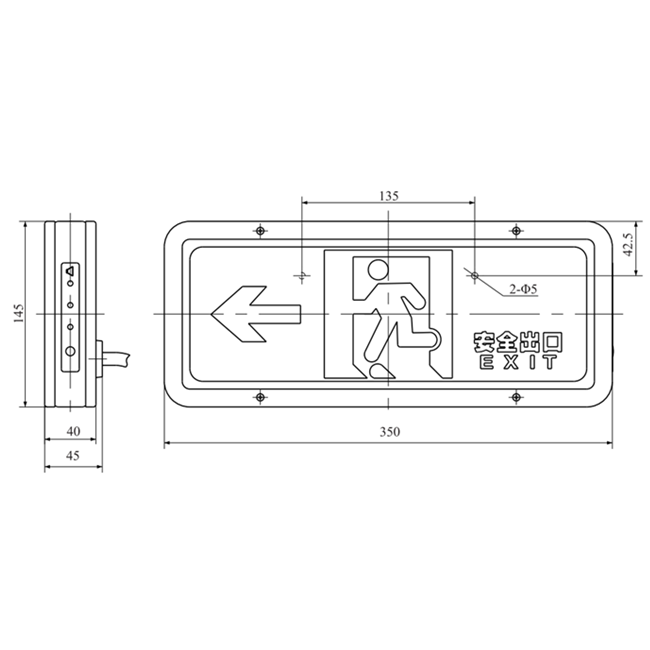

Drawings of HY-YJ Type LED EXIT Light
