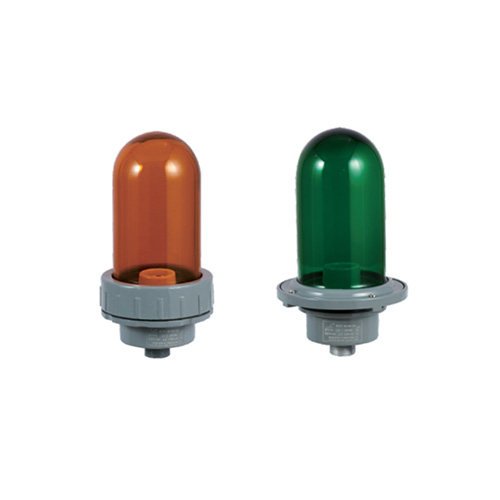

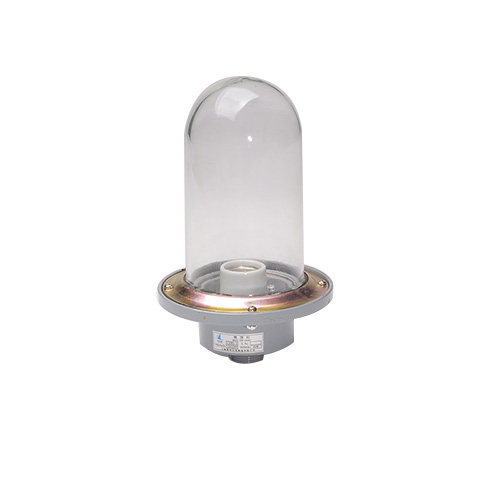

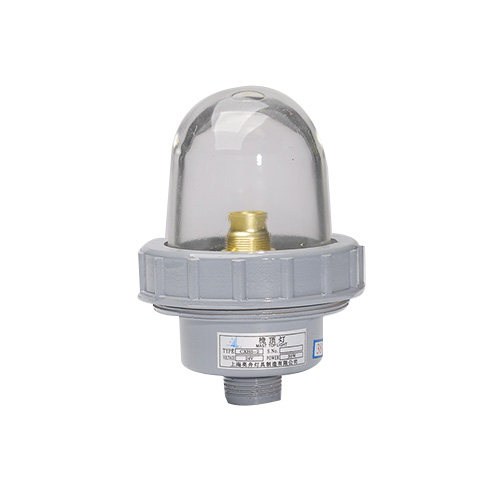

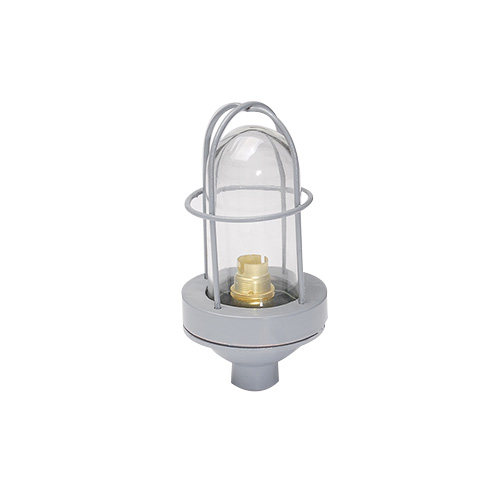

CXH5 Type Marine Headlights


  • Marine head light applied to the ships as a lamp when night navigation.
  • DC 24V, AC 110V/220V, power 60W, 30W.
  • Many colors: White/Red/Green/Yellow/Blue/Purple.
  • The headlight shade adopts good quality Pyrex glass.

CXH5 Type Marine Headlights

The marine headlights are applied for the boat as a light signal, used for the boats with a length 50m or above 50m. The headlight is a screw-type connecting flange and is convenient to install and replace the bulb. The shade adopts good quality Pyrex glass and has a good function of pervious to light. YSmarines is one of the top marine equipment manufacturers in China and will provide boat headlights with the best services including custom design, excellent after-sale service and shortest delivery time.

Adopt standard:

1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995.

Production authentication:

1. Approved by CCS (CHINA CLASSIFICATION SOCIETY) and ZY of China Fishery Inspection.

Name

Head Light

Head Light

Head Light

Head Light

Type

CXH5-1

CXH5-1B

CXH5-2

CXH5-2A

Visibility

3n.m

3n.m

2n.m

2n.m

Level arc

360°

360°

360°

360°

Material

Aluminum

Stainless steel

Aluminum

Plastic

Weight

0.9kg

1.7kg

0.4kg

0.5kg

Voltage

24V/110V/220V

24V

Power

60W

30W

Color

White/Red/Green/Yellow/Blue/Purple

White/Red/Green/Blue

Cable Outside Diameter

12mm

Lamp Holder

E27

B15d

Protection Class

IP56

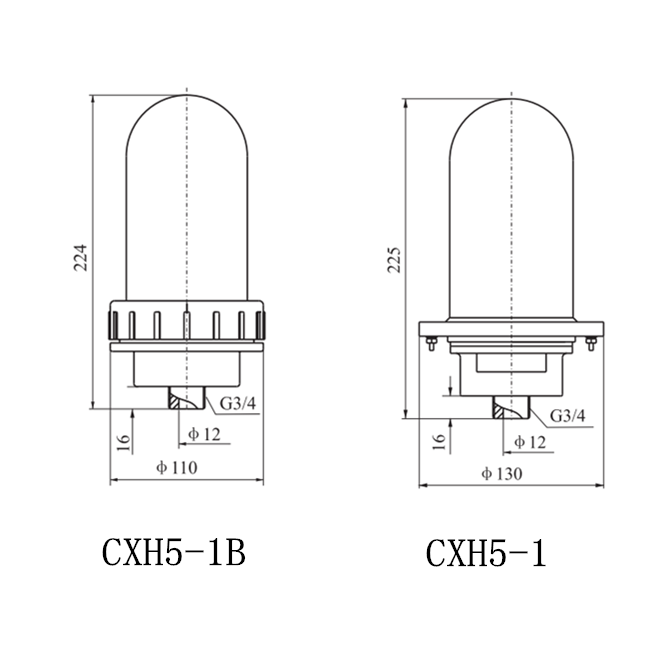

Drawings of CXH5 Type Marine Headlights
