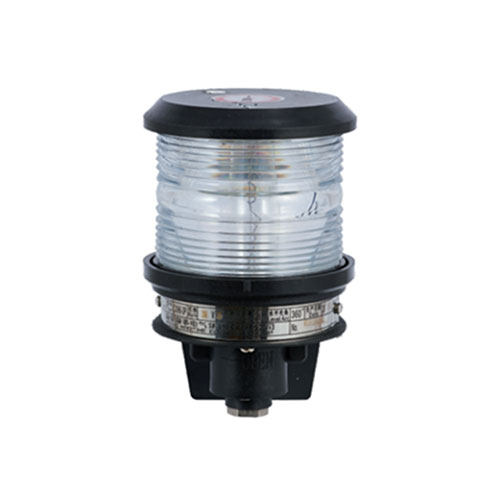

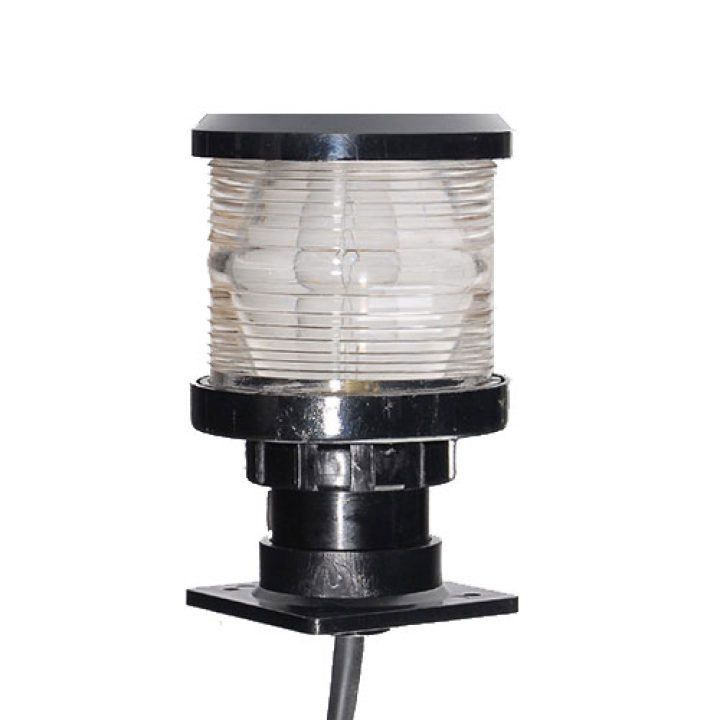

CXH-3P Type Single-deck Marine Navigation Lights
- Applied to the ships with the length less than 12m as lamp signal liaison .
- DC 12V/24V , power 3*25W. With BAY15d lamp holder.
- Suitable for cables with outside diameter of 10mm~12mm.
- It is waterproof under the bad environment.
CXH-3P Type Single-deck Marine Navigation Lights
The marine navigation lights are single-deck type and are suitable for ships with a length of fewer than 12m as the lamp signal liaises for the night navigation. The shell is made of high-strength engineering plastic PA+GF and the lampshade adopts an injection of PC. The Lens hood is made of good quality brass alloy. They have the whole seal structure with a waterproof feature under the bad environment. They choose a special signal bulb that conforms to the ship criterion, can replace the bulb when open the cover. YSmarines provides single-deck navigation lights for sale at the best prices.
Adopt standard:
1. Conform to THE INTERNATIONAL REGULATIONGS FOR PREVENTINGS COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the International standard IEC 60598-1-2008.
3. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995.
Production authentication:
1. Approved by CCS (CHINA CLASSIFICATION SOCIETY) and ZY of China Fishery Inspection.
2. The patent no. is ZL 2009 2019 9527.6.
|
Name |
Type |
Visible |
Level Arc | Cable outside diameter | Lamp Holder |
Bulb | Protection Class |
Color |
Weight |

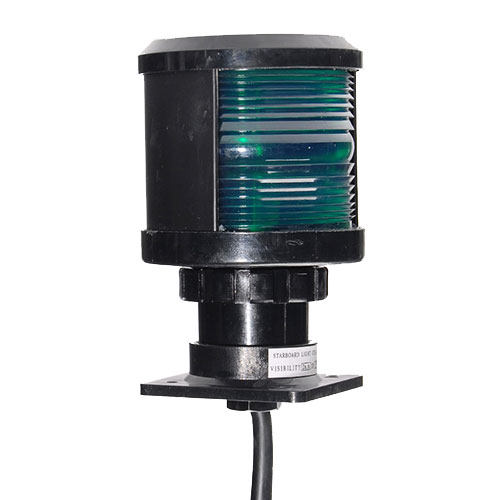

| Starboard light | CXH1-3P | 1n.m | 112.5° | Φ10~12 |
BAY15d |
12V/15W 24V/15W |
IP56 | Green | 0.53kg |
| Port light | CXH2-3P | 1n.m | 112.5° | Φ10~12 | Red | 0.53kg | |||

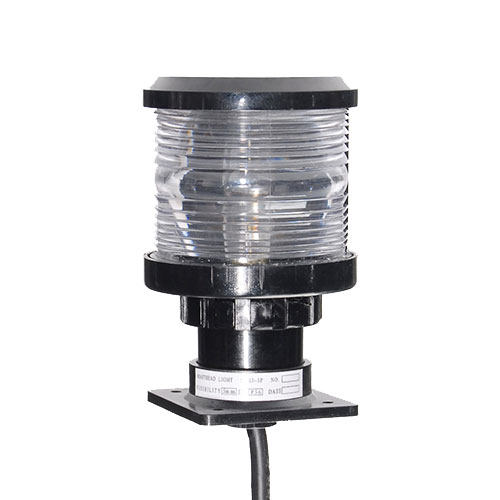

| Masthead light | CXH3-3P | 2n.m | 225° | Φ10~12 | transparent | 0.53kg | |||
|
Stern light |
CXH4-3P |
2n.m |
135° |
Φ10~12 | transparent yellow |
0.53kg | |||
|
All-round light |
CXH6-3P |
2n.m |
360° |
Φ10~12 | 12V/25W 24V/25W | Green Red transparent |
0.53kg |
