CXH-12PL Type LED Marine Navigation Lights


  • Applied to the ships with the length 50m or above 50m as lamp signal liaison.
  • AC100~240V 50HZ/60HZ DC24V, power 6W.
  • Suitable for cables with an outside diameter of 10mm~12mm.
  • Adopt the special LED light source, compact structure, super waterproof.

CXH-12PL Type LED Marine Navigation Lights

The LED marine signal lights are used as lamp signal liaise for night navigation. They adopt the special LED light source which is according to the ship rule and regulation, which are more energy-saving and long service life with up to 50,000 hours. The low power consumption of LED navigation lights means your batteries will drain much more slowly than with traditional lights. The shell is made of high-strength engineering plastic PA+GF. They have a whole seal structure to resist water intrusion, corrosion, vibration, and UV radiation. YSmarines, is a trusted marine lighting manufacturer in China and can offer the finest LED navigation lights for boats of all sizes and types.

Adopt standard:

1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the International standard IEC 60598-1-2008.
3. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995.

Production authentication:

1. Approved by CCS (CHINA CLASSIFICATION SOCIETY) and ZY of China Fishery Inspection.
2. Approved by MED/EC.
3. The patent no is ZL 201630058159.9.



Name



Type



Visible



Level Arc

Cable

outside

diameter



Power



Illuminate



Voltage

Protection

Class



Color



Weight

 Starboard

light

CXH1-12PL

3n.m

112.5°

Φ10~12

6W













LED













AC100~240V

50HZ/60HZ

DC24V













IP66

Green

3.0kg

Port light

CXH2-12PL

3n.m

112.5°

Φ10~12

6W

Red

3.0Kg

Masthead

light

CXH3-12PL

6n.m

225°

Φ10~12

6W

transparent

3.0kg

Stern light

CXH4-12PL

3n.m

135°

Φ10~12

6W

transparent

yellow

3.0kg

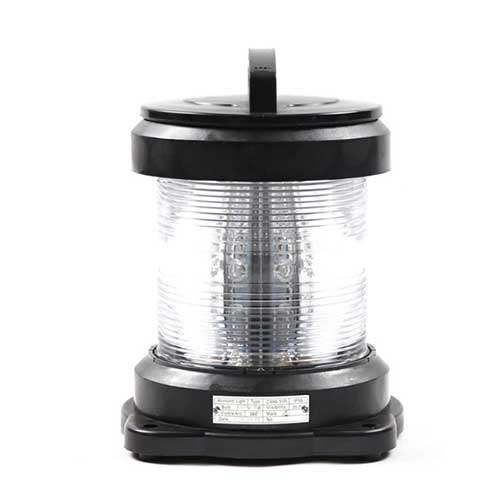

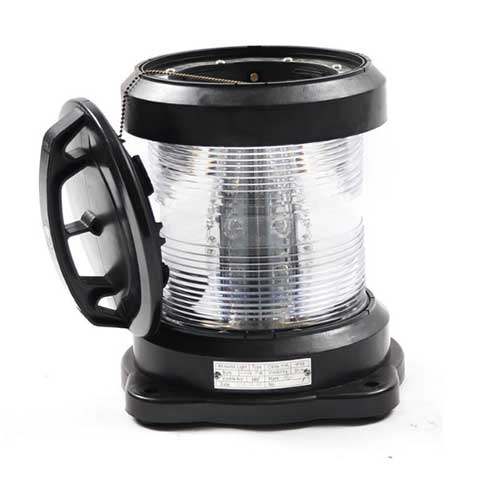

All-round

light

CXH6-12PL



3n.m



360°



Φ10~12



6W

Green

Red

transparent



2.8kg
