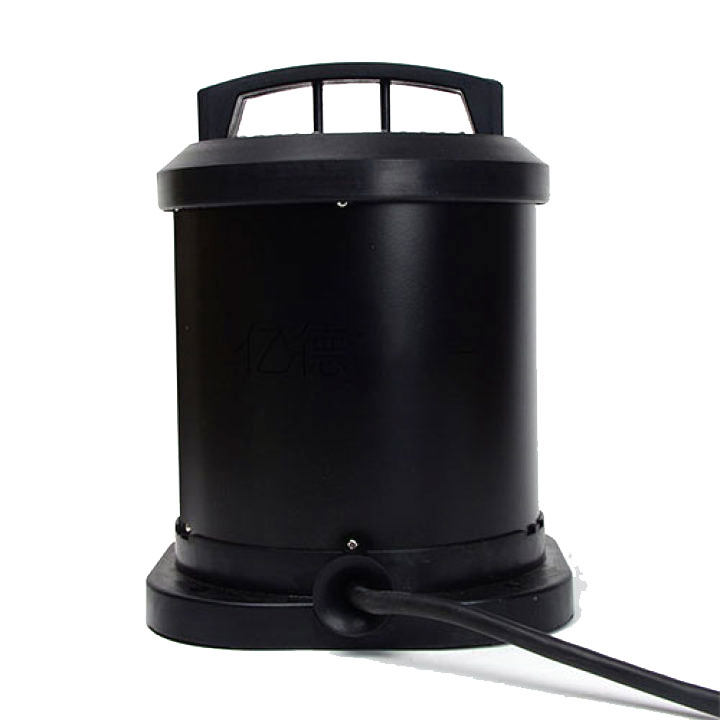

CXH-11P Type Single-deck Boat Navigation Lights


  • Applied to the ships with the length 50m or above 50m as lamp signal liaison.
  • AC 110V/ 220V , DC 24V , power 60W. With P28Slamp holder.
  • Suitable for cables with outside diameter of 9mm.
  • The whole seal structure, waterproof.

CXH-11P Type Single-deck Boat Navigation Lights

The boat navigation lights are single-deck type and fit for the boats with the length 12m or above 12m(<50m) as lamp signal communication when night navigation. The shell is made of high-strength engineering plastic PA+GF, and the lampshade adopts the injection of PC. This lamp can be installed conveniently, light bulbs and lamp holder adopts plug-in and it can replace the bulb after open the up cover. There are automatic leak holes on the bottom of the light. The lampshade adopts Polycarbonate which has the feature of ultraviolet radiation resistance and non-discoloring. The average life of the bulb is not lower than 700h. They can work under a temperature of -30℃ to 55℃.

Adopt standard:

1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the International standard IEC 60598-1-2008.
3. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995.

Production authentication:

1. Approved by CCS (CHINA CLASSIFICATION SOCIETY) and ZY of China Fishery Inspection.
2. Passed the authentication of CE.
3. Approved by Germanischer Lloyd “GL”.
4. Approved by MED/EC.
5. The patent no is ZL 2009 2019 9529.5.



Name



Type



Visible



Level Arc

Cable

outside

diameter

Lamp

Holder



Bulb

Protection

Class



Color



Weight

Starboard light

CXH1-11P

3n.m

112.5°

φ9















P28S













220V/60W

110V/60W

24V/60W















IP56

Green

3.2kg

Port light

CXH2-11P

3n.m

112.5°

φ9

Red

3.2kg

Masthead light

CXH3-11P

6n.m

225°

φ9

transparent

3.2kg

Stern light

CXH4-11P

3n.m

135°

φ9

transparent

yellow

3.2kg



 All-round light



CXH6-11P



3n.m



360°



φ9

Green

 Red

transparent



3.2kg

Drawings of CXH-11P Type Single-deck Boat Navigation Lights
