CXH-10B Type Double-deck Ship Navigation Lights
- Applied to the ships with the length 50m or above 50m as lamp signal liaison.
- AC 110V /220V, DC 24V , power 2*60W, 2*65W. With B22d lamp holder.
- Suitable for cables with outside diameter of 12mm~16mm.

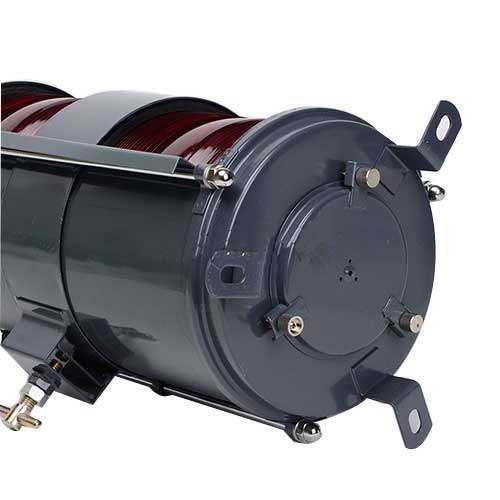

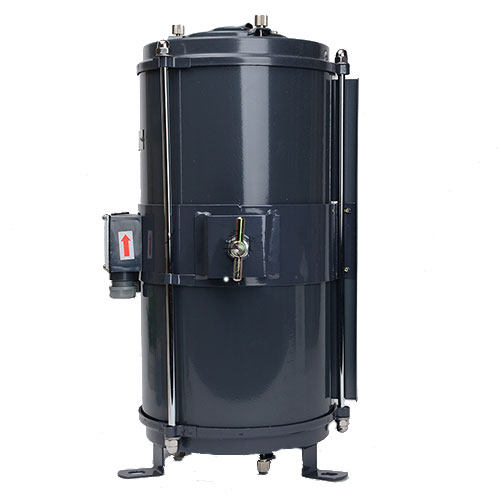

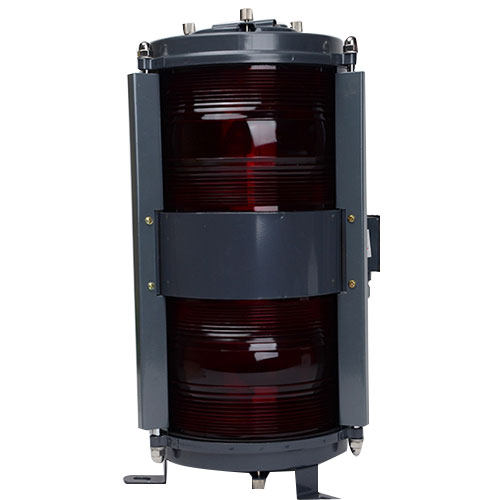

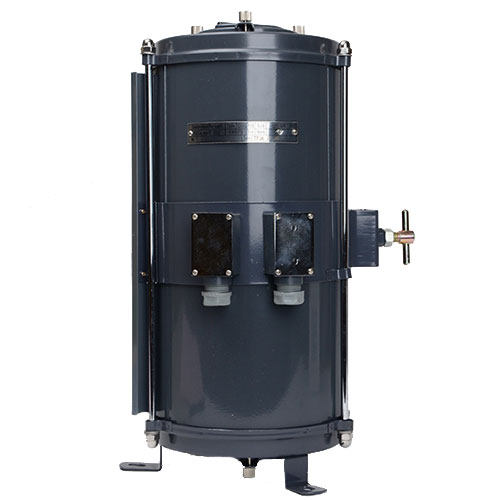

CXH-10B Type Double-deck Ship Navigation Lights
The navigation lights are double-deck type and are used for the ships with the length 50m or above 50m as lamp signal liaises for night navigation. They are convenient to install and replace the bulb, and there are automatic aleak holes in the bottom. The shell is made of high standard metal material steel and the structure is painted with the special mold-powder. They have the feature of corrosion-resisting and shock resistance. The lampshade adopts polycarbonate with ultraviolet radiation resistance and does not discolor. The color is optional with green, red and transparent.
Adopt standard:
1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA,1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
2. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995.
Production authentication:
1. Approved by CCS (CHINA CLASSIFICATION SOCIETY) and ZY of China Fishery Inspection.
|
Name |
Type |
Visible |
Level Arc | Cable outside diameter |
Power |
Voltage |
Material | Lamp Holder | Protection Class |
Color |
Weight |
| Double-deck starboard light | CXH1-10B | 3n.m | 112.5° | Φ12~16 |
2*60W 2*65W |
AC110 AC220V DC24V |
Steel, PC |
B22d |
IP56 | Green |
9.0kg |
| Double-deck portlight | CXH2-10B | 3n.m | 112.5° | Φ12~16 | Red | ||||||
| Double-deck masthead light | CXH3-10B | 6n.m | 225° | Φ12~16 | transparent | ||||||
| Double-deck stern light | CXH4-10B | 3n.m | 135° | Φ12~16 | transparent yellow | ||||||
| Double-deck all-round light | CXH6-10B |
3n.m |
360° |
Φ12~16 | Green Red transparent |
