CFD3-L Type Explosion Proof Led Lights
- LED lamp, with energy-efficient;
- The working life can get up to 50000 hours.
- Power: DC 24V, 3W; AC 100V ~AC 240V 50HZ/60HZ , 14W;
- Suitable for cables with outside diameter of 11mm~13mm.

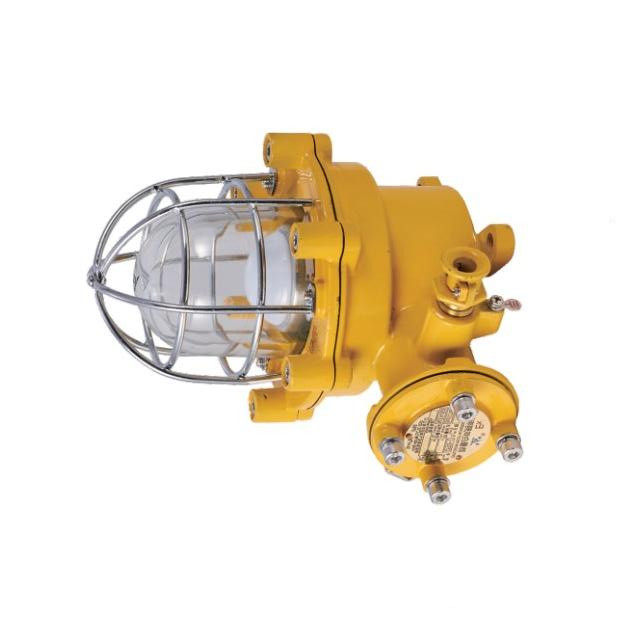

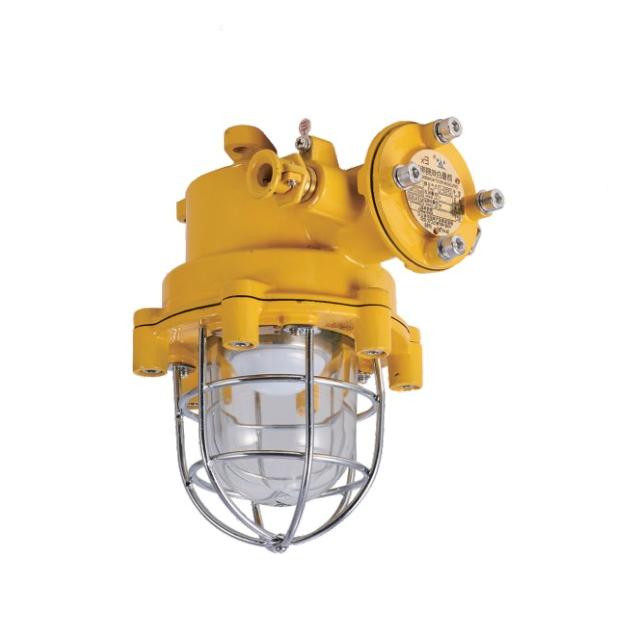

CFD3-L Type Explosion Proof Led Lights
The LED explosion-proof lights can be used safely and reliably in the place with explosive air mixture, with explosive matters IIA, IIB, IIC, the temperature group is T1~T6 in the cabin and outdoor place. The shell is made of the high-quality brass foundry, and the lampshade is toughened glass with a brass guard. The gland has two kinds, one is tube screw type screw is G3/4; another one is bugle type. The lights adopt a good LED lamp, with energy-efficient. The LED starter has stabled components, to assure that the circuit has a long lifetime, and it has protection for the short circuit and overload, to assure that the LED light works for the long term. YSmarines is one of the leading explosion proof led lights suppliers in china, with excellent quality and reasonable prices guaranteed.
Production authentication:
1. Conform to national standard GB3836.1~3, GB12045, En 50014, En 60079, GB 17743, GB 19510.1, GB 19510.14.
| Type | CFD3-L |
| Voltage | AC 100V~240V 50HZ/60HZ DC 24V |
| Power | 14W/3W |
| Explosion-proof mark | Exd IIC T6 Gb |
| Material | Brass |
| Illuminant | LED |
| Cable outside diameter | 11mm~13mm |
| Protection class | IP 66 |
| Weight | 8.0kg |
