    • Application: can be used at  fireproof division bulkheads.
    • Option: hose port/vent louver/emergency exit panel/Window,door clsoer, door stopper
    • Material: steel
    • Stuffing: fireproof material
    • Available certificates: GL, DNV, CCS, BV, ABS, LR, KR, RS, etc

    Marine Steel Fireproof Door

    The steel fireproof door meets the requirements of CB/T 3234-2011. The marine door is used for the passageway of the fire-protection area of class A and B fire division. There will be seven different types including Class A60 fireproof door, Class A30 door, Class A15 door, Class A0 door, Class B15 door, Class B15-s door with emergency escape vent louver and Class B0-s door with emergency escape vent louver. YSmarines which is one of the most professional suppliers in china for marine equipment can provide customized stopper, door closer, sizes and colors to meet the different needs of customers. All the marine doors have the certificate of GL, DNV, CCS, BV, ABS, LR, KR, RS, etc.

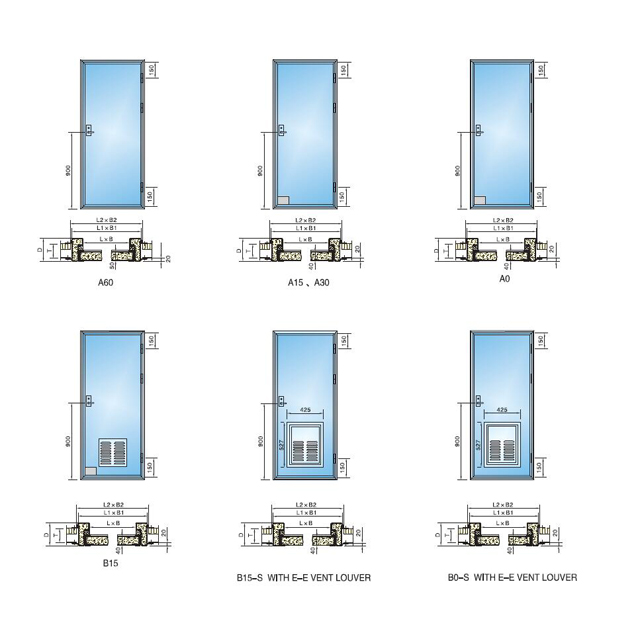

    Drawings of Marine Steel Fireproof Door
    Class Doorway Size L*B Frame Size L1*B1 Opening of BH L2*B2 T D Weight(kg)
    A0 A15 A30 A60

































    A

    		 1650*600 1750*700 1755*705































    DECIDED BY DESIGNER

































    T+45

    		 61.75 88.08 106.53 112.26
    1650*650 1750*750 1755*755 64.51 92.87 111.71 117.83
    1650*700 1750*800 1755*805 67.02 97.4 116.99 123.52
    1650*750 1750*850 1755*855 69.7 102.1 122.17 129.09
    1650*800 1750*900 1755*905 72.29 106.72 127.35 134.68
    1700*600 1800*700 1855*705 63.29 90.41 109.33 115.21
    1700*650 1800*750 1805*755 66.02 95.21 114.71 121.01
    1700*700 1800*800 1805*805 66.77 100.06 120.03 126.74
    1700*750 1800*850 1805*855 71.41 104.77 125.31 132.44
    1750*750 1850*850 1855*855 73.2 107.51 128.44 135.76
    1750*800 1850*900 1855*905 76 112.46 133.87 141.61
    1800*600 1900*700 1905*705 66.53 95.2 114.96 121.17
    1800*650 1900*750 1905*755 69.29 100.15 120.46 127.14
    1800*700 1900*800 1905*805 72.16 105.23 126.06 133.14
    1800*750 1900*850 1905*855 75 110.27 131.58 139.1
    1800*800 1900*900 1905*905 77.87 115.35 137.56 145.5
    1850*600 1950*700 1955*705 68.05 97.48 117.7 124.08
    1850*650 1950*750 1955*755 70.97 102.66 123.38 130.2
    1850*700 1950*800 1955*805 73.89 107.84 129.06 136.32
    1850*750 1950*850 1955*855 76.81 113.03 135.14 142.84
    1850*800 1950*900 1955*905 79.62 118.1 140.5 148.65
    　 B0 B15



































    B

    		 1650*600 1730*680 1735*685































    DECIDED BY DESIGNER



































    T+45

    		 55.88 95.01
    1650*650 1730*730 1735*735 58.64 100.1
    1650*700 1730*780 1735*785 61.15 104.93
    1650*750 1730*830 1735*835 63.83 109.94
    1650*800 1730*880 1735*885 66.42 114.85
    1700*600 1780*680 1785*685 57.24 97.46
    1700*650 1780*730 1785*735 59.97 102.56
    1700*700 1780*780 1785*785 62.72 107.71
    1700*750 1780*830 1785*835 65.36 112.72
    1700*800 1780*880 1785*885 68.11 117.77
    1750*600 1830*680 1835*685 58.67 99.95
    1750*650 1830*730 1835*735 61.47 105.19
    1750*700 1830*780 1835*785 64.18 110.35
    1750*750 1830*830 1835*835 66.98 115.49
    1750*800 1830*880 1835*885 69.78 102.74
    1800*600 1880*680 1880*685 60.13 102.51
    1800*650 1880*730 1885*735 62.89 107.75
    1800*700 1880*780 1885*785 65.76 113.03
    1800*750 1880*830 1885*835 68.6 118.37
    1800*800 1880*880 1885*885 71.47 123.95
    1850*600 1930*680 1935*685 61.47 104.9
    1850*650 1930*730 1935*735 64.39 110.28
    1850*700 1930*780 1935*785 67.31 115.76
    1850*750 1930*830 1935*835 70.23 121.45
    1850*800 1930*880 1935*885 73.04 126.62
