Kidney Dock Bollard
- Material: Cast Iron or Cast Steel
- Capacity: 15Ton to 200Ton
- Type: Kidney Type Bollard, J Type Bollard, Round Head Bollard (Mushroom Head Type Bollard), and CVI Type Bollard, etc.
- Application: Docks, Terminals, Jetties, etc.
- Surface: Shot blast to Sa2.5 then fully painted or with rust preventative primer
- Technics: Precision Cast
- Mounting Hardware: Galvanized grade 8.8 bolts, nuts and washers or stainless steel available

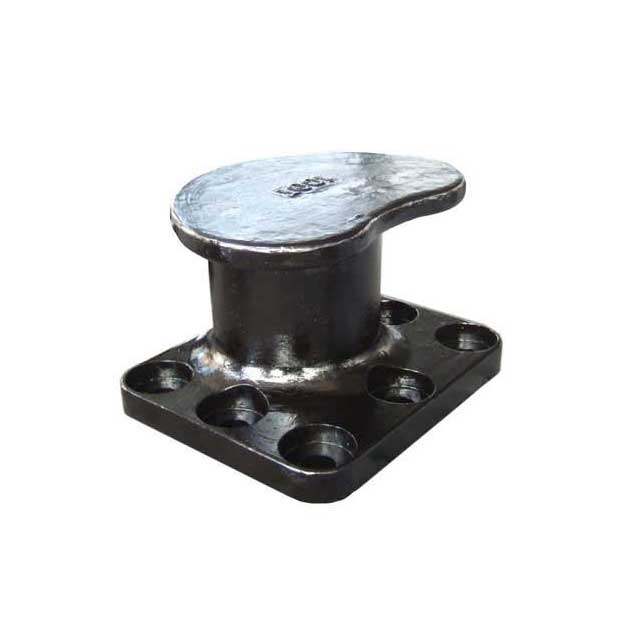

Kidney Dock Bollard

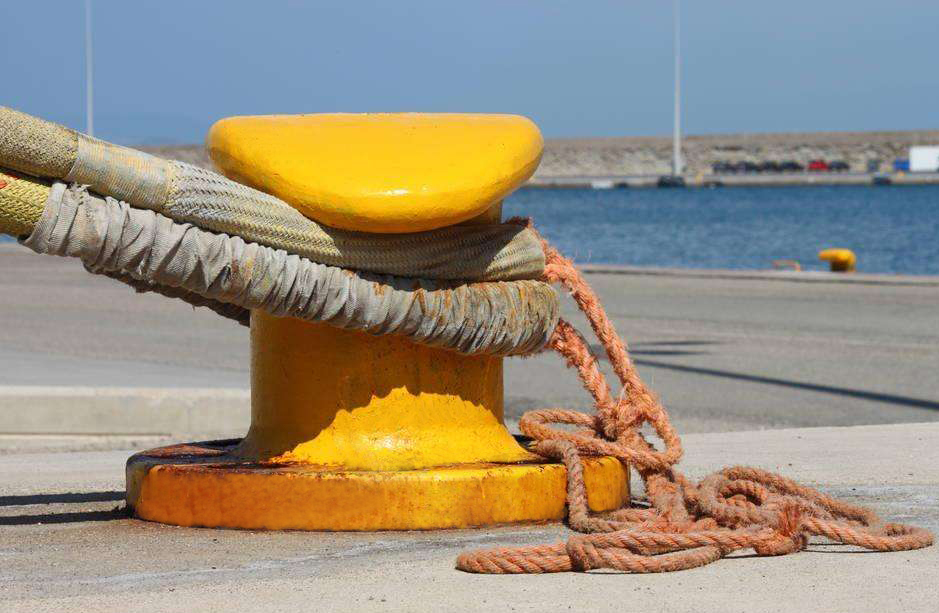

Kidney shaped bollard is one of the most common marine mooring bollards for jetty, quay and wharf and is suitable when low to the medium tidal range is expected. The dock bollard provides an economical solution for installations where securing mooring lines at high angles. It is particularly suitable for applications where tidal ranges are small and are suited to warping operations along with berths where vessels need to be re-positioned for loading purposes. The kidney dock bollards are available made from the following materials: grey cast iron, ductile cast iron (spheroidal graphite), and cast steel according to the requirement of the dock. It can withstand use in harsh environments.

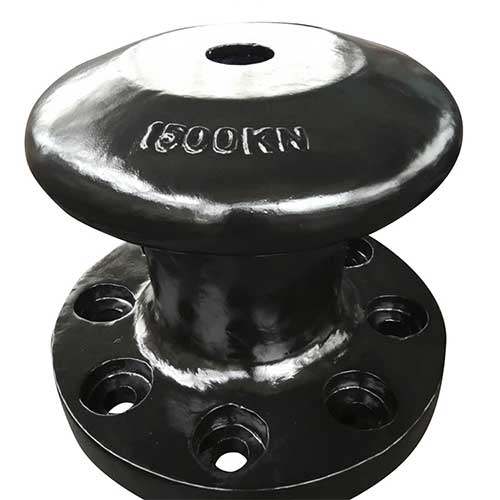

Besides the kidney type dock bollard, YSmarines also supplies other types of terminal mooring dock bollards, like Y type dock bollard, J type dock bollard, R type dock bollard, round head dock bollard (or mushroom head type dock bollard), and CVI type dock bollard, etc.
Features Of Kidney Dock Bollard
●Suitable for small tidal ranges
●Simple design with high SWL
●Wide range of material, base type and anchoring system for choice
●Special designs are available upon request
Technical Parameters Of Kidney Dock Bollard
Material: weldable steel plates or steel tubes
SWL for one-rope use: 29kN to 981kN

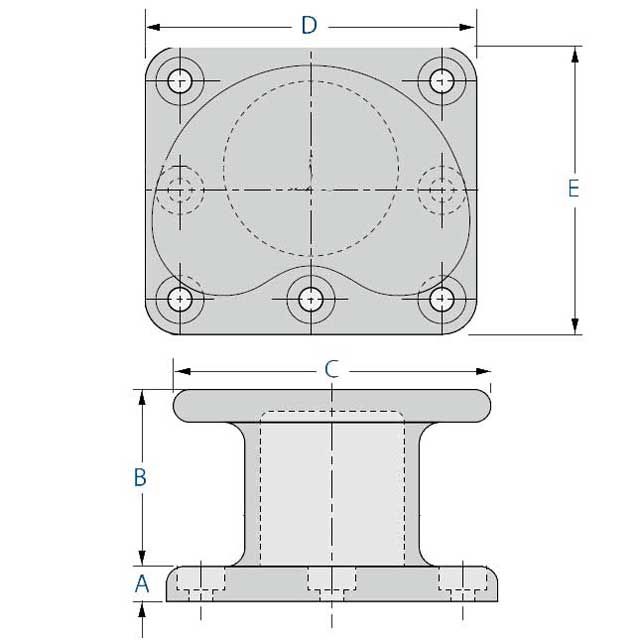

| Model No. | Dimensions (mm) | Bolts | Capacity (T) | ||||
|
| A | B | C | D | E |
|
|
| K01 | 40 | 260 | 340 | 320 | 320 | M24*4 | 15 |
| K02 | 40 | 280 | 370 | 360 | 360 | M30*4 | 30 |
| K03 | 50 | 320 | 480 | 540 | 540 | M36*4 | 50 |
| K04 | 70 | 330 | 530 | 560 | 460 | M42*5 | 80 |
| K05 | 70 | 350 | 550 | 590 | 490 | M42*7 | 100 |
| K06 | 80 | 375 | 640 | 680 | 580 | M48*7 | 125 |
| K07 | 80 | 405 | 728 | 760 | 660 | M48*7 | 150 |
| K08 | 90 | 435 | 800 | 1000 | 850 | M56*7 | 200 |
Applications Of Kidney Dock Bollard
● Container & Bulk Terminals
● Oil & Gas Terminals
● General Cargo Terminals
● Cruise Terminals, Ferry & RoRo Terminals
● Navy docks.
