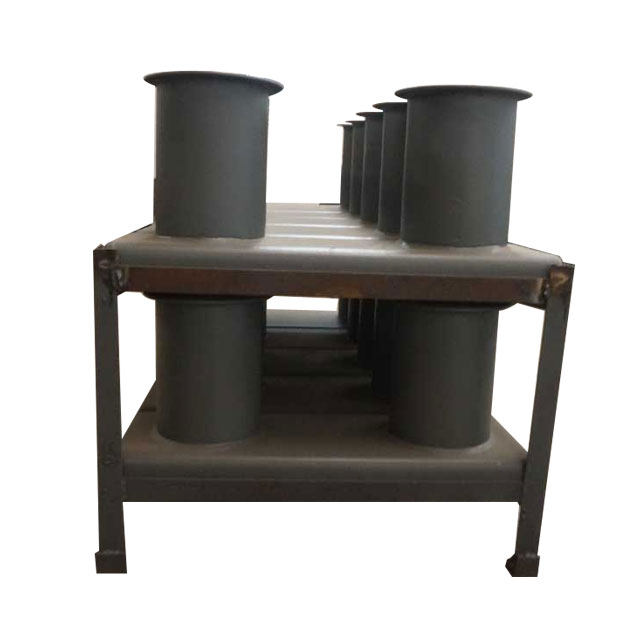

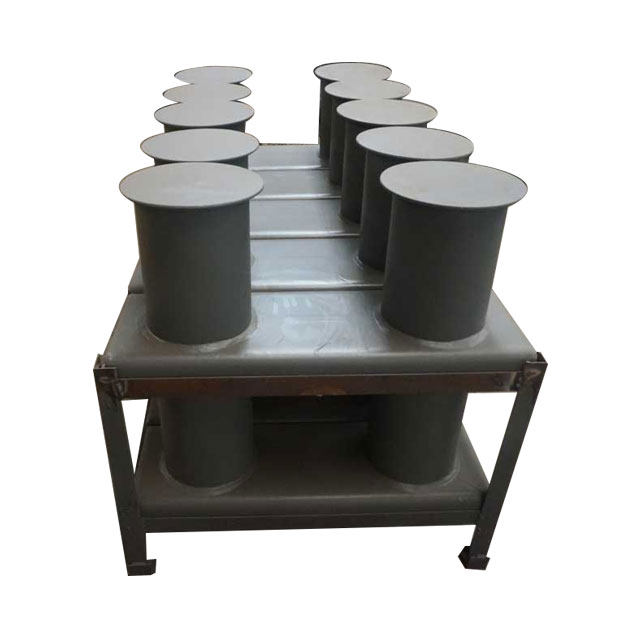

JIS F 2001-1995 Double Bitt Bollard


  • Material: Weldable steel plates or steel tubes
  • Nominal Size: 100mm to 800mm
  • SWL: 29kN to 981kN
  • Weight: 18.9KG to 3071KG
  • Standard: JIS F 2001-1995
  • Certificate: CCS, BV, ABS, DNV, GL, LR, NKK, RINA, etc.
  • Surface Treatment: without any visible flaws or imperfections and coated externally with an anti-corrosion protective finish.

JIS F 2001-1995 Marine Double Bitts Bollard

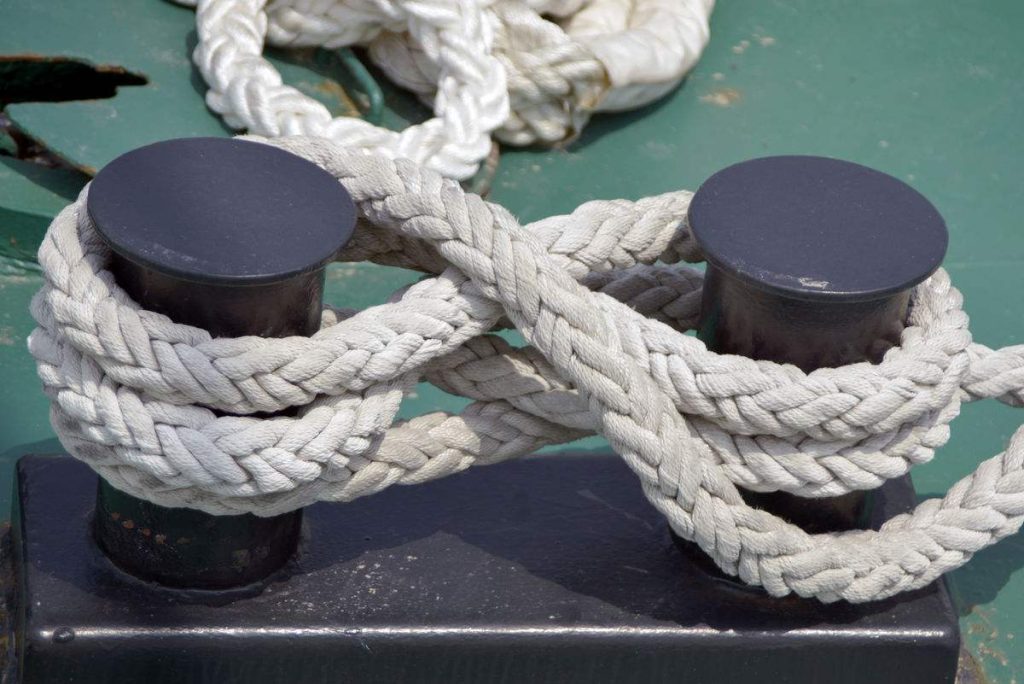

The double bitt bollard is made from durable ductile cast iron or cast steel according to the standard of JIS F 2001-1995. The surface of the bollard should be without any visible flaws or imperfections. It can withstand use in harsh environments. It is capable of accepting multiple mooring lines due to its twin horn profile and has been designed with a narrow base footprint to fit into spaces on wharves that have limited work area. YSmarines supplies the double bitt bollard with the certificate of CCS, BV, ABS, etc.

The marine double bitt bollard is made of steel plates according to the requirement of JIS G 3101 standard or JIS G 3106 standard and steel tubes according to the requirement of JIS G 3454 standard or JIS G 3456 standard. This mooring bollard can withstand use in harsh environments.

Technical Parameters Of JIS F 2001-1995 Double Bitt Bollard

Material: weldable steel plates or steel tubes
SWL for one-rope use: 29kN to 981kN

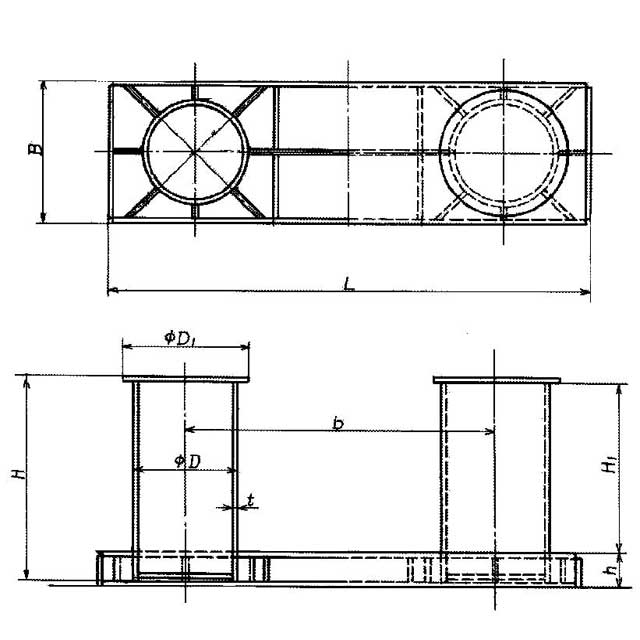

Technical Parameters Of JIS F 2001-1995 Double Bitt Bollard

Nominal Size

Dimensions (mm)

SWL

Weight

Dn (mm)

D

D1

H

H1

t

b

B

h

L

(kN)

(kg)

100

114.3

145

196

150

10

250

165

50

445

29

18.9

125

139.8

180

246

190

10

315

195

60

540

39

29.4

160

165.2

210

316

250

10

400

225

70

670

49

44.7

200

216.3

270

378

300

10

500

290

85

860

78

79.5

250

267.4

330

470

380

11

630

360

100

1065

118

139

315

318.5

385

597

480

15

800

430

125

1300

196

261

355

355.6

425

663

530

17

890

480

145

1475

255

361

400

406.4

485

749

600

18

1000

550

160

1630

314

502

450

457.2

550

841

680

19

1130

620

170

1840

382

685

500

508

610

928

750

20

1250

690

190

2040

451

911

560

558.8

670

1025

830

22

1380

750

210

2240

549

1208

630

609.6

730

1152

940

24

1570

820

225

2510

686

1601

710

711.2

840

1294

1050

25

1750

960

260

2840

804

2252

800

812.8

940

1480

1200

26

2000

1100

295

3240

981

3071

Applications Of JIS F 2001-1995 Double Bitt Bollard

General cargo vessels;
Containers;
Oil & Gas Tankers;
Tugboats;
Passenger Vessels;
Other seagoing vessels and inland vessels.

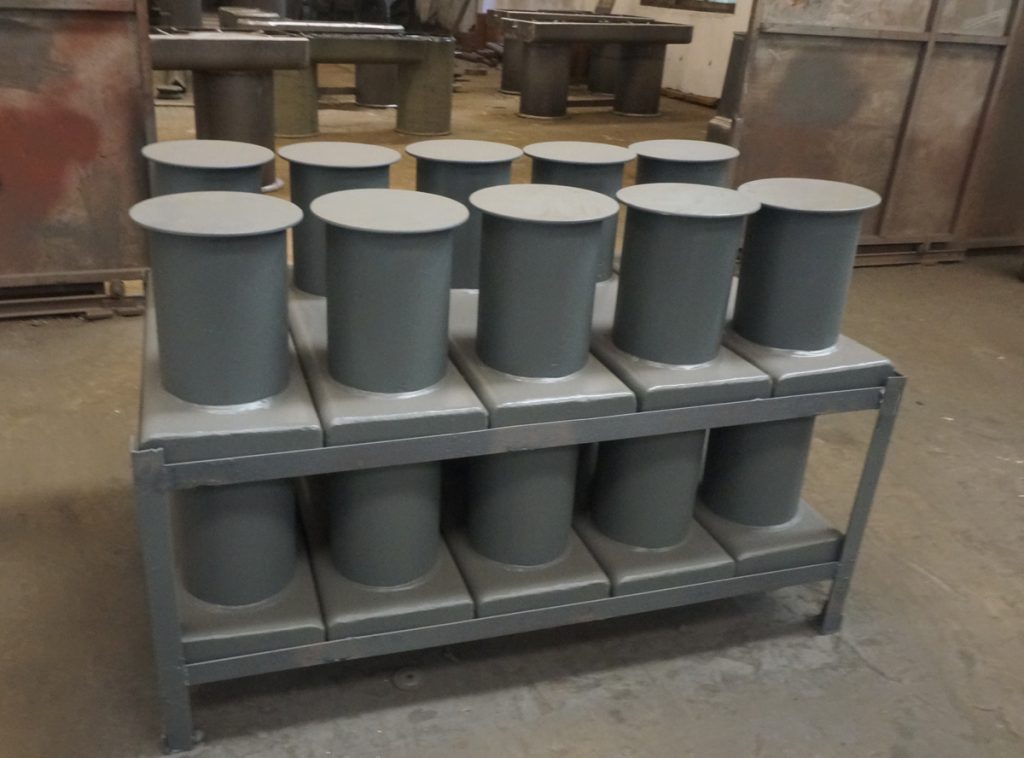

Workshop

workshop of JIS F 2001-1995 Double Bitt Bollard
