• ISO13797 Cruciform Bollard

    • Material: Steel Plate & Steel Tube
    • Nominal Size: 150mm to 400mm
    • SWL: 78kN to 736kN
    • Weight: 37KG to 165KG
    • OEM: Accepted
    • Bitt type: Double
    • Certificate: CCS, ABS, BV, DNVGL, NKK, etc.

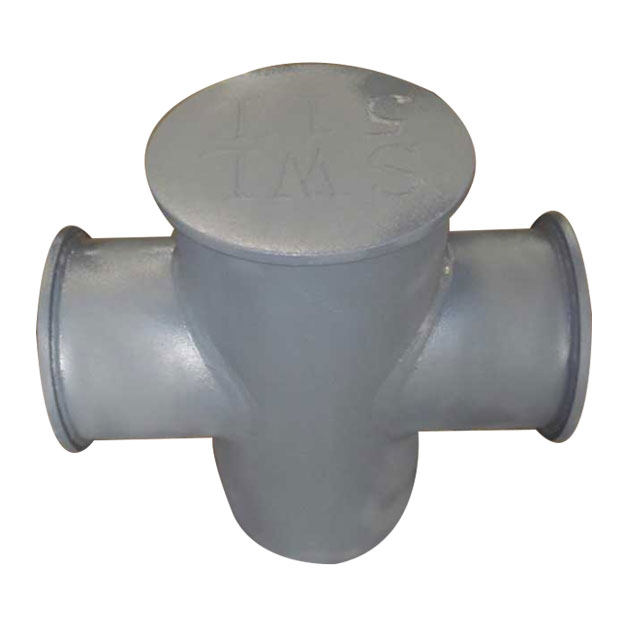

    ISO13797 Cruciform Bollard

    The posts of the cruciform bollard shall be constructed from steel tubes or formed from steel plates according to the standard of ISO13797. The marine bollard shall be constructed from weldable steel tubes having a yield point of not less than 215N/mm2 or formed from weldable steel plates having a yield point of not less than 235N/mm2. All surfaces of double cruciform bollards with the ropes shall be free from surface roughness or irregularities likely to cause damage to the ropes by abrasion. It shall be coated externally with an anti-corrosion protective finish. Depending on the manufacturing method of the material, ISO13797 cruciform bollards shall be classified as two types, Type A – manufactured by steel tubes ad Type B – manufactured by steel plates. The cruciform bollards are designed and manufactured to our customer’s precise requirements and provided with material certification.

    Features Of ISO13797 Cruciform Bollard

    Simple design

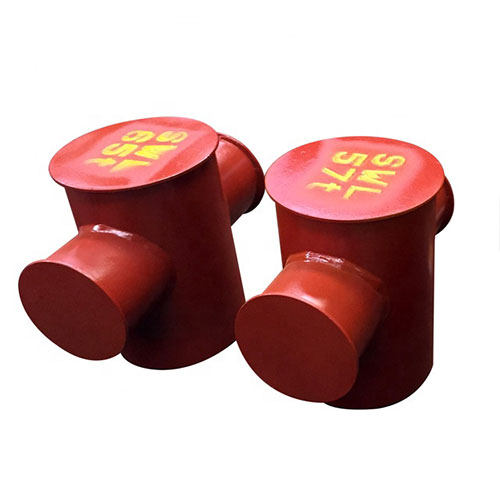

    Expressed SWL in tonnes (letter “t”) clearly on the surface
    International load and stress criteria
    Small wear-down allowances and corrosion additions

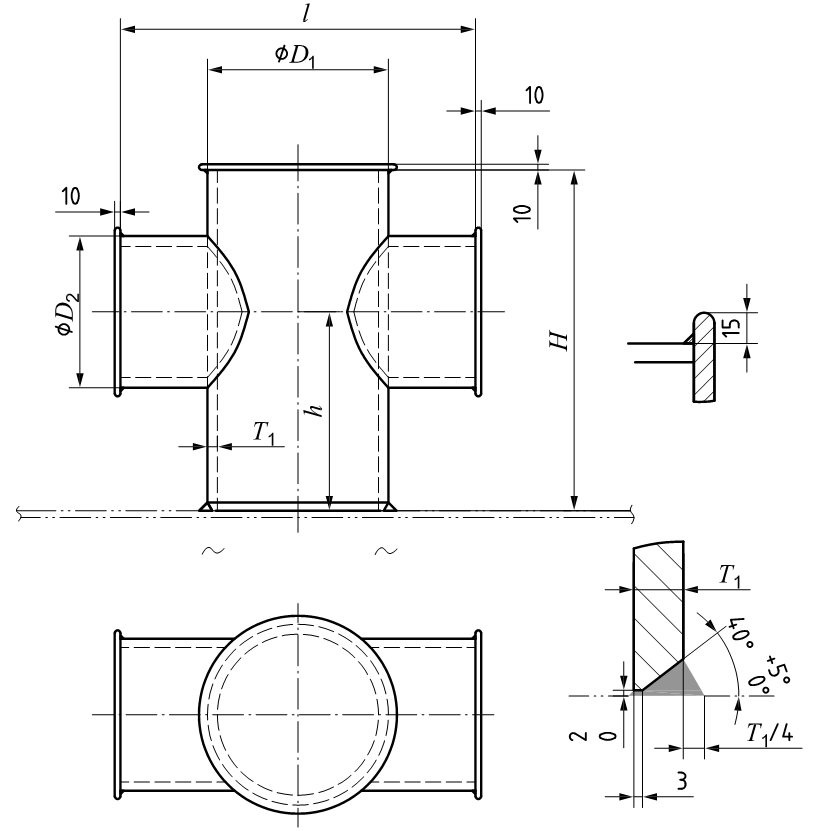

    Technical Parameters Of ISO13797 Cruciform Bollard

    Material: weldable steel plates or steel tubes
    SWL for one-rope use: 54kN to 1401kN
    Standard: ISO13795
    Surface Treatment: without any visible flaws or imperfections and coated externally with an anti-corrosion protective finish.

    Technical Parameters Of ISO13797 Cruciform Bollard

    Model No.

    Dimensions (mm)

    Bolts

    Capacity (T)



    A

    B

    C

    D

    E





    S01

    41

    291

    348

    330

    381

    M24*4

    10

    S02

    45

    320

    394

    362

    419

    M24*4

    15

    S03

    49

    349

    430

    381

    442

    M24*5

    20

    S04

    55

    392

    483

    429

    497

    M30*5

    30

    S05

    59

    419

    516

    457

    530

    M36*5

    50

    S06

    71

    489

    627

    556

    645

    M42*6

    75

    S07

    81

    559

    717

    635

    737

    M42*7

    100

    S08

    90

    615

    788

    699

    810

    M48*7

    125

    S09

    98

    671

    860

    762

    884

    M48*7

    150

    S10

    102

    699

    896

    794

    921

    M56*8

    200

    Workshop

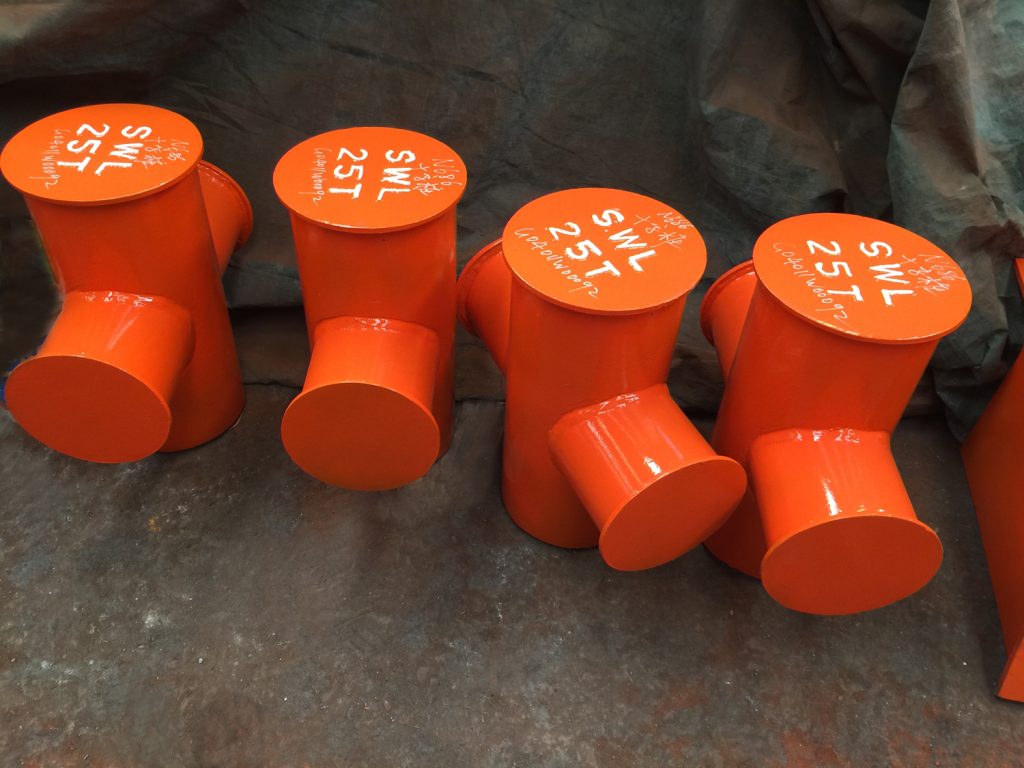

    workshop of ISO13797 cruciform bollard

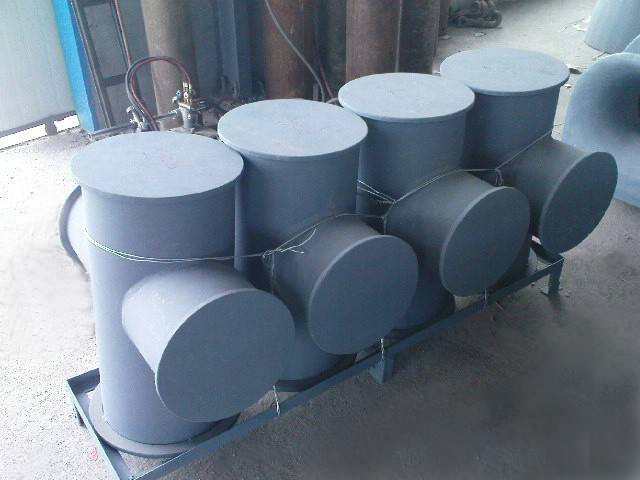

    factory of ISO13797 Cruciform Bollard

    Differences Between Type A And Type B

    The material between type A cruciform bollard and type B cruciform bollard is different. The yield strength of Type A cruciform bollard is 215N/mm2 and the yield strength of type B cruciform is 235N/mm2. Besides, there is little difference between the weights of two types, please refer to the technical parameters in the above table.
