GOST11265-73 Double Cruciform Bollard


  • Material: weldable steel plate & steel tube
  • Nominal Size: 135mm to 670mm
  • SWL: 25kN to 1000kN
  • Weight: 9.5KG to 950KG
  • OEM: Accepted
  • Bitt type: Double
  • Certificate: CCS, ABS, BV, DNVGL, NKK, etc.
  • Surface Treatment: without any visible flaws or imperfections and coated externally with an anti-corrosion protective finish.
  • Surface: Smooth
  • Standard: GOST11265-73
  • Application:Ship Mooring

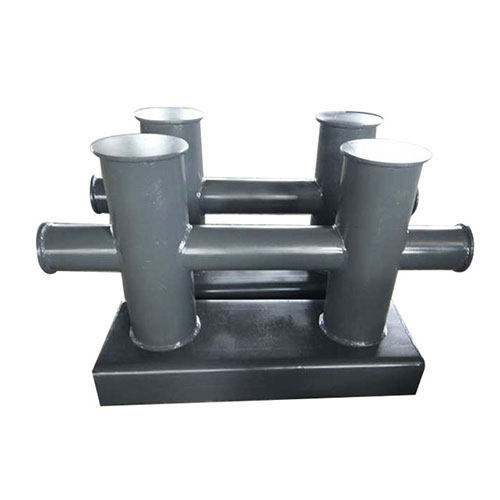

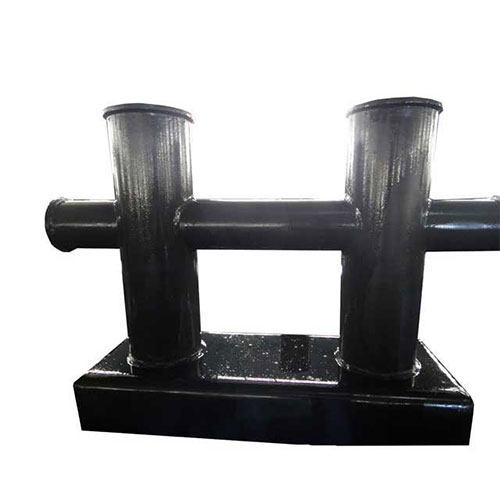

GOST11265-73 Double Cruciform Bollard

The Gost11265-73 double cruciform bollard is made of cast iron or cast steel according to the Russian Standard’s Requirements. It is also called cross bollard or cross bitts. It shall also be approved by the RMRS.  All surfaces or the marine bollards in contact with the ropes shall be free from surface roughness or irregularities likely to cause damage to the ropes by abrasion. Therefore, the polished, galvanized surface of the bollards makes the rope get less abrasion.

The color, material and other factors can be customized for the cruciform bollard offered by YSmarines as well as the certificates of CCS, ABS, BV, NKK, etc provided.

Features Of GOST11265-73 Double Cruciform Bollard

Low friction surface treatment
High holding force of the mooring ropes
Stable construction to ensure working in a tough environment

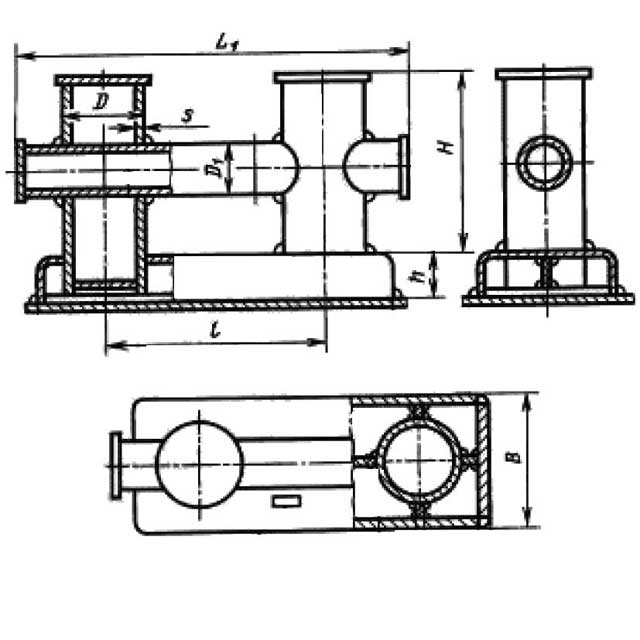

Technical Parameters Of GOST11265-73 Double Cruciform Bollard

Technical Parameters Of GOST11265-73 Double Cruciform Bollard

Nominal Size(mm)

Dimensions (mm)

SWL(kN)

Weight(kg)



B

D

D1

H

L

L1

h

s





135

135

70

38

140

175

315

38

6

25

9.5

160

160

95

48

180

225

405

46

6

40

15

180

180

114

57

220

275

495

54

8

63

27

200

206

140

70

280

350

630

66

8

100

42

250

262

178

89

360

460

810

82

8

160

75

300

323

219

108

440

550

990

103

10

250

160

450

440

299

159

560

700

1260

127

14

400

300

520

532

356

178

720

900

1620

164

16

630

520

670

676

457

245

900

1125

2025

205

18

1000

950

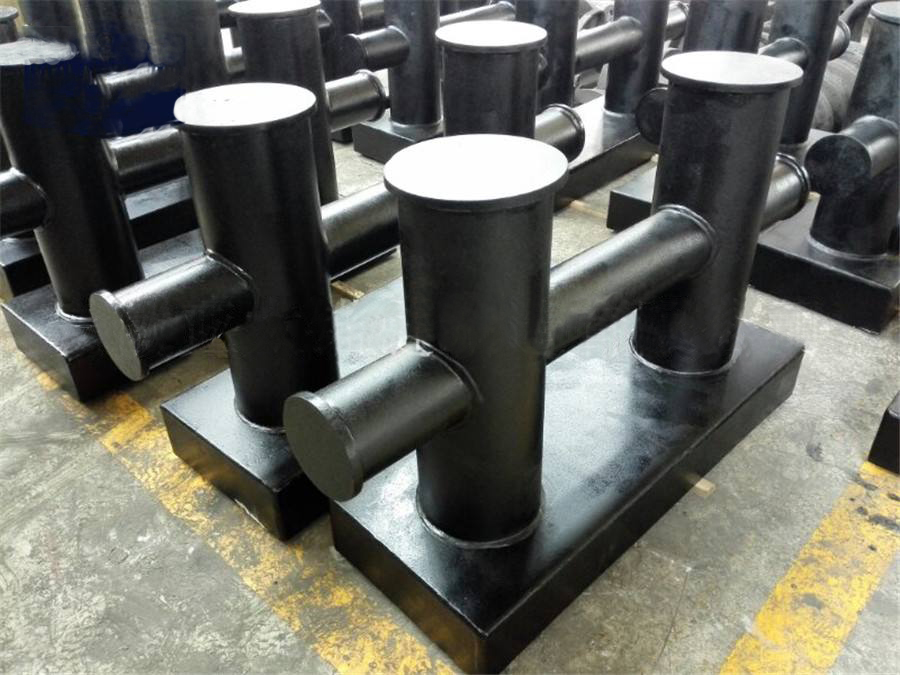

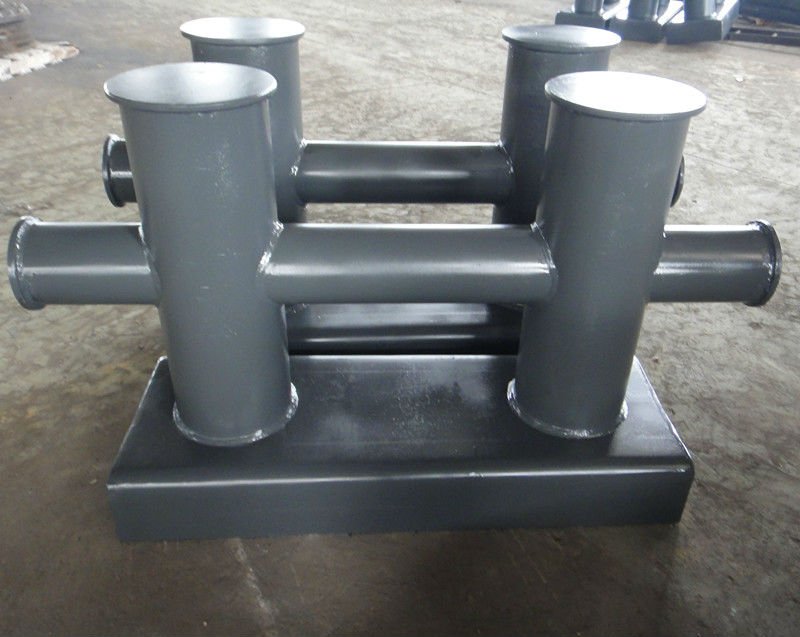

Workshop Of Ysmarines

Applications Of GOST11265-73 Bollard

Applications Of GOST11265-73 Bollard

Sea-going vessels
Inland vessels and boats
Navy vessels
Kinds of terminals
