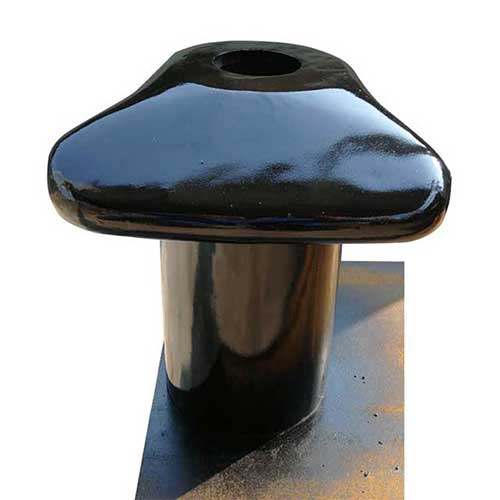

Curved Dock Bollard


  • Material: Cast Iron or Cast Steel
  • Type: Curved Head Type
  • Installation Method: By Anchoring Bolts
  • Capacity: 5Ton to 150Ton
  • Color: Black/Red/Yellow
  • Certificate: CCS, ABS, BV, DNVGL, NKK, etc.
  • Height: As customized

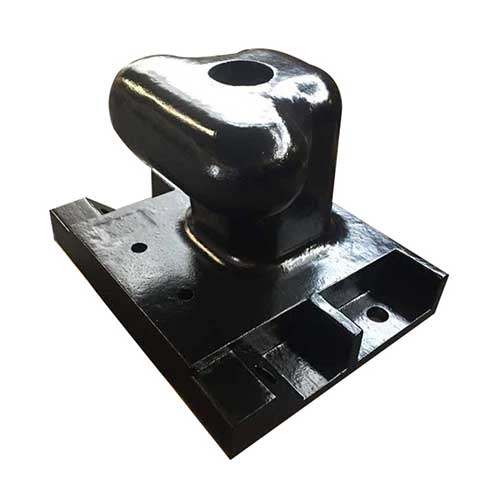

Curved Dock Bollard

Curved dock bollard is one of the most widely used types of mooring bollards. The upon the side of the bollard is also T head type (or Tee-head type), which is similar to the Tee-head bollard. If you have special requirements for the bollard, we can produce the products according to your drawings. It provides a simple and cost-effective way to fulfill mooring requirements and safely secure vessels alongside jetties, berths, wharves, and dolphins in ports and harbors.

The design of the mooring bollard is safe enough to withstand the big storm, not even the head, but also the body and base. The general material of the curved dock bollard is normally cast steel and cast iron. Different types of base are available to choose from, such as hexagon base, square base, round base and semi-circular base. However, we suggest choosing the hexagon base of the curved dock bollard to make the anchoring system much more stableYSmarines supplies a wide range type of curved dock bollards as clients’ requirements.

factory of Curved Dock Bollard

Features Of Curved Dock Bollard

● Wide range of base shapes for choice;
● Strong & long-lasting design;
● Standard loading ratings and anchoring system;
● Qualified epoxy coating.

Technical Parameters Of Curved Dock Bollard

Technical Parameters Of Curved Dock Bollard

Model No.

Dimensions (mm)

Bolts

Capacity



A

B

C

D

H





C01

300

360

320

150

380

M20*4

5

C02

400

480

430

200

480

M27*4

10

C03

500

600

650

250

580

M33*4

15

C04

600

700

790

300

690

M42*4

25

C05

600

720

810

300

690

M42*6

35

C06

700

840

945

350

780

M48*6

50

C07

800

1000

1130

400

900

M56*6

70

C08

900

1200

1365

450

990

M64*6

100

C09

1100

1600

1765

550

1260

M80*6

150

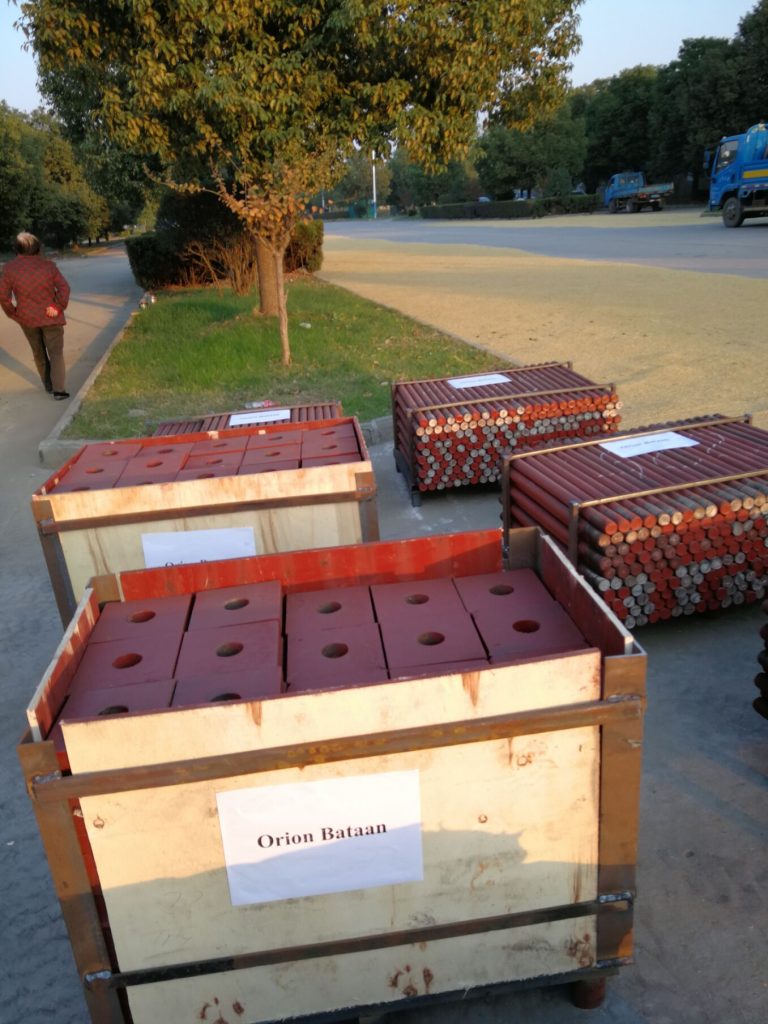

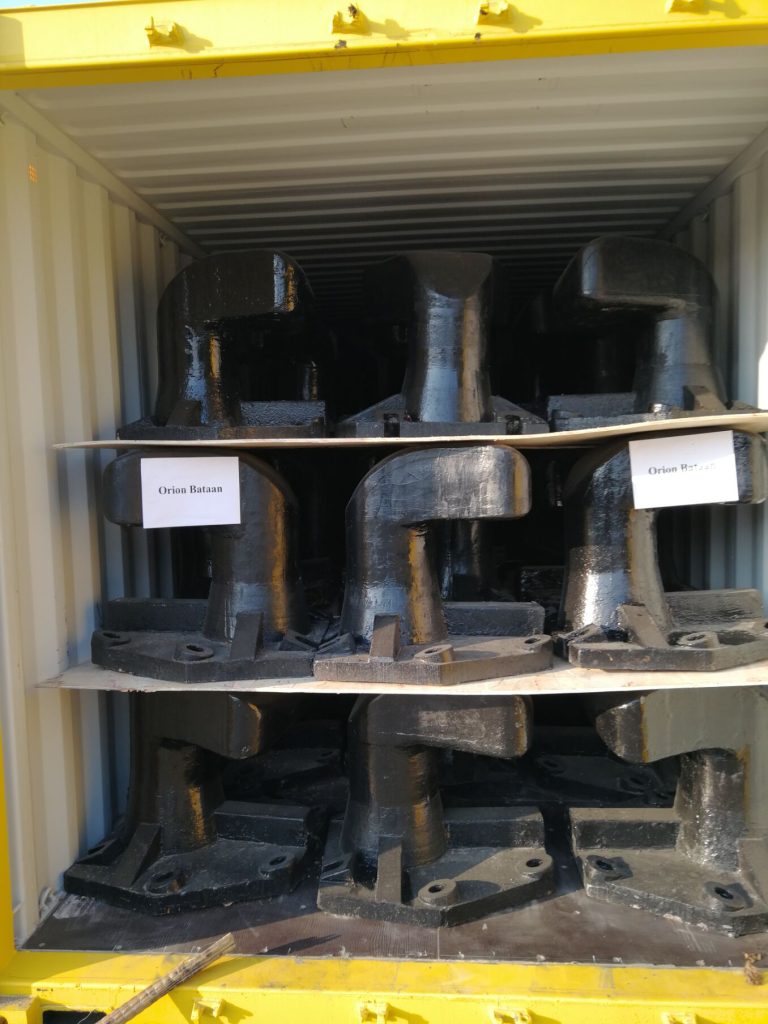

Package Of Curved Dock Bollard

● Packaged by wooden case;
● Packaged by steel case;
● Packaged by container directly;
●Anchor fittings are packaged by wooden case with steel frame.

FAQ About Curved Dock Bollard

1. Can you supply OEM or ODM service?
A: Yes, we have a great research & development team. The curved dock bollards can be customized according to your request.

2. How to choose a dock bollard?
A: You can choose the dock bollard regarding the following parameters: shape, material quality, anchoring system, corrosion protection, safety factors and design methods.

3. How to choose the material?
A: Both steel and iron models are strong and durable, though steel is more subject to corrosion. Gray iron is the least expensive and resists corrosion very well, but is weaker and less durable than the other materials.

4. Can you provide the relevant documentation and certificate?
A: Yes, we can provide you with the documentation and certificates you need, such as CO, Form E, Form F, Mill’s certificates, CCS, BV, etc.

5. What is your term of delivery?
A: We accept EXW, FOB, CIF, DDU and DDP, etc. You can choose the one that is the most convenient for you.
