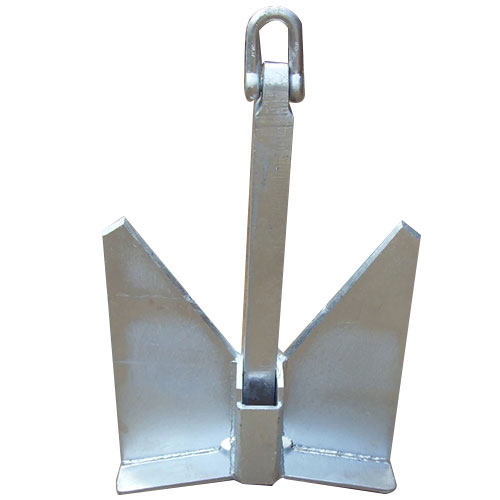

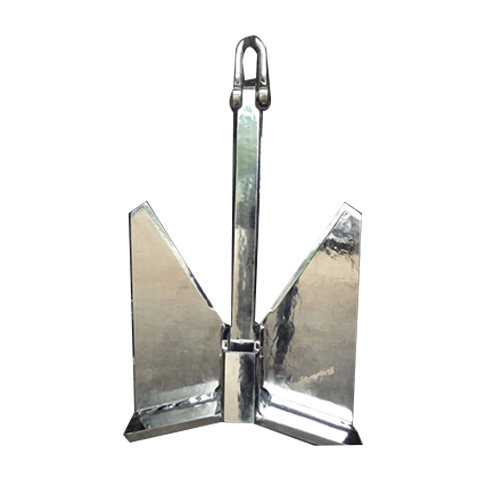

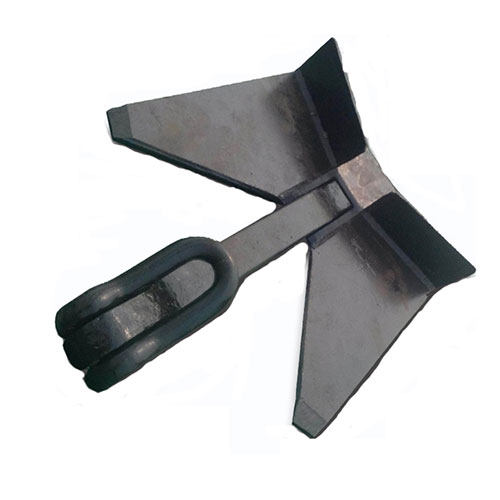

High Holding Power (HHP) TW Type Anchor


  • HHP TW Type Anchor
  • Weight: 20KG to 1000000KG
  • Material: ZG230-45CH, Q345C, stainless steel 316L
  • Finishing: Black painting, hot-dip galvanized
  • Certificate: DNV-GL, BV, LRS, ABS, RINA, IRS, RS, CCS, KR, NK, etc
  • Fully balanced or unbalanced anchor
  • Customized design is available

High Holding Power(HHP) TW Type Anchor

TW type anchor is one kind of stockless high holding power anchor. The TW type HHP anchor has more than 2 times holding power than the conventional anchor of the same weight. The anchor has large flat flukes made out of high tensile steel plate material. The thickness varies from 15 mm up to 140 mm depending on the anchor size. It allows a weight reduction of 25% compared to a conventional anchor for the same equipment number It has a fully balanced type and unbalanced type. The fully balanced type always has its flukes in a vertical position while lifting the anchor. The unbalanced type will tip over to one side. YSmarines is a marine anchor manufacturer and supplies TW type anchors with the advantage of rich source, good quality and service.

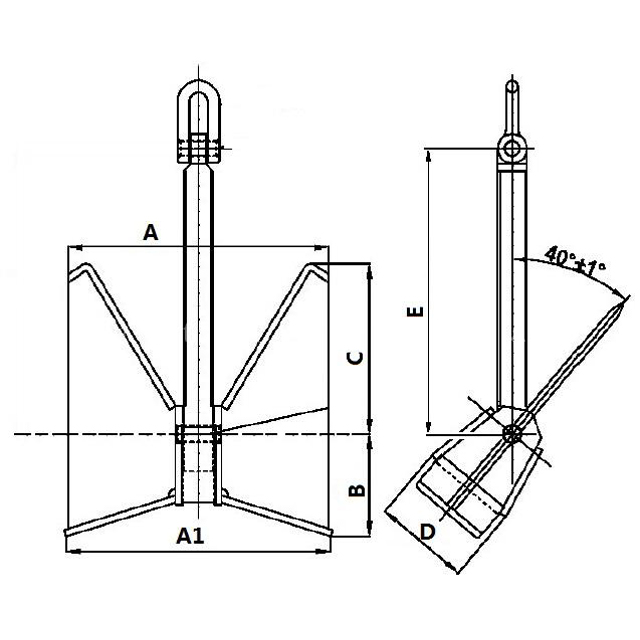

Drawings of High Holding Power(HHP) TW Type Anchor
Norminal Weight(kg) A A1 B C D E
20 369 374 144 240 136 402
32 435 437 168 280 158 469
40 536 476 183 305 172 510
60 578 544 210 349 197 585
75 600 587 225 376 212 630
80  600  610  225  400 222  685
90  615  624  240 400 226 670
105  640  650  250 422 240 705
125  686  697 267  447 254  750
135  705  716  274 459  261 773
145  720  730 280 470  266  788
160  746  758  290  486  276  818
180  770 787  301  505  287  850
225  836  848 325  544  309  915
270  888  902  342  573  326 965
300  920  933  357  598  340  1008
 360 978  993  380  637 362  1072
400  996  1010  386  648  374  1090
 450  1038  1053  403  675  390  1137
495 1086  1103 422  707  402  1190
 565 1136  1153  425  740  420  1245
585 1160  1180  450 755  428  1270
 675 1205 1224 468  785  446  1322
 765  1257  1276 488  818  465  1378
 855  1286 1306 500  841  482  1411
 1000  1360  1380 528 885  503  1480
 1080 1400  1420 542  915  520  1530
1130  1410  1430 547  917  521  1544
 1195  1458  1479  566  949  540  1597
 1305 1486 1509  579 973  556  1634
 1440  1535 1560  596 1001  578  1683
 1575  1584 1608  615 1032  596  1735
 1710 1628 1651 632  1060  612  1782
 1845 1670 1695 648  1087  628  1828
1980   1704 1731 667 1119  638  1880
 2140 1754 1768  676 1135 655 1908
 2295 1795 1822  697  1169  675  1966
 2475  1841 1868  715  1199  692  2016
 2665 1886 1912  732  1228  708  2064
 2750  1907  1930 738  1238  715  2082
 2835  1926 1955  748  1255  725 2110
 3000   1972  2002  765  1285  742  2160
 3240  2014  2044  782 1311 757  2205
 3445 2056 2087  798  1340  774  2258
 3690  2100 2130  815  1367  790  2298
