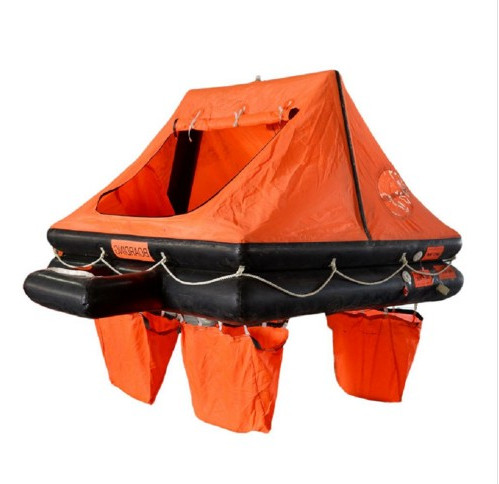

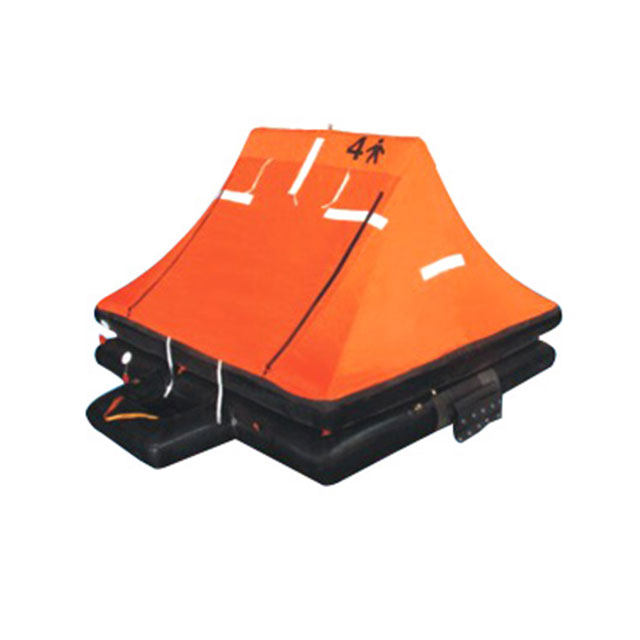

Throw-over (U) type Inflatable Life Raft For Yacht


  • The life raft is made of rubber nylon cloth, which can be folded and stored;
  • It can be quickly inflated and formed when thrown into water.
  • Have capacity to accommodate 4,6, 8,10,12,persons.
  • It have a canopy, the floor shall be water tight.
  • It is suitable for small craft up to 24m length of hull as life saving equipment.

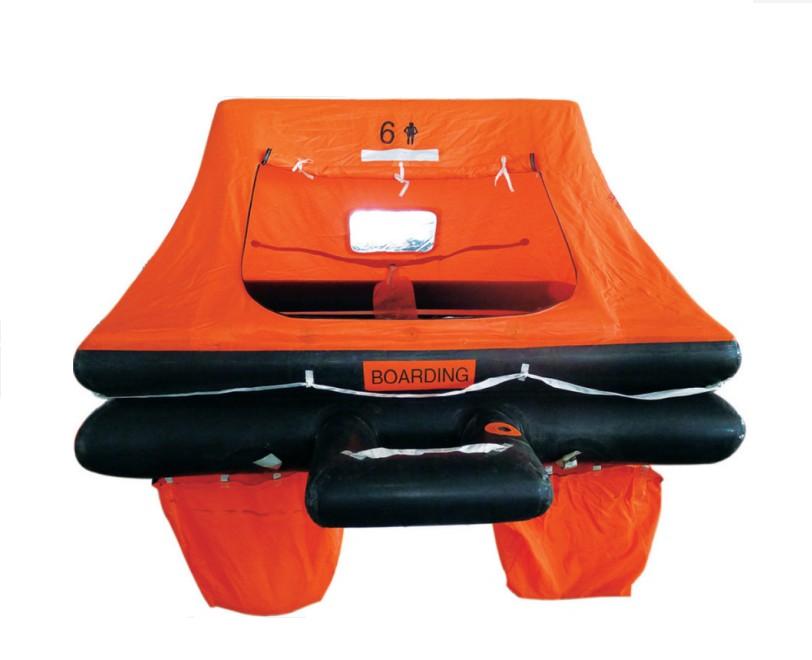

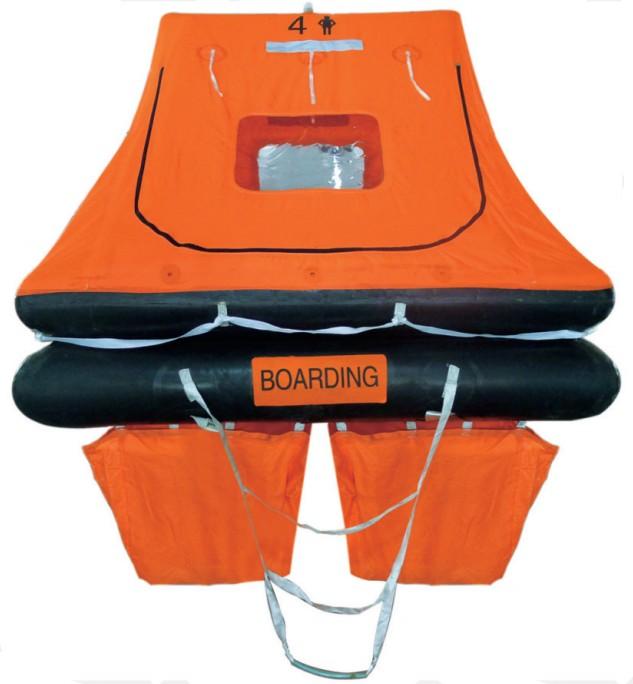

Throw-over (U) type Inflatable Life Raft For Yacht

The inflatable life raft is a throw-over type, designed specifically for the use of the yacht. It is regarded as the ship’s life-saving essential equipment in an emergency and can be widely used to escape from dangerous areas or evacuate from ships in distress. The life raft is made of rubber nylon cloth, which can be folded and stored, and has a lightweight and small standing position. It can be quickly inflated and formed when thrown into the water. The life raft for a yacht is more professional and its volume is relatively small with lightweight. The occupant capacity is 4-12 persons, more suitable for small vessels used in short-term offshore sailing.

Throw-over (U) type Inflatable Life Raft For Yacht

Characteristics Of U Type Inflatable Life Raft For Yacht

After throw-over from the ship, the life-raft can be inflated and opened automatically. If the ship sinks very fast and the life-raft can not be thrown-over, the raft still can float up from water under the action of Hydro-static Release Unit can be inflated and opened automatically.
Have capacity to accommodate 4,6, 8,10,12,persons.
Have a canopy to protect occupants from exposure.
The floor shall be watertight and insulated from protection against cold water.
It is suitable for small craft up to 24m length of the hull as life-saving equipment.
Max. Storage height: The installation height is 6m from the water surface.
A pack or B pack (A PACK for voyage>24h, B PACK for voyage <24h)

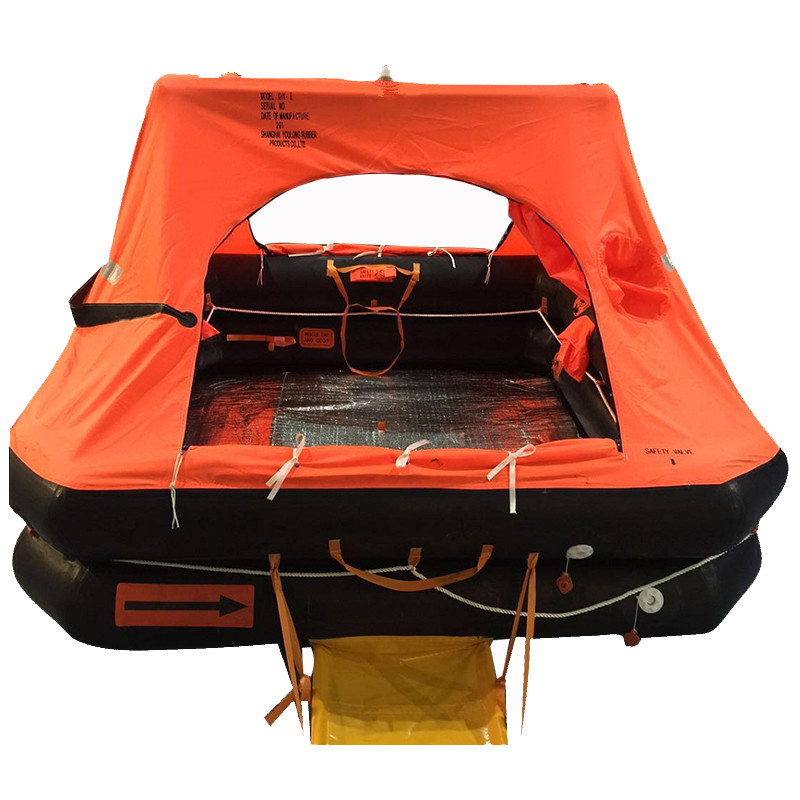

U Type Inflatable Life Raft For Yacht

Standards Of YSmarines Inflatable Life Raft For Yacht

It meets the requirements of ISO9650-1(small craft-inflatable life raft)

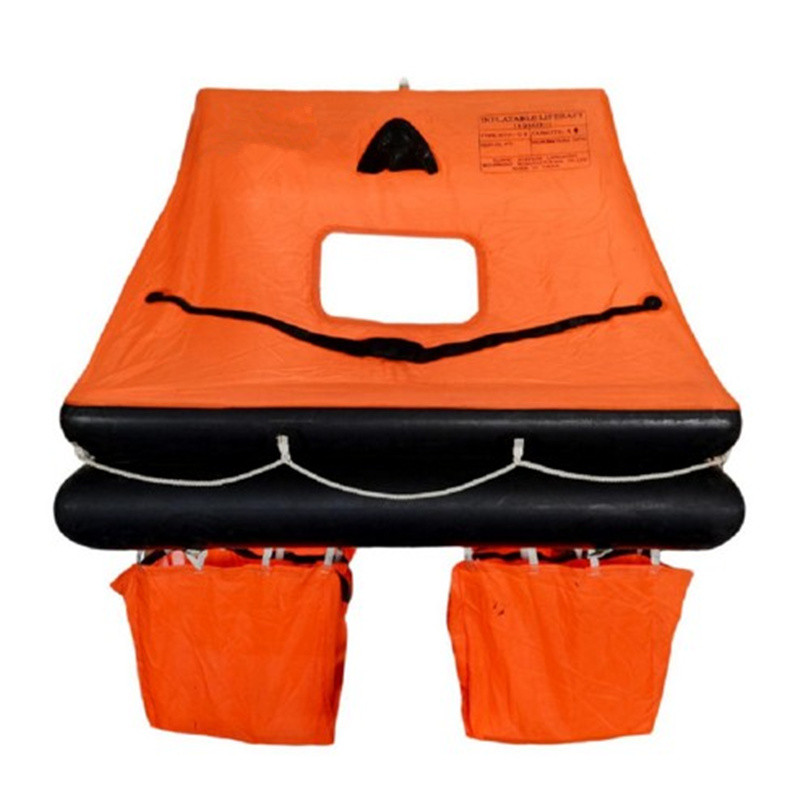

YSmarines Inflatable Life Raft For Yacht

Certificate Of YSmarines Inflatable Life Raft

Germanischer Llyod AG (GL) test certificate

YSmarines Inflatable Life Raft





Type





Capacity





Length

(mm)





Width

(mm)





Height

(mm)

Container Size  L*W*H (mm)

A PACK

B PACK

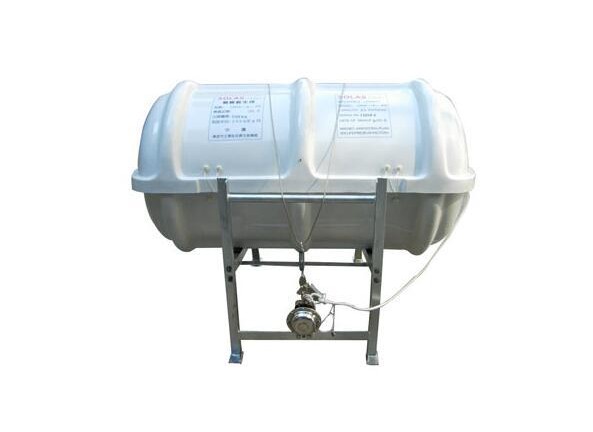

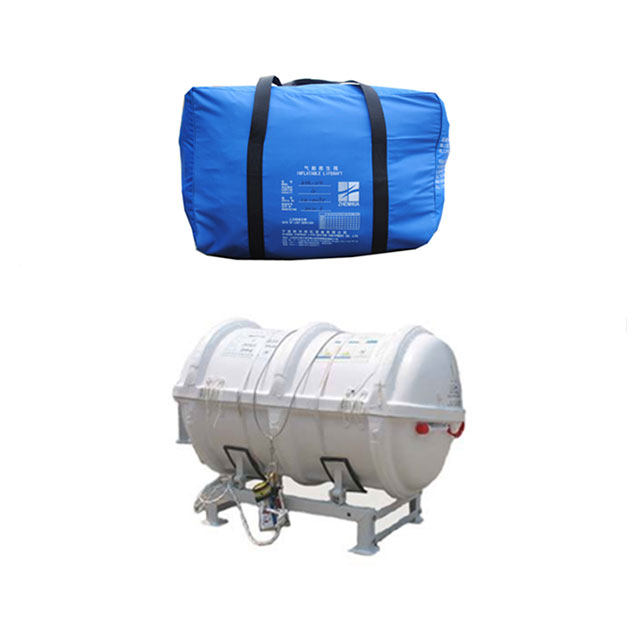

Canister

Valise

Canister

Valise

U4

4

1665

1665

1200

780*535*360

650*350*400

730*485*300

550*330*360

U6

6

1965

1965

1200

780*535*390

730*350*470

730*485*300

650*350*400

U8

8

2240

2240

1250

880*630*350

730*370*500

780*485*300

730*350*470

U10

10

2700

2700

1300

880*630*380

800*390*520

780*535*390

730*370*500

U12

12

2935

2935

1350

880*630*470

800*390*520

880*630*350

800*390*520

Accessory List  Of Inflatable Life Raft

No.

Name

Quantity

1

Sponge

2

2

Buoyant Paddle

2

3

Whistle

1

4

Floatable Bailer

1

5

Water-proof Flash

1

6

Signal Mirror

1

7

Seasick Pill

6/person

8

Disposal Bag

1/person

9

Hand-held Red Flares

3

10

Red Parachute Flares

2

11

Repair Kit

1

12

Air Pump or Inflator

1

13

Manual

1

Inflatable Life Raft

Packaging Of YSmarines Inflatable Life Raft

1. Generally, we pack our goods in neutral brown cartons or wooden frame cases, ensure that the goods are not damaged in transit. And the inside of the package is covered with a valise pack or white rigid pack.  On the outside of the box, the shipping mark will be marked to facilitate the customer to receive the goods.

2. We can also customize the packaging according to the customer’s requirements.

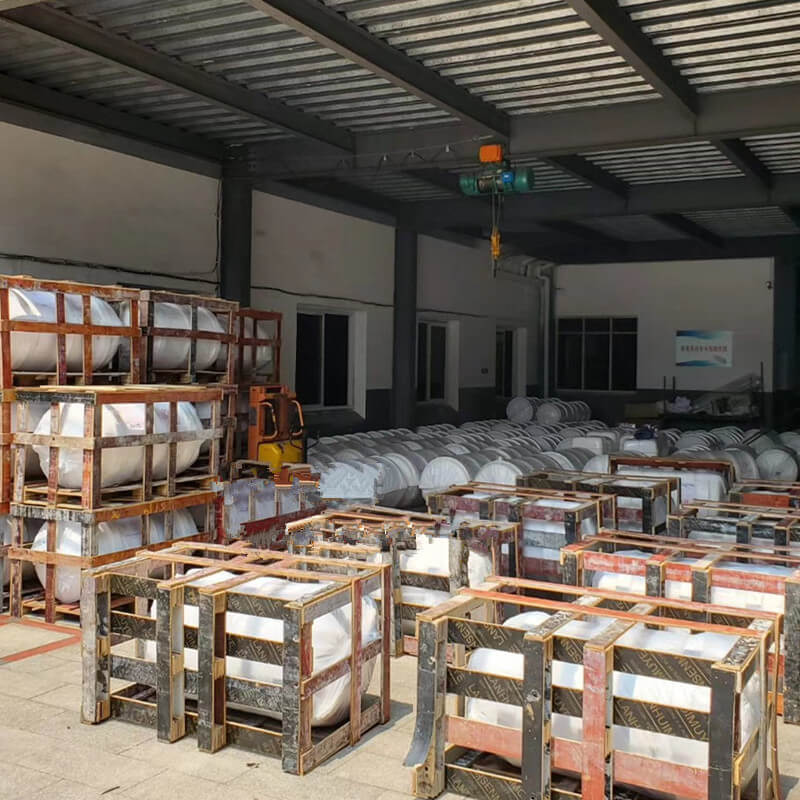

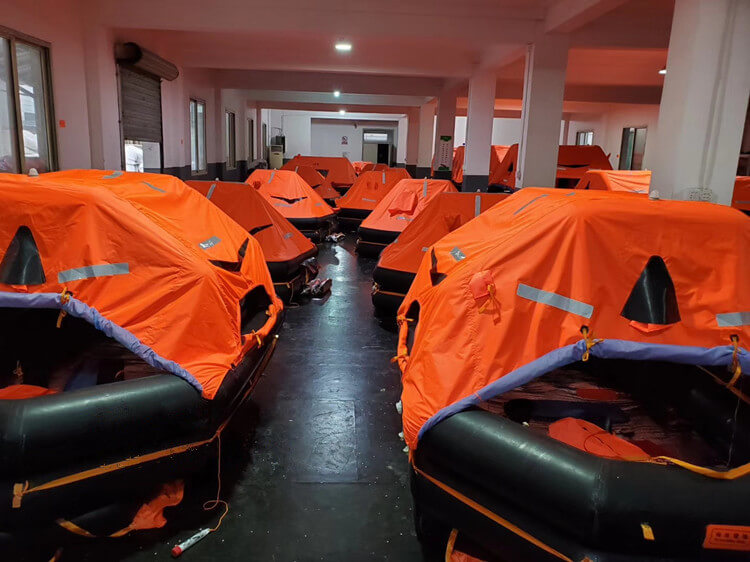

Workshop Of Inflatable Life Raft

Recommended Transportation Selections Of Life Raft

By Express

By Air Transportation

By Sea Transportation

Suitable for sample order or <50kg goods

Fast 3~10 days

High shipping cost

Door to door service

Suitable for >50kg goods

Fast 3~7days

Lower than the express cost

Airport to airport service

Professional broker needed

Suitable for >300kg goods

Fast 7~45days

Lowest cost

Port to port service

Professional broker needed

FAQ Of YSmarines Inflatable Life Raft

Q1: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. By the way, The color and material of the chairs also can be customized.
Q2. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
Q3. How do you make our business long-term and a good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you have any questions about the problem, contact us, we will offer the solve way for you.
