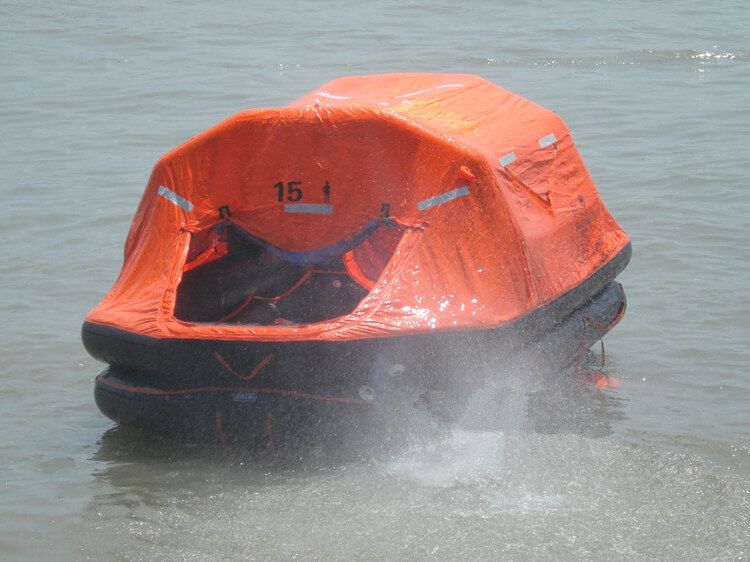

Throw-over Type Self Inflating Life Raft Type AZ(SOLAS)


  • The life raft is made of rubber nylon cloth,which can be folded and stored.
  • The life-raft can be self-righting inflated and opened automatically.
  • Have capacity to accommodate 6, 10,12,15,16, 20, 25 persons.
  • It have a canopy, the floor shall be water tight.
  • Max. Storage height: The installation height is 18m-46m from water surface.

Throw-over Type Self Inflating Life Raft Type AZ

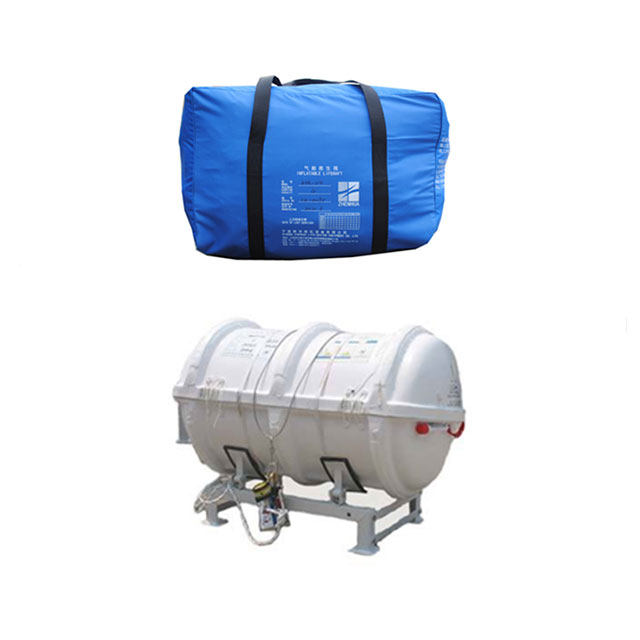

The self-inflating life raft can be self-rightinginflated and opened automatically with the capacity of 6-25 persons and is a kind of throw-over life aft. It is suitable for installing ships on international voyages, widely used in all types of ships offshore, coastal, inland navigation, providing emergency life-saving purposes. The installation height is 18m-46m from the water surface. It has the characteristics of reasonable structureadvanced materials with high stable performance. Life raft packaging in glass fiber reinforced plastic storage cylinder at ordinary times, life raft special raft frame installed on the ship’s rail, life raft can be directly cast into the water, the raft can automatic filling bulge forming, for the mishap, if the ship sinks too fast, too late to raft tossed into the water, when the ship sinks in a certain depth of water, the liferaft frame of hydrostatic pressure release automatically decoupling, release the liferaft. YSmarines is specialized in providing premium quality self-inflatable life raft, the most competitive price guaranteed.

Characteristics Of Self Inflating Life Raft

After throw-over from the ship, the life-raft can be self-righting inflated and opened automatically. If the ship sinks very fast and the life-raft can not be thrown-over, the raft still can float up from water under the action of the Hydro-static Release Unit can be inflated and opened automatically.
Have capacity to accommodate 6, 10,12,15,16, 20, 25 persons.
Have a canopy to protect occupants from exposure.
The floor shall be watertight and insulated from protection against cold water.
A pack and B pack (ships engaged on the short international voyage)
Equipped with some life-saving tools and first aid kit and freshwater.

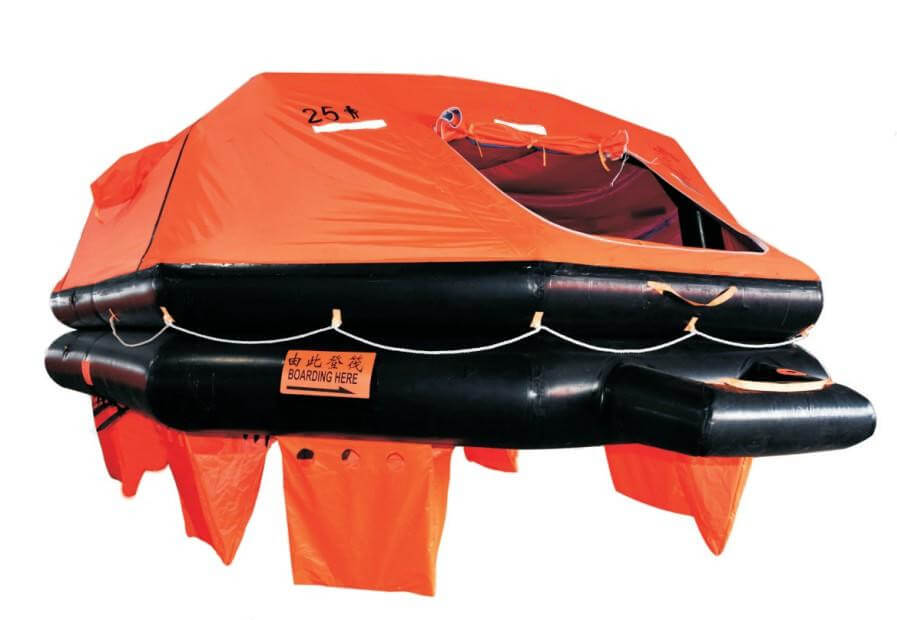

Self Inflating Life Raft

Standards Of YSmarines Self Inflating Life Raft

It meets the requirements of 《Regulations for the statutory surveys of ships and offshore installations》 “Technical regulations for the statutory surveys of sea-going ships engaged on international voyages (2004) ” of P.R.C. and SOLAS 74/96 amendment. LSA and MSC.

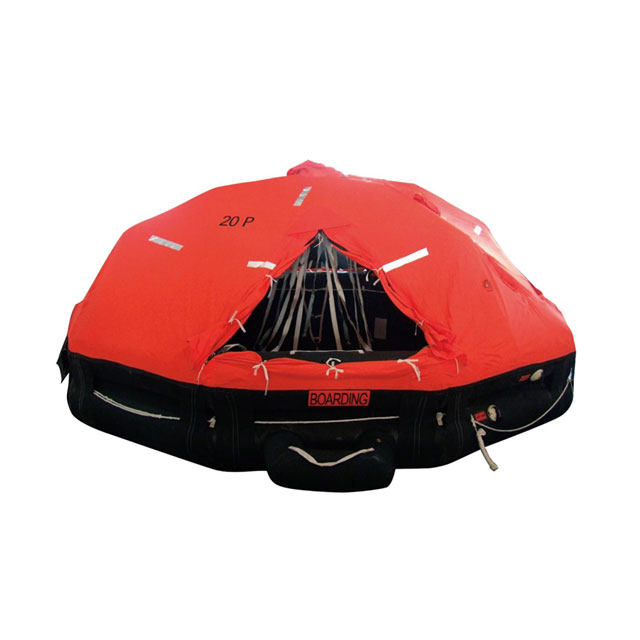

 YSmarines Self Inflating Life Raft

Certificate Of YSmarines Inflating Life Raft

China Classification Society (CCS)(81)70.
Certificate of type approval.
Germanischer Llyod AG (GL)
EC Type Examination Certificate.

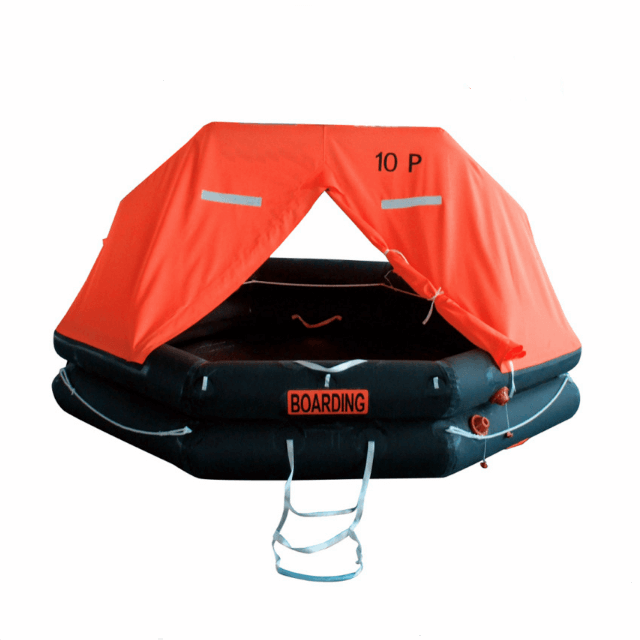

YSmarines Inflating Life Raft



Type



Capacity



Length

(mm)



Width

(mm)



Height

(mm)



Container Dia.

(mm)



Container Length

(mm)

Weight(KG)

A PACK

B PACK

AZ6

6

2735

1745

1400

690

1122

≤85

≤70

AZ10

10

3450

2210

1600

720

1275

≤105

≤80

AZ12

12

3815

2345

1700

720

1275

≤118

≤90

AZ15

15

4200

2735

1875

750

1430

≤145

≤110

AZ16

16

4200

2735

1875

750

1430

≤150

≤115

AZ20

20

4740

2960

1950

800

1637

≤170

≤125

AZ25

25

5280

3240

2100

800

1637

≤195

≤148

Accessory List Of Self Inflating Life Raft

No

Name

Unit

Quantity

A Pack

B Pack

1

Ration

pk(0.5Kg)

1/Person

.

2

Fresh Water

pk(0.5L)

3/Person

3

Rocket Parachute Flare

PC

4

2

4

Hand-Held Flare Signal

PC

6

3

5

Floating Smoke Signal

PC

2

1

6

Thermal Protective Aid

PC

2

2

7

Sea Anchor

PC

2

2

8

Water-proof Flash

PC

1

1

9

Floatable Rescue Quoit

PC

1

1

10

First Aid Kit

PC

1

1

11

Radar Reflector

SET

1

12

Sunlight Signal Mirror

SET

1

1

13

Whistle

PC

1

1

14

Paddle

PC

2

2

15

Fishing Kit

SET

1

16

Bailer

PC

1~2

1-2

17

Sponge

PC

2

2

18

Drinking Measuring Cup

PC

1

19

Disposal Bag

PC

1/Person

1/Person

20

Survivor’s Manual

COPY

1

1

21

Bellows Inflator

PC

1

1

22

Floatable Knife

PC

1~2

1~2

23

Can-openers

PC

3

24

Seasick Pill

TABLET

6/Person

6/Person

25

Emergency Action Card

COPY

1

1

26

Operations Manual

COPY

1

1

27

Repair Fit

SET

1

1

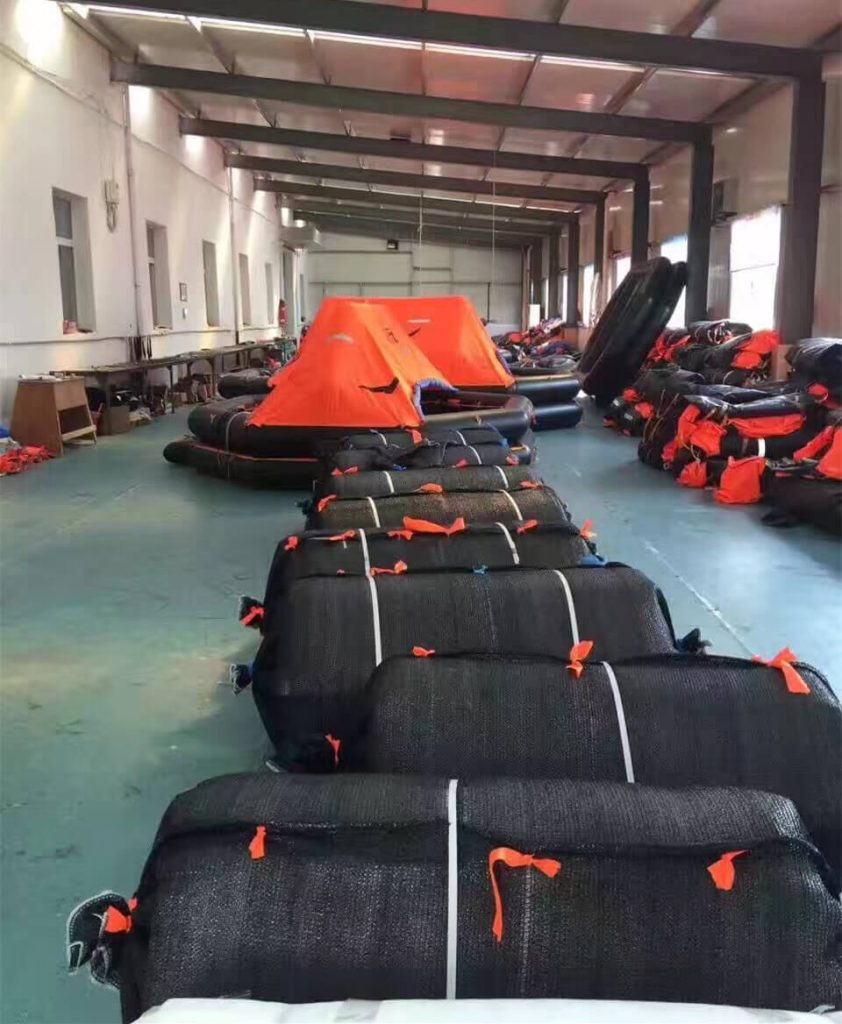

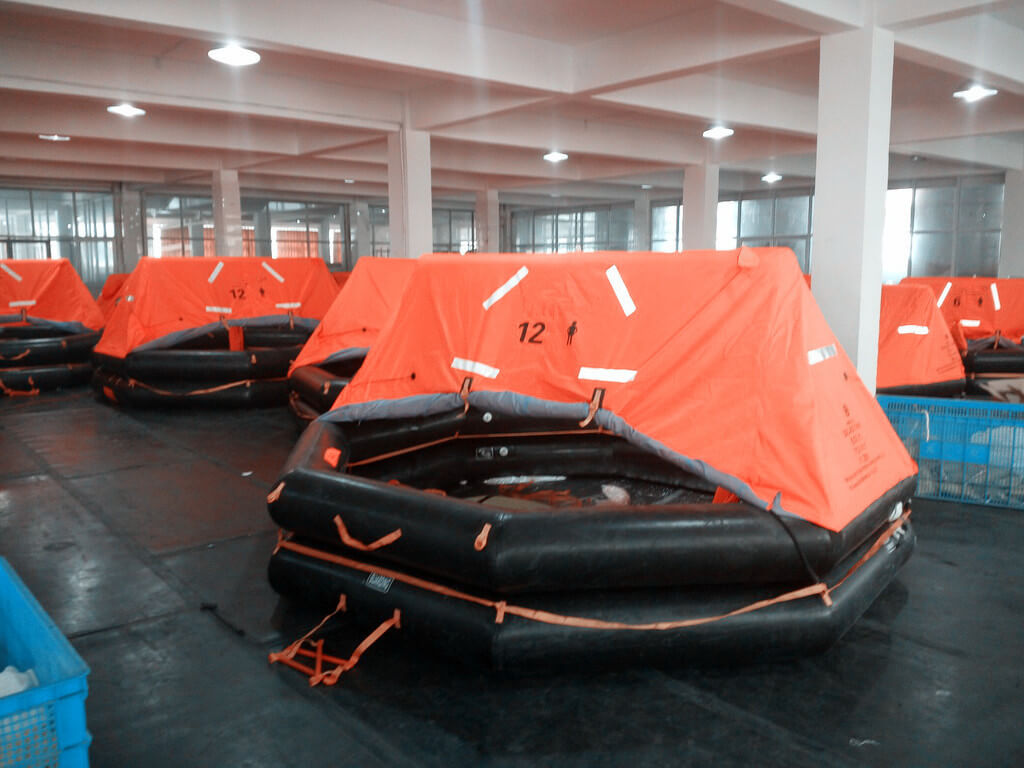

Workshop Of Self Inflating Life Raft

Applications Of Self Inflating Life Raft

Applications Of Self Inflating Life Raft

FAQ Of YSmarines Self Inflating Life Raft

Q1: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. By the way, The color and material of the chairs also can be customized.
Q2. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
Q3. How do you make our business long-term and a good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you have any questions about the problem, contact us, we will offer the solve way for you.
