Throw-over Type Emergency Inflatable Life Raft Type A


  • The life raft is made of rubber nylon cloth, which can be folded and stored.
  • The life-raft can be inflated and opened automatically.
  • Have capacity to accommodate 6, 10,15,16, 20, 25 persons.
  • It have a canopy, the floor shall be water tight.
  • Max. Storage height: The installation height is 18m-35m from water surface.

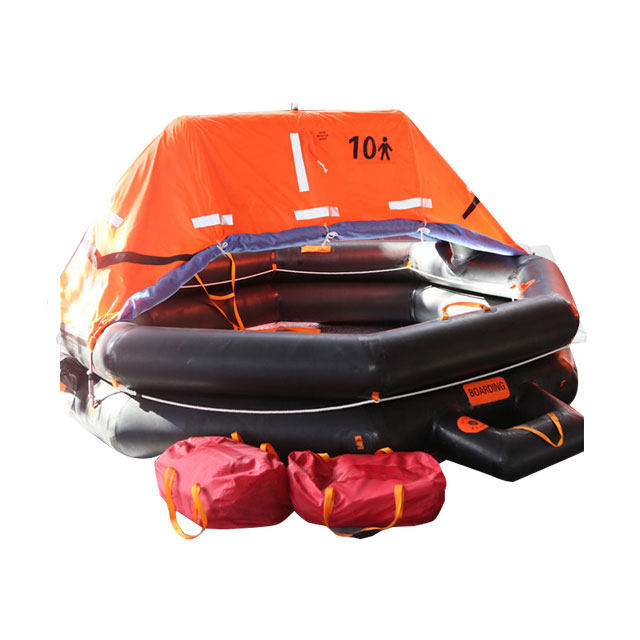

Throw-over Type Emergency Inflatable Life Raft Type A

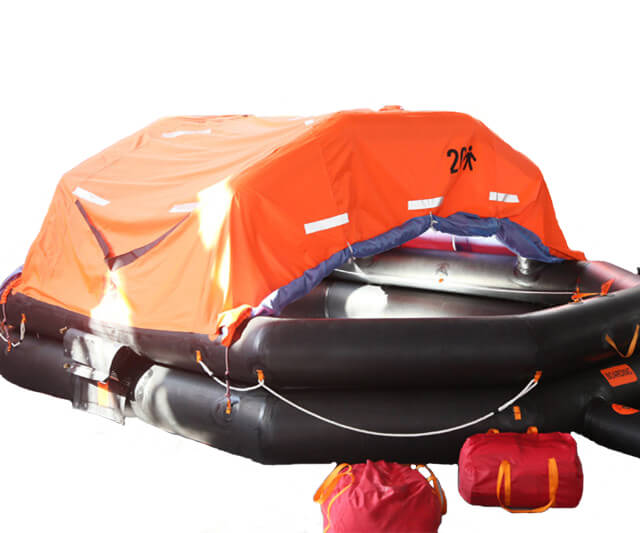

The emergency inflatable life raft is a throw-over type, designed for ships engaged in international voyage. It is equipped with a radar reflector, can send out a distress signal to help the search and rescue team found the rescue target. The installation height is 18m-35m from the water surface. It is made of rubber nylon cloth, which can be folded and stored with lightweight. It has a capacity of 6-30 persons. YSmarines, which is a professional manufacturer & supplier for superb quality marine and offshore equipment, can offer the customers world-class emergency inflatable life raft which is made of high standard materials.

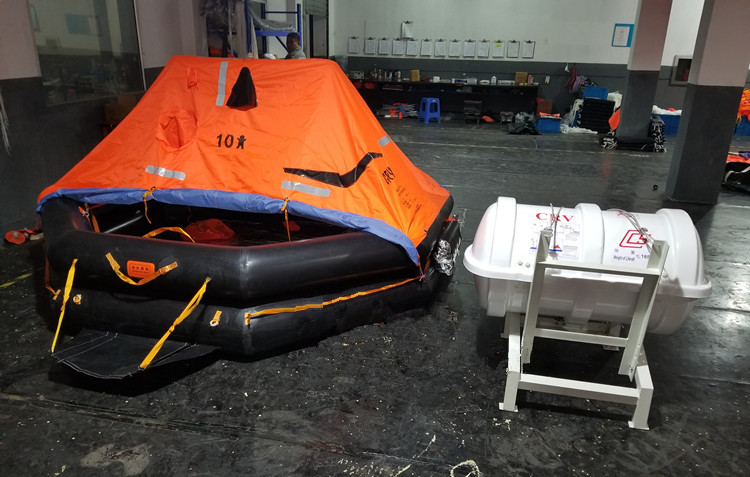

Throw-over Type Emergency Inflatable Life Raft Type A

Characteristics Of Emergency Inflatable Life Raft

After throw-over from the ship, the life-raft can be inflated and opened automatically. If the ship sinks very fast and the life-raft can not be thrown-over, the raft still can float up from water under the action of the hydro-static Release Unit can be inflated and opened automatically.
Have capacity to accommodate 6, 10,15,16, 20, 25 persons.
Have a canopy to protect occupants from exposure.
The floor shall be watertight and insulated from protection against cold water.
A pack and B pack (ships engaged on the short international voyage)

Emergency Inflatable Life Raft

Standards Of YSmarines Inflatable Life Raft

It meets the requirements of 《Regulations for the statutory surveys of ships and offshore installations》 “Technical regulations for the statutory surveys of sea-going ships engaged on international voyages (2004) ” of P.R.C. and SOLAS 74/96 amendment. LSA and MSC.(81)70.

YSmarines Inflatable Life Raft

Certificate Of YSmarines Emergency Inflatable Life Raft

China Classification Society (CCS)
Certificate of type approval.
Register of Fishing Vessel of P.R.C. (ZY)
Germanischer Llyod AG (GL)
EC Type Examination Certificate.



Type



Capacity



Length

(mm)



Width

(mm)



Height

(mm)



Container Dia.

(mm)



Container Length

(mm)

Weight (KG)

A PACK

B PACK

A6

6

2175

2175

1250

610

1100

≤85

≤70

A10

10

2730

2730

1400

685

1150

≤105

≤80

A15

15

3380

3380

1500

700

1300

≤135

≤100

A16

16

3380

3380

1500

700

1300

≤137

≤100

A20

20

4350

3050

1600

730

1550

≤170

≤125

A25

25

4835

3325

1700

730

1550

≤200

≤145

Accessory List Of Type A Emergency Inflatable Life Raft

No

Name

Unit

Quantity

A Pack

B Pack

1

Ration

pk(0.5Kg)

1/Person

.

2

Fresh Water

pk(0.5L)

3/Person

3

Rocket Parachute Flare

PC

4

2

4

Hand-Held Flare Signal

PC

6

3

5

Floating Smoke Signal

PC

2

1

6

Thermal Protective Aid

PC

2

2

7

Sea Anchor

PC

2

2

8

Water-proof Flash

PC

1

1

9

Floatable Rescue Quoit

PC

1

1

10

First Aid Kit

PC

1

1

11

Radar Reflector

SET

1

12

Sunlight Signal Mirror

SET

1

1

13

Whistle

PC

1

1

14

Paddle

PC

2

2

15

Fishing Kit

SET

1

16

Bailer

PC

1~2

1-2

17

Sponge

PC

2

2

18

Drinking Measuring Cup

PC

1

19

Disposal Bag

PC

1/Person

1/Person

20

Survivor’s Manual

COPY

1

1

21

Bellows Inflator

PC

1

1

22

Floatable Knife

PC

1~2

1~2

23

Can-openers

PC

3

24

Seasick Pill

TABLET

6/Person

6/Person

25

Emergency Action Card

COPY

1

1

26

Operations Manual

COPY

1

1

27

Repair Fit

SET

1

1

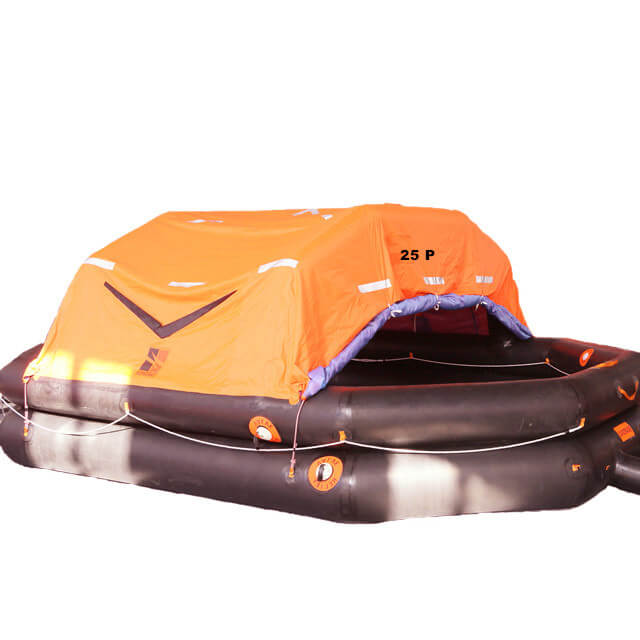

Type A Emergency Inflatable Life Raft

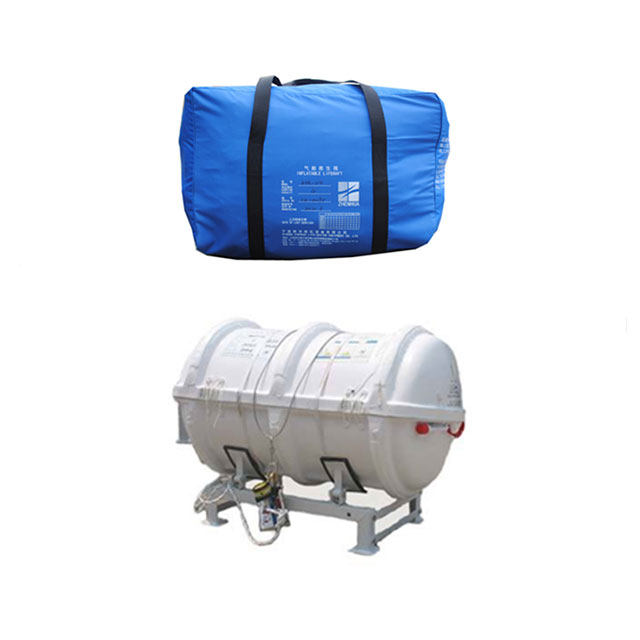

Packaging Of YSmarines Inflatable Life Raft

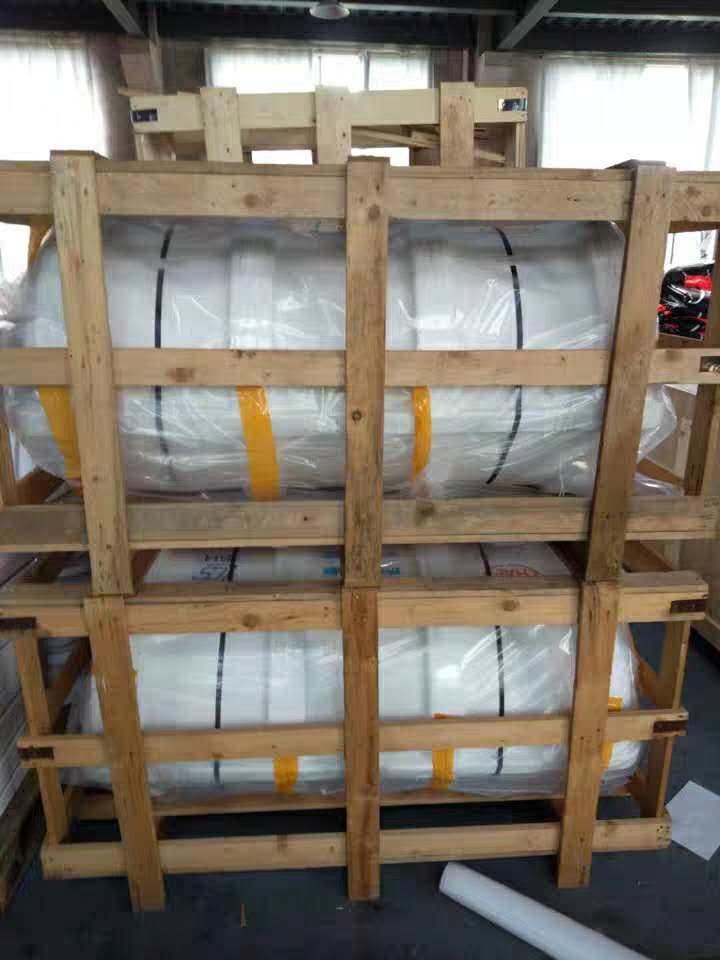

1. Generally, we pack our goods in neutral brown cartons or wooden frame cases, ensure that the goods are not damaged in transit. And the inside of the package is covered with a valise pack or white rigid pack.  On the outside of the box, the shipping mark will be marked to facilitate the customer to receive the goods.

2. We can also customize the packaging according to the customer’s requirements.

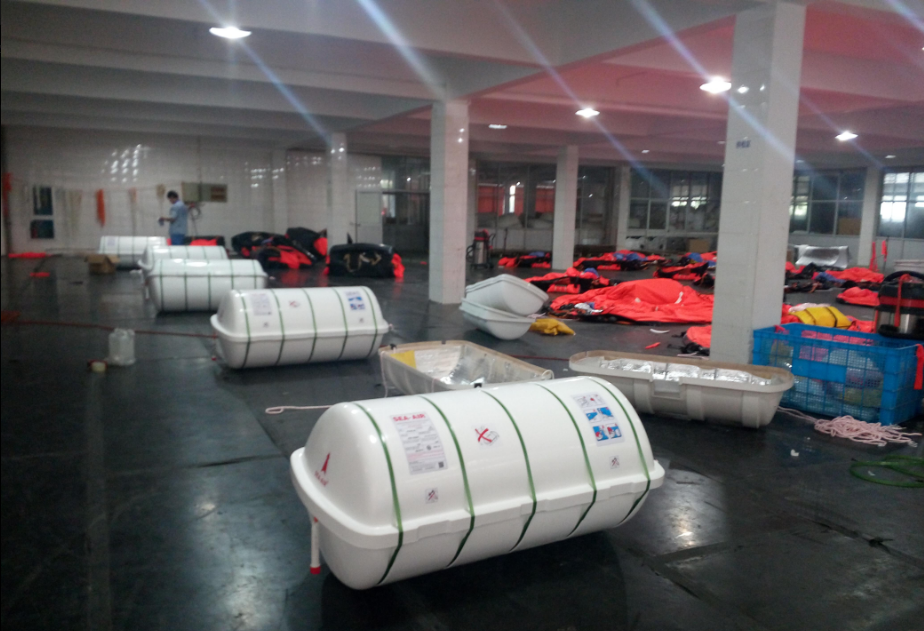

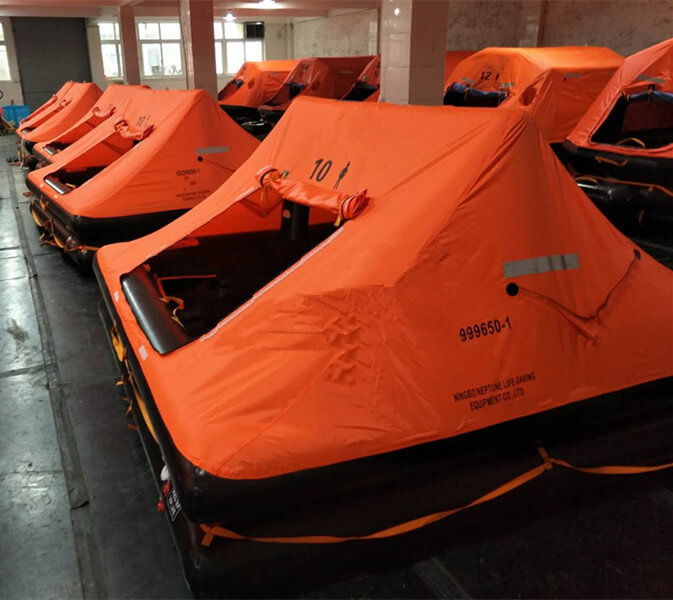

Workshop Of Emergency Inflatable Life Raft Type A

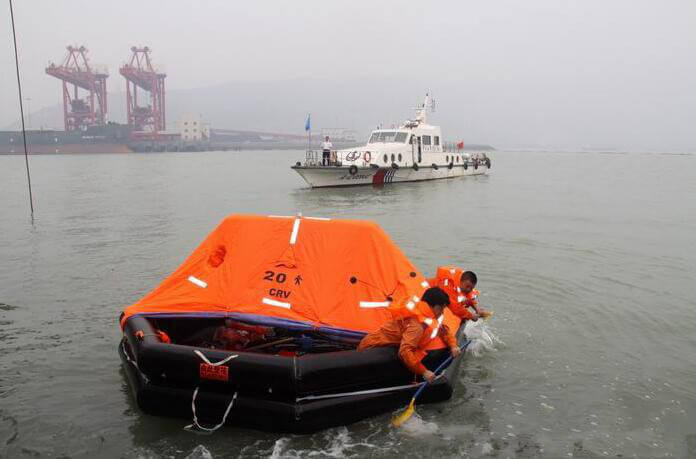

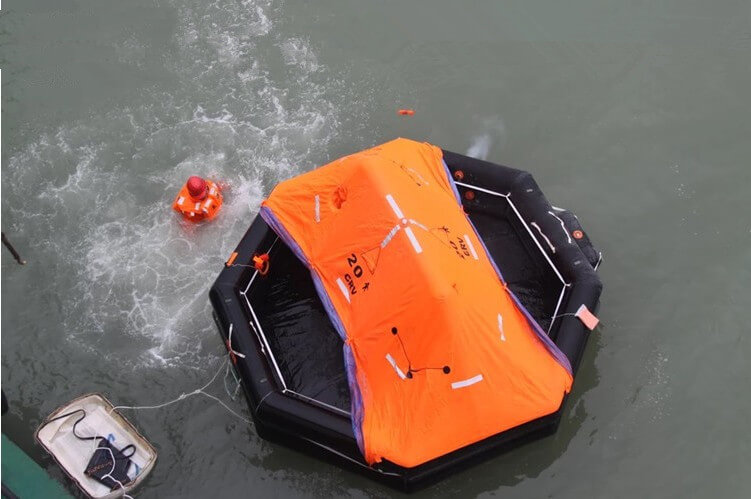

Applications Of Inflatable Life Raft

Recommended Transportation Selections Of Inflatable Life Raft

By Express

By Air Transportation

By Sea Transportation

Suitable for sample order or <50kg of goods

Fast 3~10 days

High shipping cost

Door to door service

Suitable for >50kg of goods

Fast 3~7days

Lower than the express cost

Airport to airport service

Professional broker needed

Suitable for >300kg of goods

Fast 7~45days

Lowest cost

Port to port service

Professional broker needed
