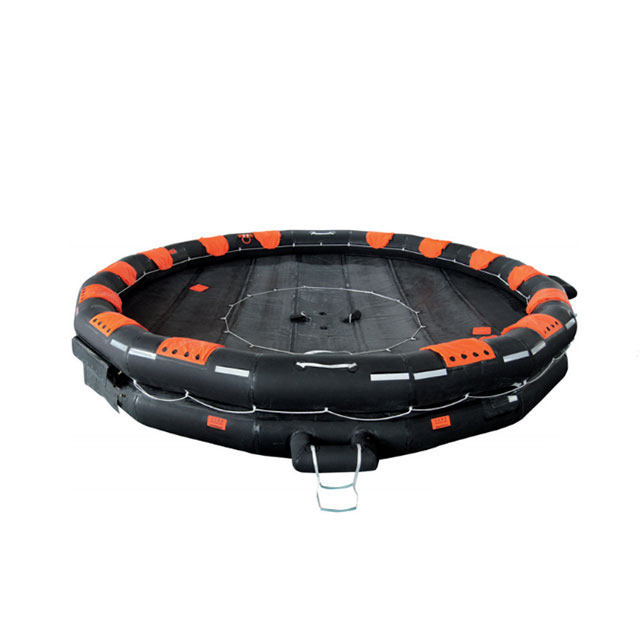

Open Reversible Inflatable Life Raft Type K


  • The life raft is made of rubber nylon cloth, which can be folded and stored;
  • It can be quickly inflated and formed when thrown into water.
  • Have capacity to accommodate 6, 10,15,20,25,30,35,50,65,100persons.
  • Floor shall be water tight and insulated from protection against cold water.
  • It is suitable for international class A high speed ships.

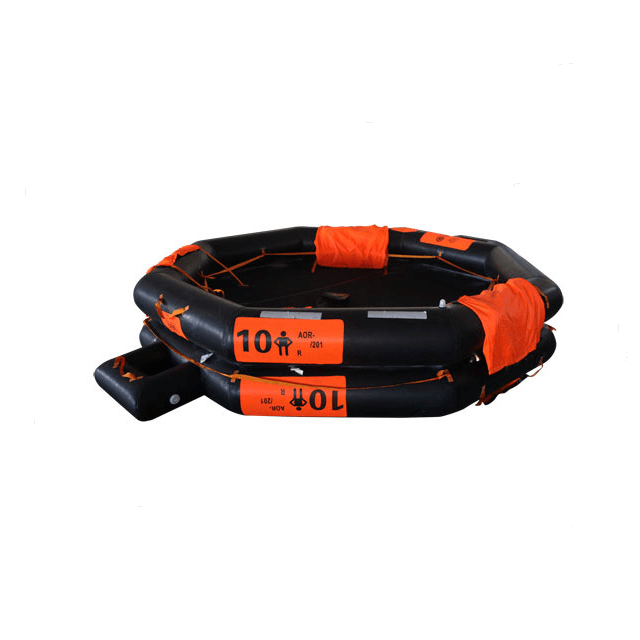

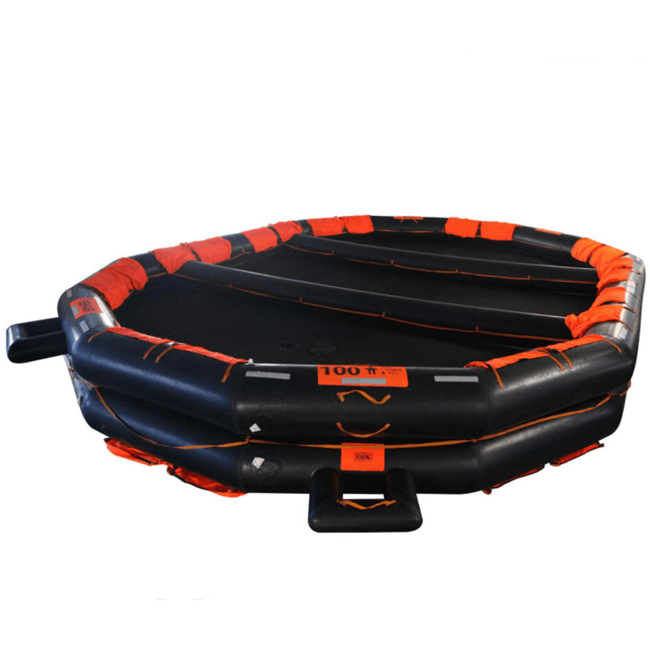

Open Reversible Inflatable Life Raft Type K

The open reversible inflatable life raft a floating device that can be used by many people, equipped with a paddle, which is suitable for escaping from dangerous areas. It is designed for type A high-speed vessels. Have no canopy, after the raft is aerated and formed on the surface of the water, people in the water can embark from the two boarding platforms set symmetrically on both sides of the float or from either side of the float, which is convenient and fast. The bottom of the raft is arranged between the upper and lower floating tires. Therefore, no matter under what sea conditions, the buoy is in a state of positive buoyancy (both sides can be used) after inflatable forming on the sea surface, it does not need manual righting.  Structure simplesimple and reliable use. And it is also can be applied for flood disaster prevention or other more emergency situation. The inflatable life raft is for sale at YSmarines, with superb quality and the best price promised.

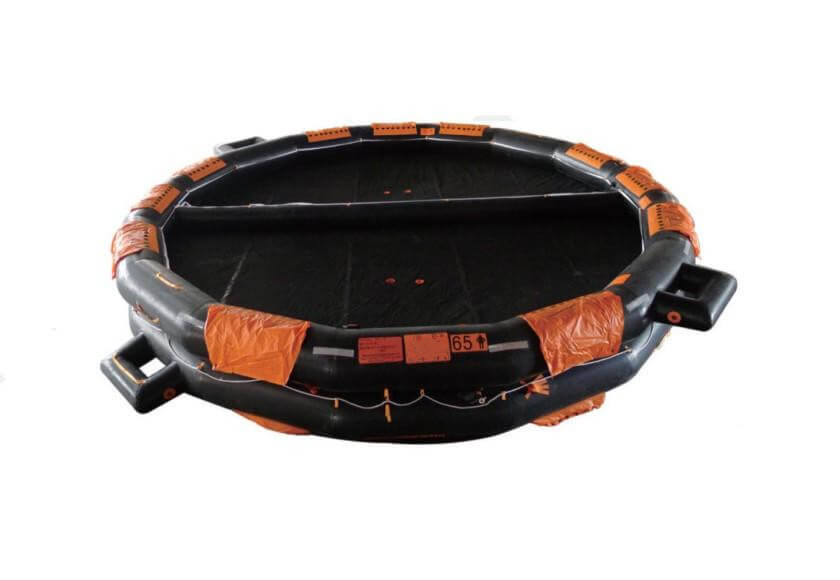

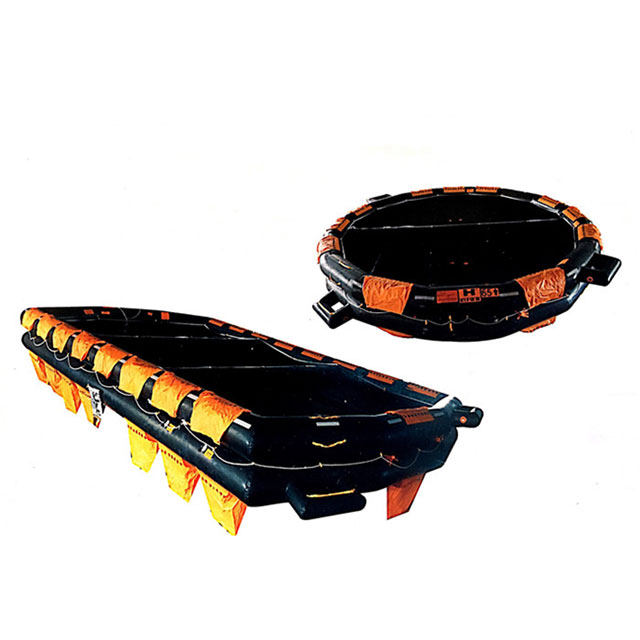

Open Reversible Inflatable Life Raft Type K

Characteristics Of Open Reversible Inflatable Life Raft

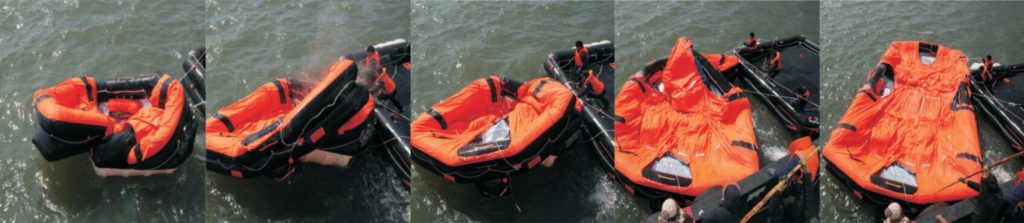

After throw-over from the ship, the life-raft can be inflated and opened automatically. If the ship sinks very fast and the life-raft can not be thrown-over, the raft still can float up from water under the action of the Hydro-static Release Unit can be inflated and opened automatically.
Easy to use, both sides can be used.
Have capacity to accommodate 6, 10,15,20,25,30,35,50,65,100 persons.
The floor shall be watertight and insulated from protection against cold water.
It is suitable for international class A high-speed ships.
Max. Storage height: The installation height is 18m from the water surface.

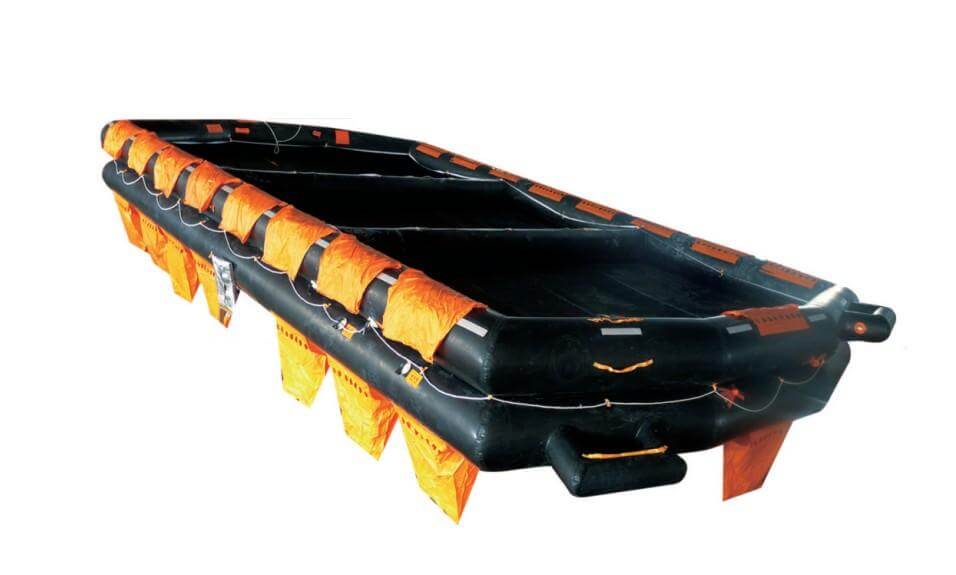

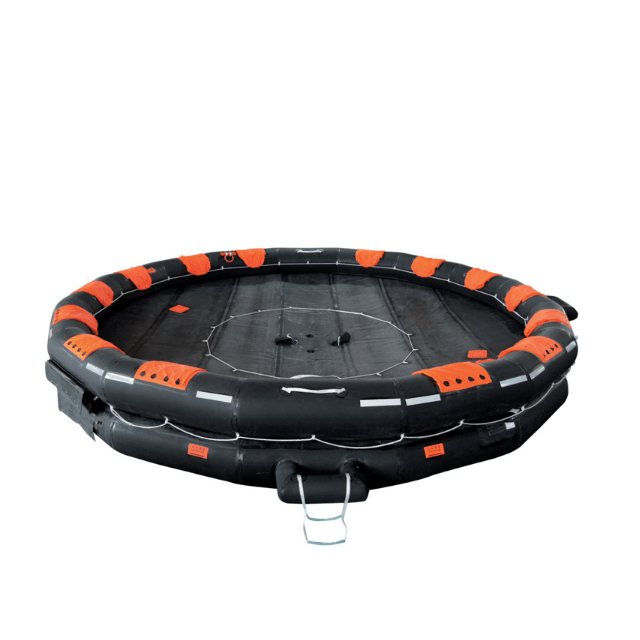

Open Reversible Inflatable Life Raft

Standards Of YSmarines Open Reversible Inflatable Life Raft

It meets MSC.97(73) International Safety Regulations For Class A High-Speed Craft (HSC 2000) Appendix 11.

Type

Capacity

Length*Dia.

mm

Weight

kg

K6

6

840*540

<44

K10

10

1060*550

<55

K15

15

1060*580

<64

K20

20

1100*610

<80

K25

25

1120*630

<93

K30

30

1260*650

<98

K35

35

1260*650

<121

K50

50

1380*700

<161

K65

65

1520*750

<183

K100

100

1960*850

<305

Accessory List Of Open Reversible Life Raft

No

Name

UNIT

Quantity

1

Floatable Rescue Quoit

PC

1

2

Floatable Knife

PC

2

3

Sponge

PC

2

4

Bailer

PC

1-2

5

Water-proof Flash

PC

1

6

Sea Anchor

PC

1

7

Paddle

PC

2

8

First Aid Kit

PC

1

9

Whistle

PC

1

10

Hand-held Flare Signal

PC

2

11

Inflator

PC

1-2

12

Operations Manual

COPY

1

13

Repair Fit

SET

1

Open Reversible Life Raft

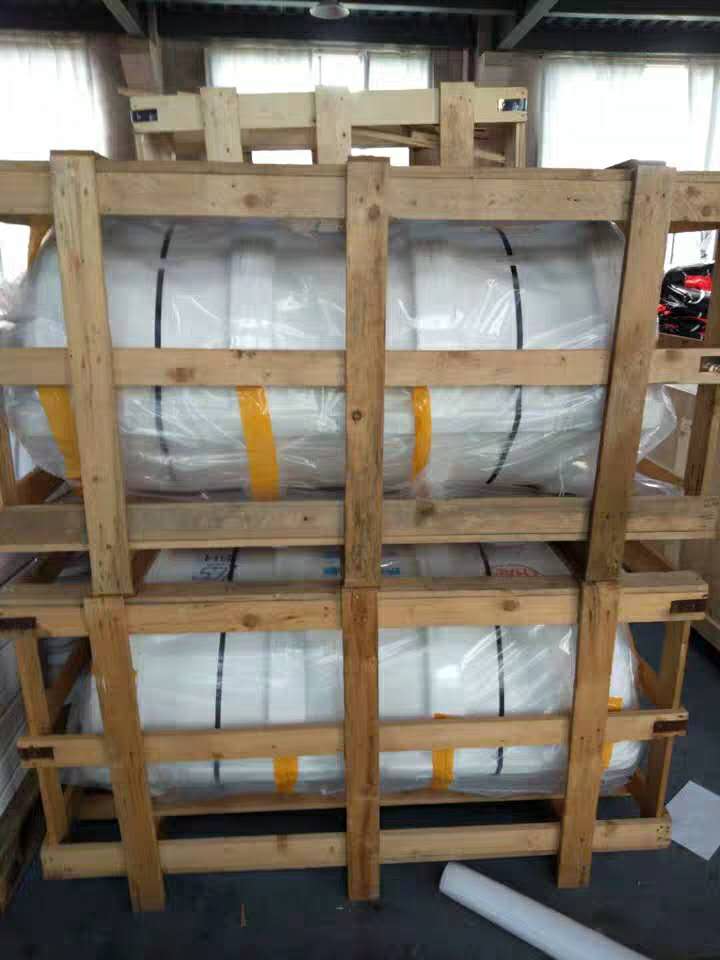

Packaging Of YSmarines Life Raft

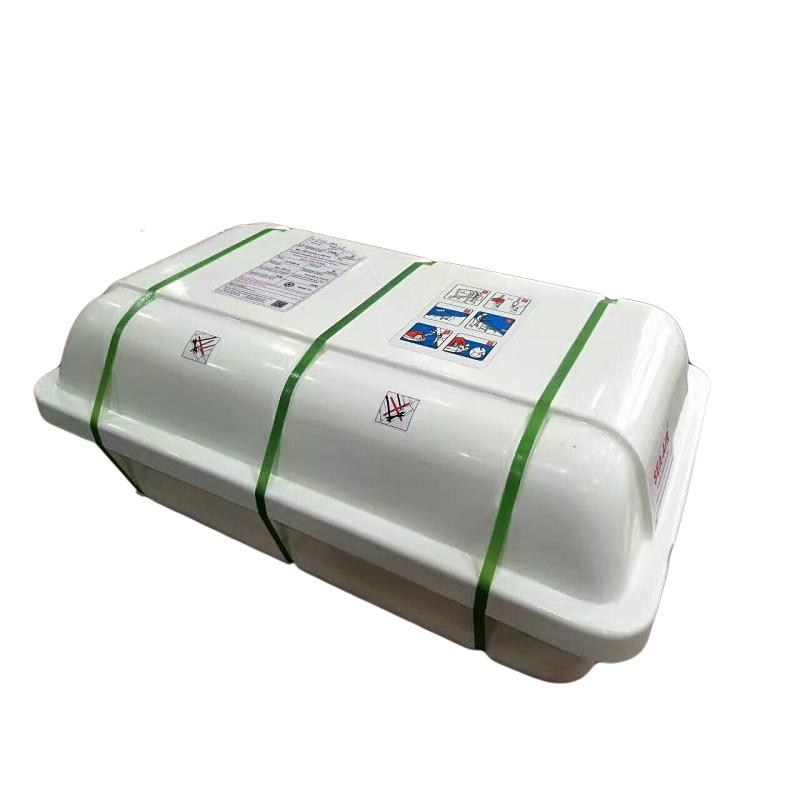

1. Generally, we pack our goods in neutral brown cartons or wooden frame cases, ensure that the goods are not damaged in transit. And the inside of the package is covered with a valise pack or white rigid pack.  On the outside of the box, the shipping mark will be marked to facilitate the customer to receive the goods.

2. We can also customize the packaging according to the customer’s requirements.

Applications Of Open Reversible Inflatable Life Raft

Applications Of Open Reversible Inflatable Life Raft

FAQ Of YSmarines Inflatable Life Raft

Q1: How long can I get a reply to my inquiry?
A: We will reply to you with your inquiry in 24 hours.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU, DDP.
Q4. How about your delivery time?
A: Generally, it will take 5 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
