Davit Launched Type Inflatable Liferaft Type D


  • The life raft is made of rubber nylon cloth, which can be folded and stored.
  • Have capacity to accommodate 15,16, 20, 25 persons.
  • It have a canopy. The floor shall be water tight.
  • Max. Storage height: The installation height is 18m-35m from water surface.

Davit Launched Type Inflatable Liferaft Type D

The davit launched liferaft is an inflatable type to hang life raft at ship side by launching equipment and go inboard from ship’s deck when inflating and to fall it down on the sea by davit. In case of failure in davit launching equipment, the life raft is also designed to be inflated automatically in the same way as throw-over type. It is widely used on passenger ships and cargo vessels due to its special effect. It has a capacity of 15-25 persons. It is equipped with a private free fall device and be lowered into the water by steel ropes. The installation height is 18m-35m from the water surface. YSmarines can supply customers with superb quality davit launched inflatable life raft with advanced materials.

Davit Launched Type Inflatable Liferaft Type D

Characteristics Of Inflatable Davit Launched Liferaft

The life span of liferaft is 10 ~ 15 years.
Have the capacity to accommodate 15,16, 20, 25 persons.
Have a canopy to protect occupants from exposure.
The floor shall be watertight and insulated from protection against cold water.
It is suitable for installing ships on international voyages.
Max. Storage height: The installation height is 18m-35m from the water surface.
A pack and B pack (ships engaged on the short international voyage)

nflatable Davit Launched Liferaft

Standards Of Type D Inflatable Liferaft

It meets the requirements of 《Regulations for the statutory surveys of ships and offshore installations》 “Technical regulations for the statutory surveys of sea-going ships engaged on international voyages (2004) ” of P.R.C. and SOLAS 74/96 amendment. LSA and MSC.(81)70.

Certificate Of Davit Launched Liferaft

China Classification Society (CCS)
Certificate of type approval.
Germanischer Llyod AG (GL)
EC Type Examination Certificate.

Davit Launched Liferaft



Type



Capacity



Length

(mm)



Width

(mm)



Height

(mm)



Container Dia.

(mm)



Container Length

(mm)

Weight (KG)

A PACK

B PACK

D15

15

3555

3380

1750

700

1300

≤170

≤135

D16

16

3555

3380

1750

700

1300

≤172

≤135

D20

20

4020

3825

1700

730

1550

≤190

≤145

D25

25

4370

3845

1800

730

1550

≤230

≤175

Accessory List Of Davit Launched Inflatable Liferaft

No

Name

Unit

Quantity







A Pack

B Pack

1

Ration

pk(0.5Kg)

1/Person

.

2

Fresh Water

pk(0.5L)

3/Person

3

Rocket Parachute Flare

PC

4

2

4

Hand-Held Flare Signal

PC

6

3

5

Floating Smoke Signal

PC

2

1

6

Thermal Protective Aid

PC

2

2

7

Sea Anchor

PC

2

2

8

Water-proof Flash

PC

1

1

9

Floatable Rescue Quoit

PC

1

1

10

First Aid Kit

PC

1

1

11

Radar Reflector

SET

1

12

Sunlight Signal Mirror

SET

1

1

13

Whistle

PC

1

1

14

Paddle

PC

2

2

15

Fishing Kit

SET

1

16

Bailer

PC

1~2

1-2

17

Sponge

PC

2

2

18

Drinking Measuring Cup

PC

1

19

Disposal Bag

PC

1/Person

1/Person

20

Survivor’s Manual

COPY

1

1

21

Bellows Inflator

PC

1

1

22

Floatable Knife

PC

1~2

1~2

23

Can-openers

PC

3

24

Seasick Pill

TABLET

6/Person

6/Person

25

Emergency Action Card

COPY

1

1

26

Operations Manual

COPY

1

1

27

Repair Fit

SET

1

1

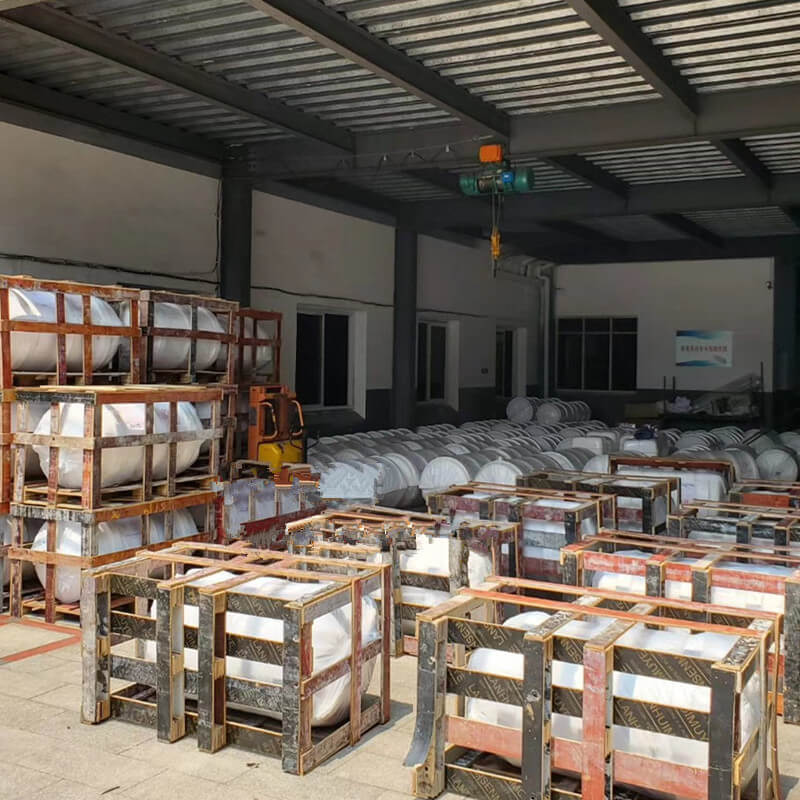

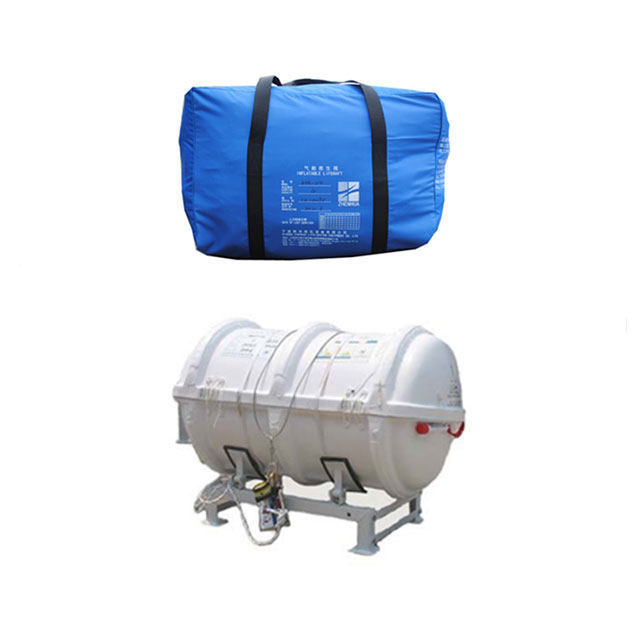

Packaging Of YSmarines Inflatable Life Raft

1. Generally, we pack our goods in neutral brown cartons or wooden frame cases, ensure that the goods are not damaged in transit. And the inside of the package is covered with a valise pack or white rigid pack.  On the outside of the box, the shipping mark will be marked to facilitate the customer to receive the goods.

2. We can also customize the packaging according to the customer’s requirements.

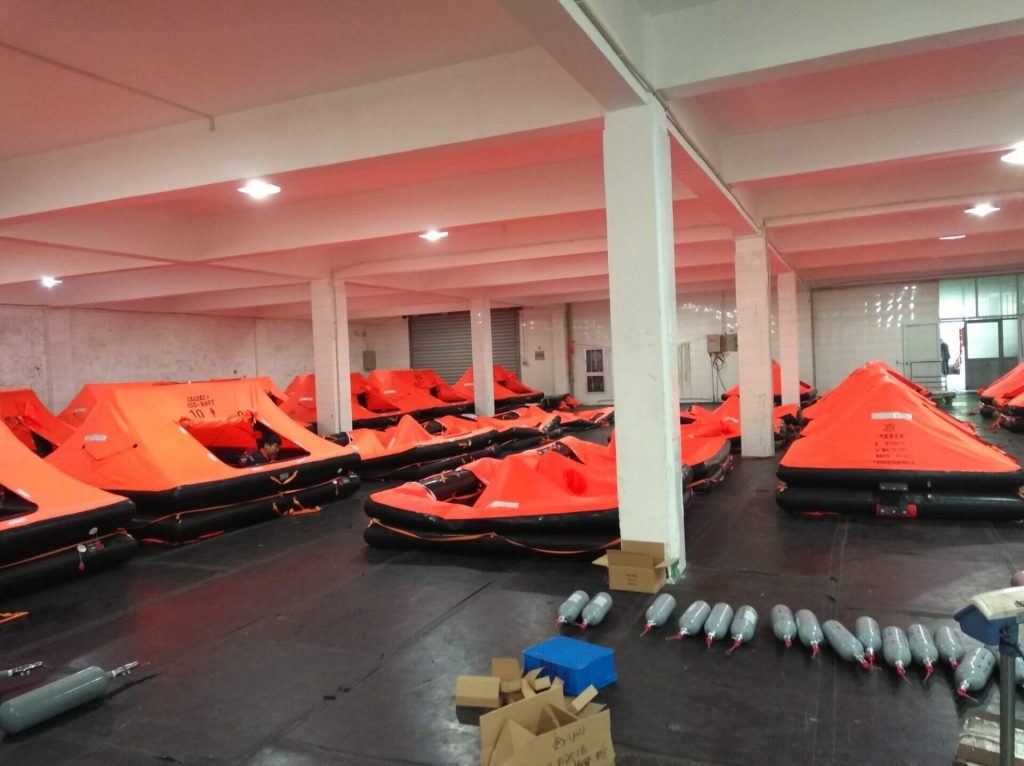

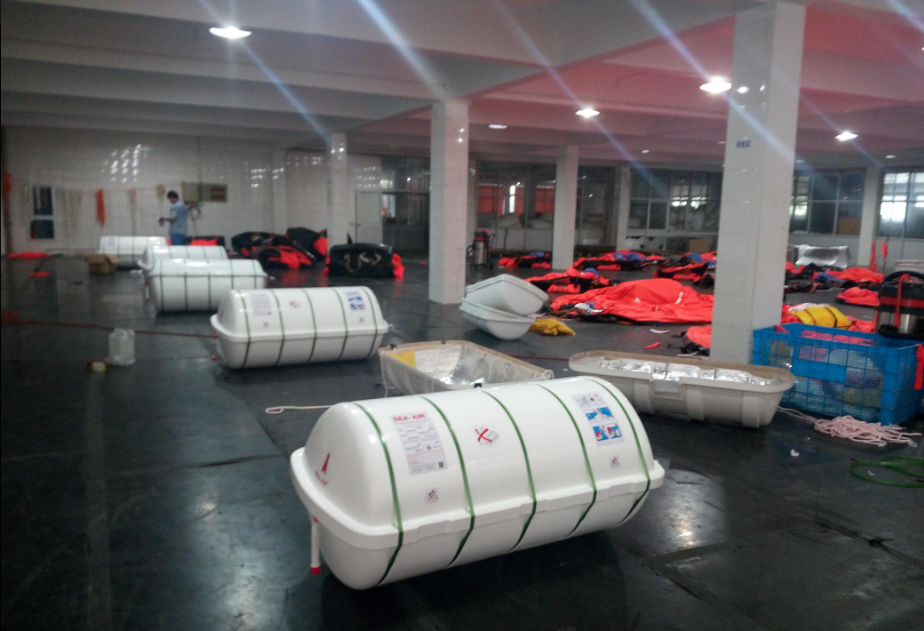

Workshop Of Davit Launched Inflatable Life Raft

FAQ Of YSmarines Davit Launched Inflatable Life Raft

Q1: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. By the way, The color and material of the chairs also can be customized.
Q2. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
Q3. How do you make our business long-term and a good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you have any questions about the problem, contact us, we will offer the solve way for you.
