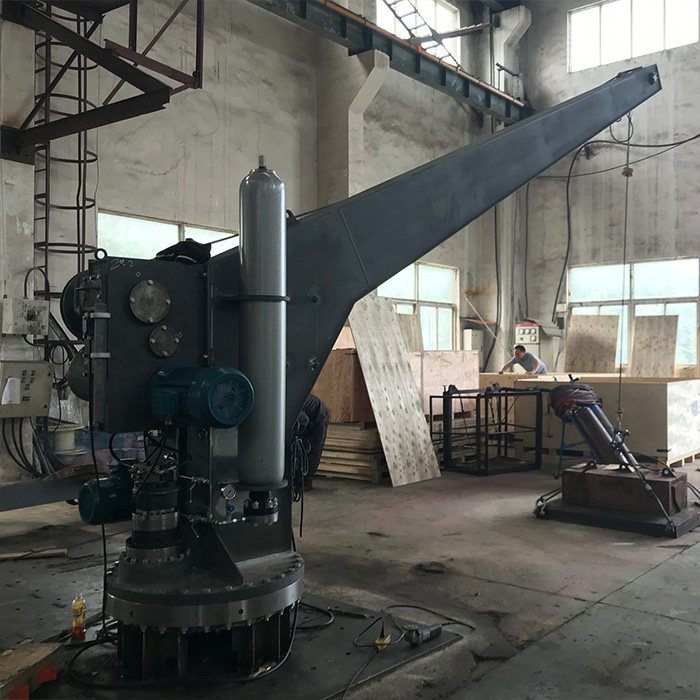

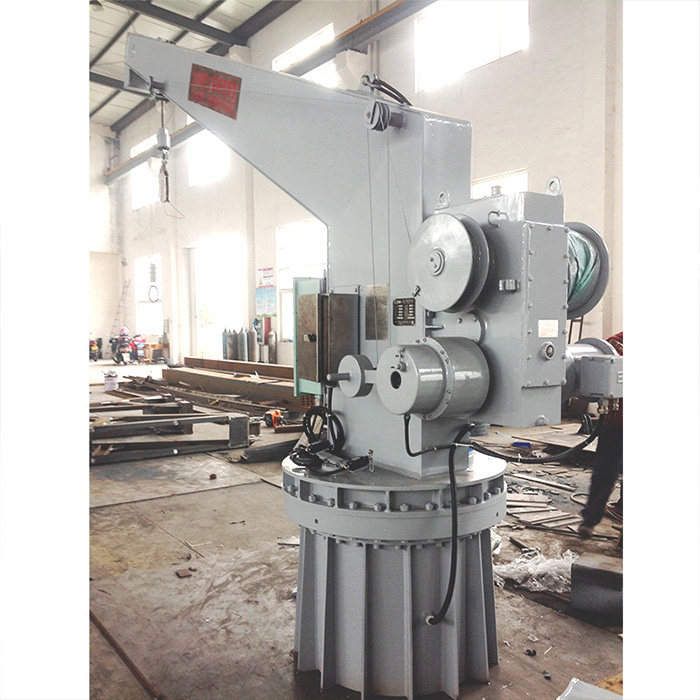

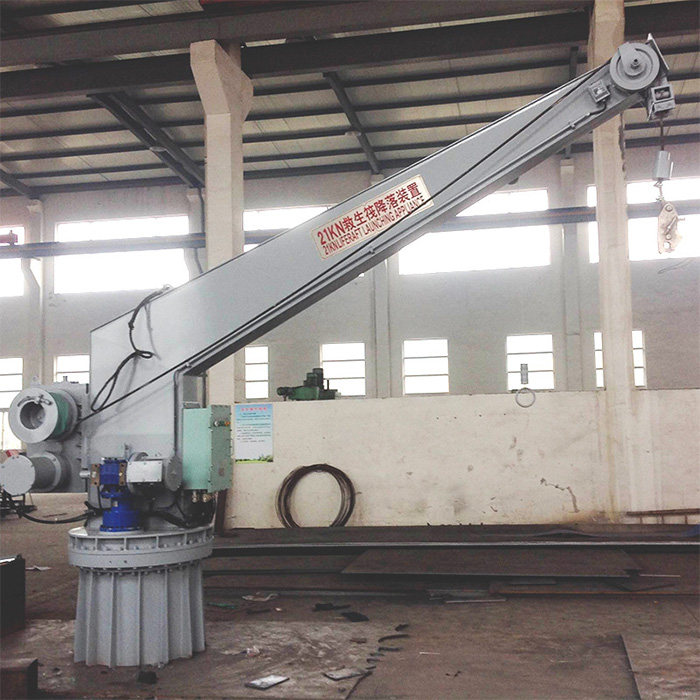

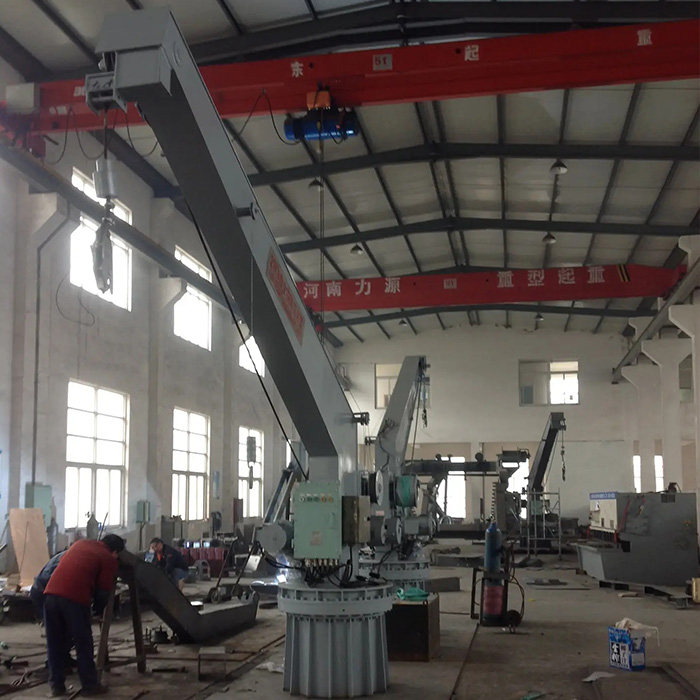

Single Arm Slewing Davit


  • Hoisting and lowering of the full loaded rescue boat and life raft up to 20o list and 10o
  • Retrieval of the rescue boat or life raft by manual hoisting.
  • Manual slewing by hand pump.
  • Provision function.

Product Introduction

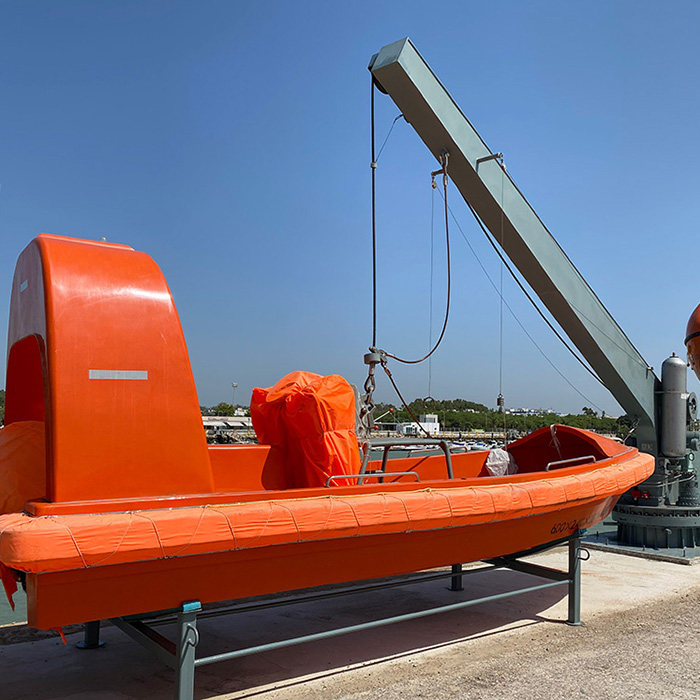

The single arm slewing rescue boat/ raft davit is specifically designed for safe and efficient launch and retrieval of rescue boats and life rafts. It can also be used as a provision davit or crane. Additionally, it is also can be used as a crane based on the client’s requirements. The davit is designed to achieve optimum performance in terms of safety and reliability and minimal maintenance levels. All selected equipment is chosen and installed to ensure the lowest possible emission of sound and for good access for service and repair.

The single arm slewing davit adopts the hydraulic force rotation type. It can land on the water surface by itself gravity and also operate under the circumstance of power failure to make the rescue boat or life raft beyond shipboard and pull the steel wire so that the winch hammer can control the lifeboat or raft landing and stop. Likewise, crews can also operate it on the platform. The winch adopts a motor-driving gearbox reduction organism and with a centrifugal speed limit and manual brake function. It meets the requirements of International Safety of Life at Sea 1974, IMO MSC. 81(70) and other latest regulations.

Technical Parameters:

MODEL

SWL (kn)

HOISTING LOAD (kn)

HOISTING SPEED (m/min)

ROTATION RADIUS (mm)

SAD21

21

14

≥18

3600-4500

SAD23

23

18

3600-5400

SAD30

30

30

4000-5400

Drawings of Single Arm Slewing Davit
